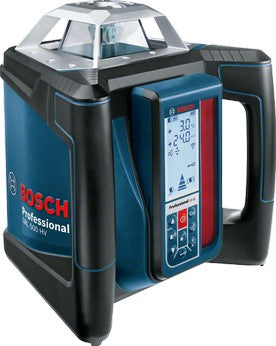

Bosch Blue GRL 500 HV Rotation Laser + LR 50 with Laser Receiver in Case
Bosch Blue GRL 500 HV Rotation Laser + LR 50 with Laser Receiver in Case
Regular price
€991,29 EUR
Regular price
€1.225,64 EUR
Sale price
€991,29 EUR
Unit price
/
per
Bosch Blue GRL 500 HV Rotation Laser + LR 50 with Laser Receiver in Case
Scope of supply:
- 1 piece GRL 500 HV Rotating Laser
- 1 piece Holder for LR 50 - 1 608 M00 C1A
- 1 pcs Storage bag for LR 50 Professional
- 1 pcs Fast charger for EU/UK - 1 608 M00 C1C
- 1 pcs Transport case GRL 500 Professional - 1 608 M00 C11
Special characteristics:
- The first rotation laser with theft protection for all leveling tasks.
- Theft protection: An alarm is triggered if the GRL 500 H/HV is moved during operation without LR 50 Professional.
- Calibration Reminder: Automatically displays the calibration requirement.
- Line Control: Align vertical line in vertical mode using the arrow keys as desired.
- Idle state: When the device enters the rest state, all settings are saved and the anti-theft protection as well as the Anti-Drift system remain in operation.
- Center Line Button: Automatically aligns laser beam to the center of the receiver and determines the slope value.
- Simultaneous charging: the Li-Ion batteries of both components are charged together in the shortest time.
- Slope function: Enter slope values directly and precisely via the LR 50 Professional Keypad.
- Anti-Drift System: Prevents leveling errors in case of vibration or shock.
- Relative height indication: distance between the laser beam falling on the receiving field and the center of the receiver.
Functions:
- Alarm
- Calibration
- Centering line
- Self leveling
- Clear display
- IP56
Technical data:
- Laser Diode: 635nm, < 1=">
- Working Temperature: -10-50℃
- Storage temperature: -20 - 70 °C
- Laser class: 2
- Working range with receiver: 500 m (diameter)
- Working range without receiver: 20 m (diameter)
- Leveling accuracy: ± 0.05 mm/m horizontal, ± 0.1 mm/m vertical
- Self-leveling range: ± 5.7° (10%)
- Leveling time: 15 s
- Dust and splash water protection: IP 56
- Rotational speed: 600 min-1
- Beam diameter: 5mm
- Electric power supply: 4 x 7.4 V Li-Ion
- Operating time, max.: 25 hours
- Tripod thread: 2 x 5/8
- Weight, approx.: 2.3 kg
- Length: 234mm
- Width: 217mm
- Height: 194mm
- Color laser line: red
- Projection: 1 x 360° line
