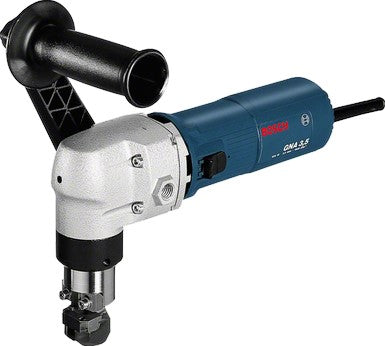

Bosch Blue GNA 3.5 Nibbler 620W 230V

Bosch Blue GNA 3.5 Nibbler 620W 230V

Scope of supply:

• 1 piece GNA 3.5 Nibbler 620W
• 1 piece Fixing bracket - 2 607 001 190
• 1 piece Additional handle - 2 602 025 075
• 1 pcs Allen key SW 4 - 1 907 950 005
• 1 piece Die - 2 608 639 026
• 1 pcs Stamp - 2 608 639 025

Special characteristics:

• The strongest from Bosch.
• 620 watt high tensile motor.
• Particularly suitable for rotation-free cutting of alloy steel and rust-resistant sheet steel.
• Long punch and die life ensures great cutting performance.
• Shut-off carbon element.
• Easy to work on drawing or template.
• Die holder adjustable to plate thickness, ensures vibration-free working.
• Die can be exchanged, stamp can be resharpened.
• Can also be handled well by left-handers.

Technical data:

• Machinable material: Steel up to 400 N/mm² at 3.5 mm
• Cutting track width: 6 mm
• Pre-drilling for recesses: 41 mm
• Smallest radius: 70mm
• Number of strokes, load: 670 min-1
• Number of strokes, freewheel: 1,000 min-1
• Weight: 3.5 kg
• Length: 292mm
• Height: 117mm
• Cutting capacity steel (400 N/mm²), max.: 3.5 mm
• Cutting capacity steel (600 N/mm²), max.: 2.4 mm
• Cutting capacity steel (800 N/mm²), max.: 1.6 mm
• Cutting capacity aluminum (200 N/mm²), max.: 4.0 mm

Electrical characteristic values
Voltage: 230V
Rated power consumption: 620 W
Output capacity: 340 W
