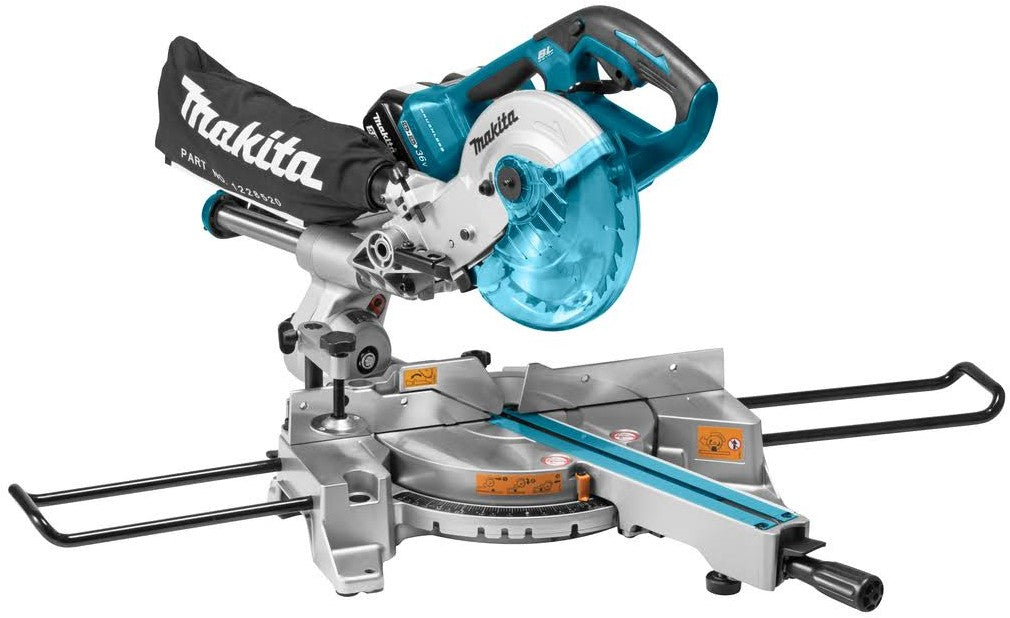

Makita DLS714PT2 Cordless Miter Saw 18V 5.0Ah Li-ion

Makita DLS714PT2 Cordless Miter Saw 18V 5.0Ah Li-Ion

Scope of supply:

• 1 piece DLS714PT2 Cordless Miter Saw 18V
• 1 piece Saw blade HM 190x2.2 24T Low-n
• 1 pcs Dust bag linen"
• 1 pcs Protection cap Li-ion battery
• 1 piece Adjustment angle
• 1 piece Table extender
• 1 pcs Material clamp
• 1 pcs Allen key 5.0mm
• 1 pcs Charger DC18RD
• 2 pieces Battery BL1850B 18V 5.0Ah Li-Ion

Special characteristics:

• Lightweight and compact telescopic miter saw on 2 x 18V batteries, ideal for installing parquet, garden terraces, false ceilings, etc.
• The innovative double telescopic movement provides a capacity of 52x300mm with a 190mm blade, without sacrificing precision.
• High-quality bearings of all four guide rods with a total of four linear ball bearings guarantee a smooth, but backlash-free running of the radial movement.
• Fully tiltable to the left for double miter cuts; also tilts 5° to the right for fitting work at non-right angles.
• Rotatable up to 45° left and 58° right, with click stops at 0°, 15°, 22.5°, 30° and 45° and additional indications for length/width ratios 1/10, 2/10 , 5/10, 7/10 , 8/10 and 9/10,
• Equipped with an electronic motor brake that brings the saw blade to a complete stop within half a second when the switch is released.
• Adjustable depth stop for cutting grooves, folds away for quick changeover to full cutting depth.
• Padlockable to prevent unauthorized use.
• Rubber feet prevent the machine from sliding on smooth work surfaces.
• The automatic speed control ensures the most efficient grinding at all times: the speed is automatically adjusted to the load, a high speed at low load and a lower speed with high torque at heavy load.
• LED warning lights give an indication of the battery capacity, but also warn if the current limiter is activated.
• This basic version comes without batteries and without charger, but is compatible with almost all other LXT 18V Li-Ion batteries. In this way you can expand your collection of Makita machines in a price-conscious way

Technical data:

• Saw blade diameter 190 mm
• Shaft lock yes
• Tilt L/R 45 - 5 °
• Miter L/R 45 - 57 °
• No-load speed 5700 min-1
• Sound pressure level (LpA) 88 dB(A)
• Dim. lxwxh 655x430x445 mm
• max. saw cap. (height) 45° 52 x 212mm
• max. saw cap. (height) 0° 52 x 300 mm
• Machine voltage 36V
• Motor type BL motor
• Weight 12 kg
• Protrusion 15 mm
• Battery protection yes
• Axle hole saw blade 20 mm
• Electric brake yes
• Sound pressure level (K) 3 dB(A)
• Weight with BL1815N battery 13.0 kg
• Weight with BL1820 battery 13.0 kg
• Weight with BL1820B battery 13.0 kg
• Weight with BL1840 battery 13.5 kg
• Weight with BL1840B battery 13.5 kg
• Weight with BL1850 battery 13.5 kg
• Weight with BL1850B battery 13.5 kg
• max. saw cap. (length) 0° 60 - 265mm
• max. saw cap. (length) 45° 60 - 185mm
• Soft grip yes
• Soft start yes
