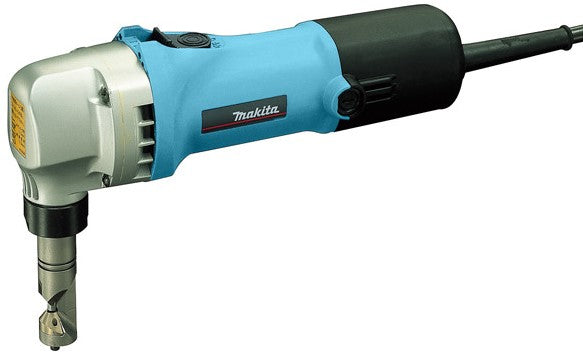

Makita JN1601 Nibbler 550W 230V

Makita JN1601 Nibbler 550W 230V

Scope of supply:

• 1 piece Makita JN1601 Nibbler
• 1 pcs Allen key 2.5mm
• 1 piece Spanner 32mm
• 1 pcs Stamp
• 1 pcs Die

Special characteristics:

• Light nibbler with a max. capacity of 1.6 mm in steel.
• Mold that can be rotated through 360° is extremely suitable for sheet piling and profiled sheets.
• Cutting of trapezoidal profile possible due to extra long die.
• Permissible cutting thickness measurable by measuring slot.
• Less waste and reworking because the cutting edges remain flat.

Technical data:

• Power consumption 550 Watt
• Inside edge 45 mm
• Outer edge 50 mm
• Cable length 2.0 m
• Sound pressure level (LpA) 83 dB(A)
• Dim. lxwxh 261x75x177 mm
• Weight (EPTA) 1.6 kg
• Cap. steel/stainless steel up to 400N/mm2 1.6
• Cap. steel/stainless steel up to 600N/mm2 1.2
• Cap. steel/stainless steel up to 800N/mm2 0.8
• Cap. alu/non-ferrous up to 200N/mm² 2.5
• Number of cutting movements 2200 min-1
• Sound pressure level (K) 3 dB(A)
• Vibration (K) sheet metal cutting 1.5 m/s²
• Vibration ah cutting sheet metal 7.0 m/s²
• Volts (voltage) 230 V
