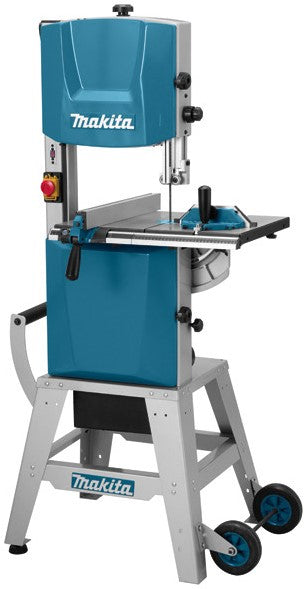

Makita LB1200F Band Saw Machine

Makita LB1200F Band Saw Machine

Scope of supply

• 1 piece Makita LB1200F band saw machine
• 1 pcs Pressure plate JM21010004
• 1 pcs Longitudinal guide JM21080230
• 1 piece Saw tape 2240x6mm 6T JM21080294
• 1 piece Saw tape 2240x13mm 4T JM21080295
• 1 piece Miter gauge JM21080260
• 1 piece Push spoon JM21080290
• 1 piece Saw tape 2240x16mm 4T JM21080296
• 1 piece Saw tape 2240x16mm 14T JM21080297
• 1 piece Dust extraction adapter JM21080293
• 1 pcs Allen key 4.0 mm 783202-0
• 1 pcs Allen key 5.0 mm 783203-8

Characteristics

• Band saw machine with very reliable induction motor.
• Supplied as standard with a mobile undercarriage.
• Safe due to anti restart function.
• With built-in lighting for a better view of the workpiece.
• Easy to change saw bands thanks to the quick-change system.
• Optionally available: extension table (JM21000300).
• Optionally available: circle guide (JM21000320).

Technical data

• Dim. LxWxH: 615x775x1600 mm
• Dim. Table: 560 x 400mm
• Saw band width: 6 - 16 mm
• Band saw thickness: 0.5 mm
• Passage width: 305 mm
• Sound pressure level (K): 3 dB(A)
• Sound pressure level (LpA): 81 dB(A)
• Weight (EPTA): 81.2 kg
• Restart protection: yes
• Built-in lighting: yes
• Cable length: 2.5 m
• Tilt L/R: -2 / 45 °
• Saw blade length: 2240 mm
• max. saw cap. wood 0°: 165 mm
• Power consumption: 900 watts
• No-load speed (position 1): 400 min-1
• No-load speed (position 2): 800 min-1
• Volts (voltage): 230 V
• Sawing speed 1: 400 m/min
• Sawing speed 2: 800 m/min
