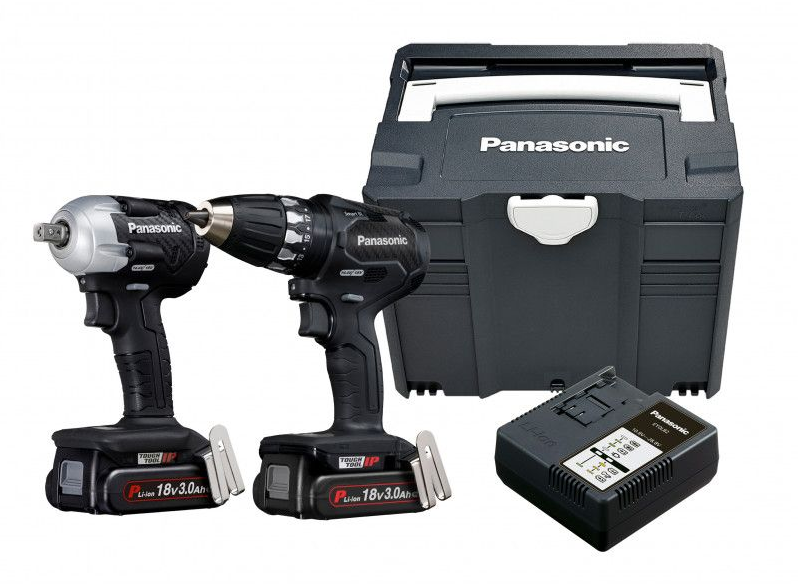

Panasonic EYC232PN2G Combi set 18V 3.0Ah Li-ion
Scope of supply- 1 piece Panasonic EY74A3X Cordless Drill Driver 18V
- 1 piece Panasonic EY75A8X Cordless Impact Wrench 18V
- 2 pieces Panasonic EY9L53B Battery 18V 3.0Ah Li-ion
- 1 piece Panasonic EY0L82B Fast charger
- 1 piece Panasonic Systainer with inlay
Special features Panasonic EY74A3X
- Ultra compact machine of 189 mm for greater ease of use
- Smaller and lighter batteries 18V 3.0Ah Li-Ion EY9L53B
- Powerful compact battery with excellent performance
- New design powerful brushless motor
- New 'speed control'
- Electronic speed control
- Electric brake
- Belt hook
- led light
Special features Panasonic EY75A8X
- New generation 18V Tough Tool IP56"" impact wrench with a very high variable adjustable torque of 50/140/280 Nm.
- Due to its ergonomic design and low weight, the Panasonic EY75A8X fits perfectly in the hand.
- By using the specially developed brushless motor, the average life of this machine is doubled compared to a brush motor.
Technical data Panasonic EY74A3X
- Voltage 18V / 14.4V
- Capacity according to IEC standard (technology) 5.0Ah - 3.0Ah (Li-Ion)
- Charging time (useful / full charge) 5.0Ah 65 / 80 4.2Ah 55/75 min. 3.0Ah 45 / 60 min.
- No-load speed in rpm (rpm) low 20 - 480 high 70 - 1,580
- Maximum torque (screws in soft / hard material) 32 / 50 Nm
- Clutch torque 0.5 - 4.4 Nm
- Possible couples 18 + drill setting
- max. drilling diameter (wood / metal) 38 / 13 mm
- max. hole saw size (wood / metal) - / 33 mm
- Dimensions (wxlxh) 68 x 189 x 246 mm
- Weight (incl. battery) 5.0Ah 2.0kg.
Technical data Panasonic EY75A8X
- max. 18V torque 50Nm. (low), 140 Nm. (medium), 280 Nm. (high).
- max. 14.4V torque 50 Nm. (low), 140 Nm. (medium), 240 Nm. (high).
- No-load speed : 0-2,300 rpm (high)
- Longlife brushless motor.
- Weight (including battery) 1.8 kg.
- Dimensions (lxhxw) 143x249x73mm.
- 1/2"""" inch square recording.
- LED-lighting.
- Belt hook.
