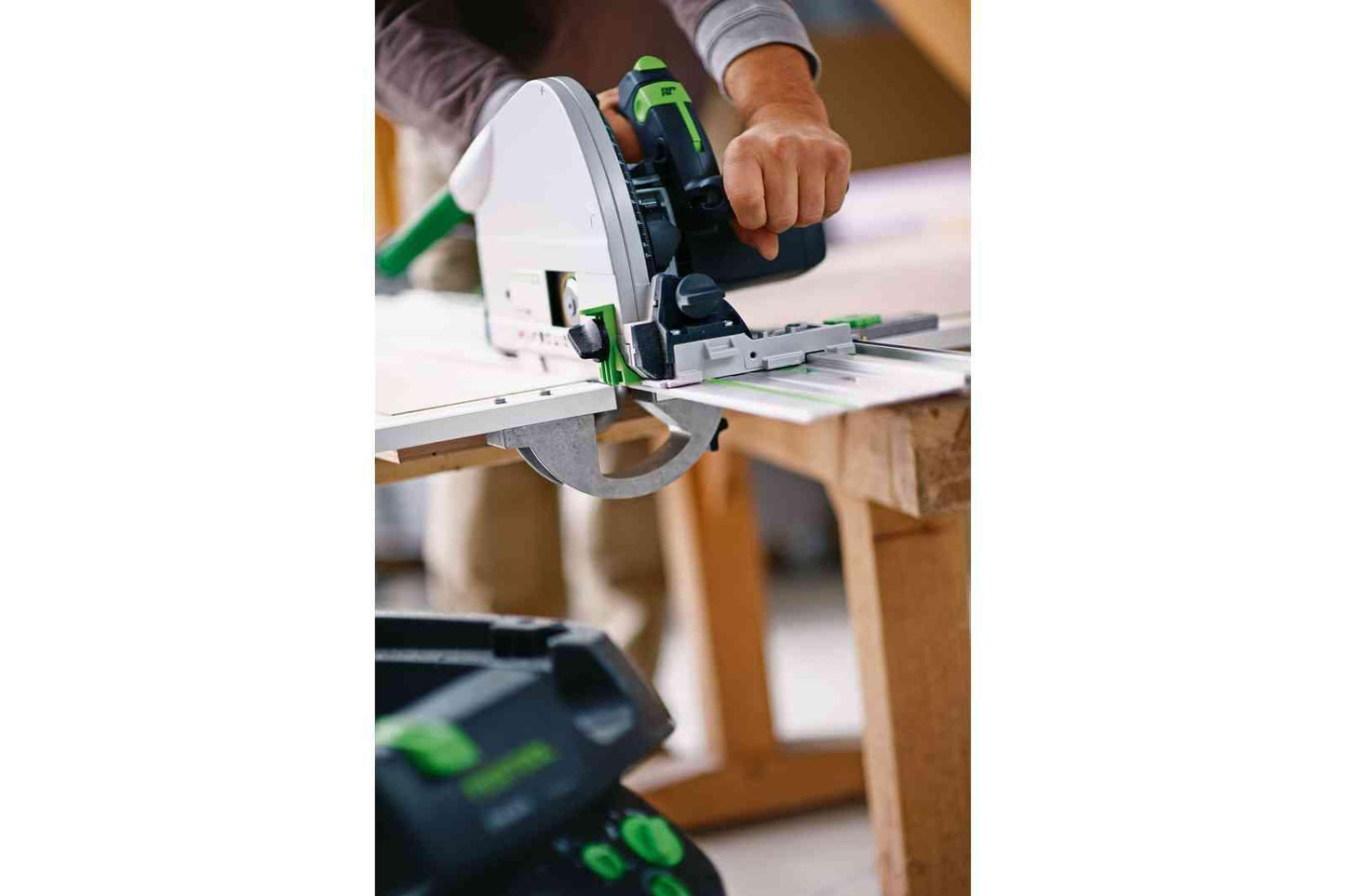

TS 75 EBQ-Plus-FS Plunge circular saw in Systainer with FS 1400/2 guide rail - 576115

For more cutting depth up to 75 mm. Accurate down the line. Precise to the millimeter and splinter-free. With the necessary power for any material, yet light and easy to handle. With a triple bearing motor including MMC electronics for an exceptional service life. In addition, the TS 75 combines a lot of power and light handling in one compact machine. In combination with the guide rail, the TS 75 enables flexible, fast and precise work.

• Spring loaded riving knife for unobstructed plunge cuts
• Adjustment of the clearance on the guide rail without tools
• Quick brake for safe and comfortable working
• FastFix for quick and easy saw blade changes and work tailored to the material
• Detachable splinter guard for high-quality work results

Features and strengths

• Precise plunge cuts up to a material thickness of 75 mm
• Perfect fit for house doors - guide rail with plunge-cut saw
• Sawing and processing of veranda profiles
• Cut cable trays cleanly and easily
• Saw partitions of desks safely
• Processing of sandwich panels in hall construction

Technical features

• Anti-static function: mobile vacuum cleaners and machines with anti-static function against static charge when working.
• Splinter guard: the patented splinter guard for low-splinter sawing on both sides
• Guide system : patented guide system for safe guidance of sawing and milling tools
• Plug it : detachable and interchangeable power cord with safety lock for quick conversion
• MMC Electronica Multi-Material-Control: Modern power electronics "Multi-Material Control" with adjustable, constant speed and temperature monitoring for material-specific work.
• FastFix: facilitates tool changes when routing, sawing, planing, sanding, drilling and screwdriving.
• CLEANTEC: integrated bayonet connection as a connecting element between the vacuum cleaner and tool.
• Quick brake: for safe working when planing, sawing and routing.

Technical data

• Drive type: Mains power
• Power consumption: 1600 W
• No-load speed: 1350 - 4400 min⁻¹
• Saw blade diameter: 210 mm
• Angle range: 0 - 47 °
• Cutting depth: 0 - 75 mm
• Cutting depth at 45°: 55 mm
• Dust extraction connection: Ø 27/36 mm
• Weight: 6.2 kg
