Bosch Blue GPL 5 Point Laser 30m in Protective Bag - 0601066200

Bosch Blue GPL 5 Point Laser 30m in Protective Bag

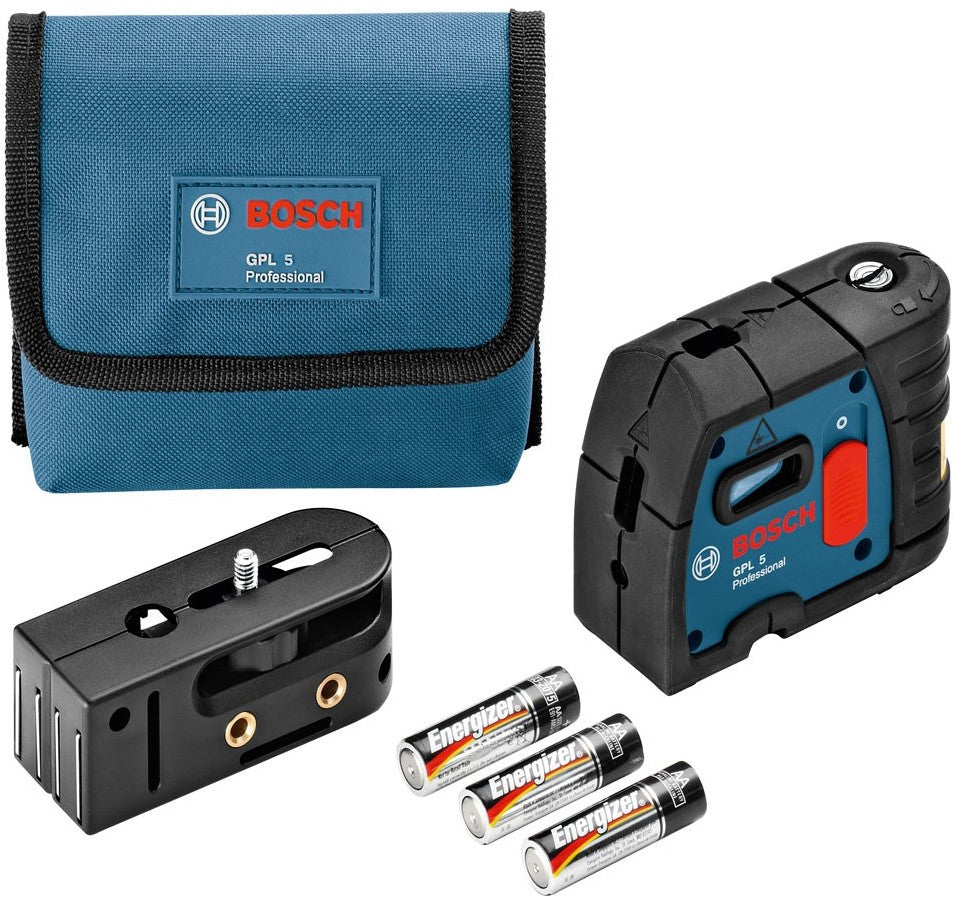

Scope of supply:

• 1 piece Bosch Blue GPL 5 Point Laser 30m
• 3 pieces of 1.5 V batteries
• 1 pcs. Multifunctional holder (ET no. 1 618 C00 465)
• 1 pcs Protective bag

Special characteristics:

• Very compact 5-point laser - for easy transfer of right angles.
• Self-levelling 5-point horizontal and plumb laser for indoor work.
• For precise transfer of right angles and reference points from the floor to the ceiling.
• Working range up to 30 m.
• Dust and splash water protection: IP 5X.
• Easy handling due to its very compact size.
• Versatile mounting options with universal holder.
• High leveling accuracy ± 0.3 mm/m.

Functions:

• Laser class 2

Technical data:

• Laser Diode: 635nm, < 1=">
• Working Temperature: -10-40℃
• Storage temperature: -20 - 70 °C
• Laser class: 2
• Working range: 30 m
• Leveling Accuracy: ±0.3mm/m
• Self-leveling range: ± 5° longitudinal axis, ± 3° transverse axis
• Leveling time: 4 s
• Dust and splash water protection: IP 5X
• Beam diameter: 5 mm on device
• Electrical supply: 3 x 1.5 V LR6 (AA)
• Operating time, max.: 24 h
• Tripod thread: 1/4, 5/8"
• Weight, approx.: 0.25 kg
• Length: 104mm
• Width: 40mm
• Height: 80mm
• Projection: 5 points
