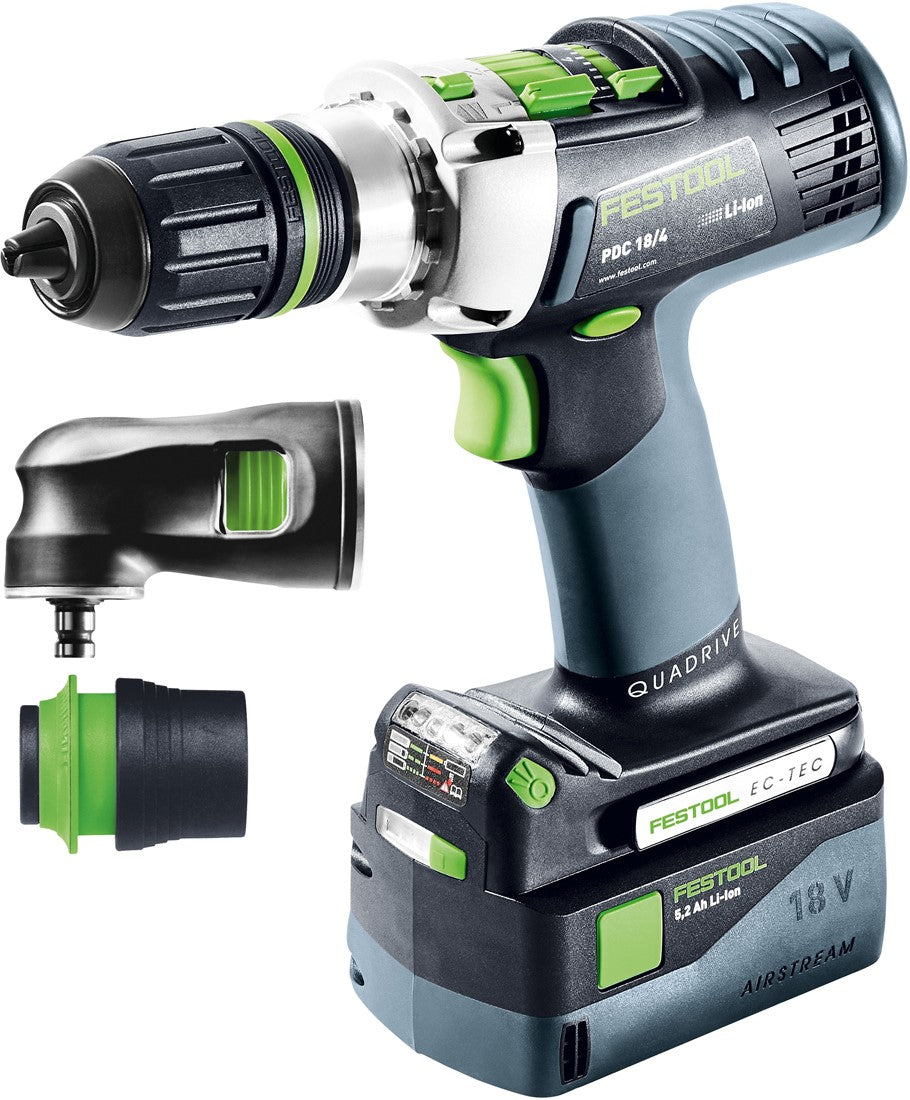

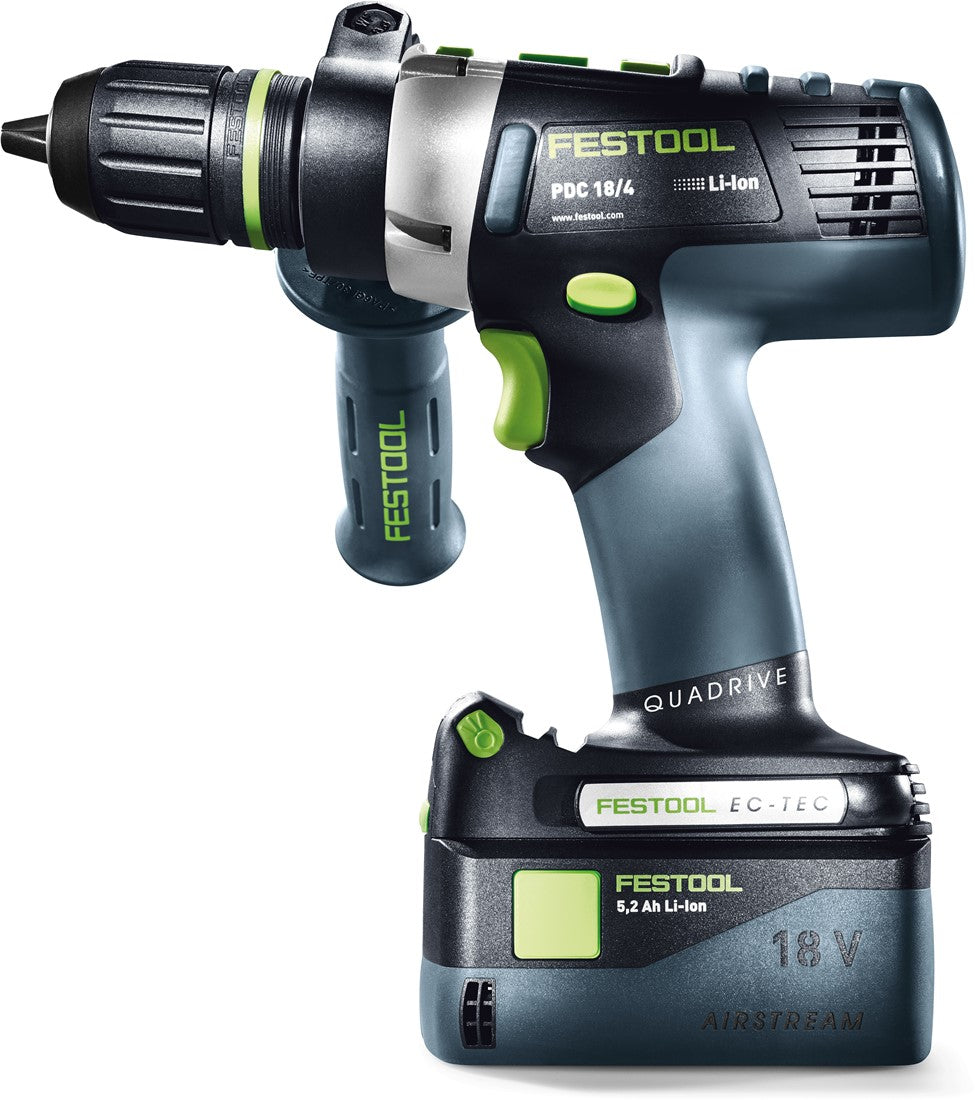

Festool PDC 18/4 5.2/4.0 I-Set-SCA QUADRIVE Cordless impact drill 576468

Festool Cordless Impact Drills PDC 18/4 5.2/4.0 I-Set-SCA QUADRIVE

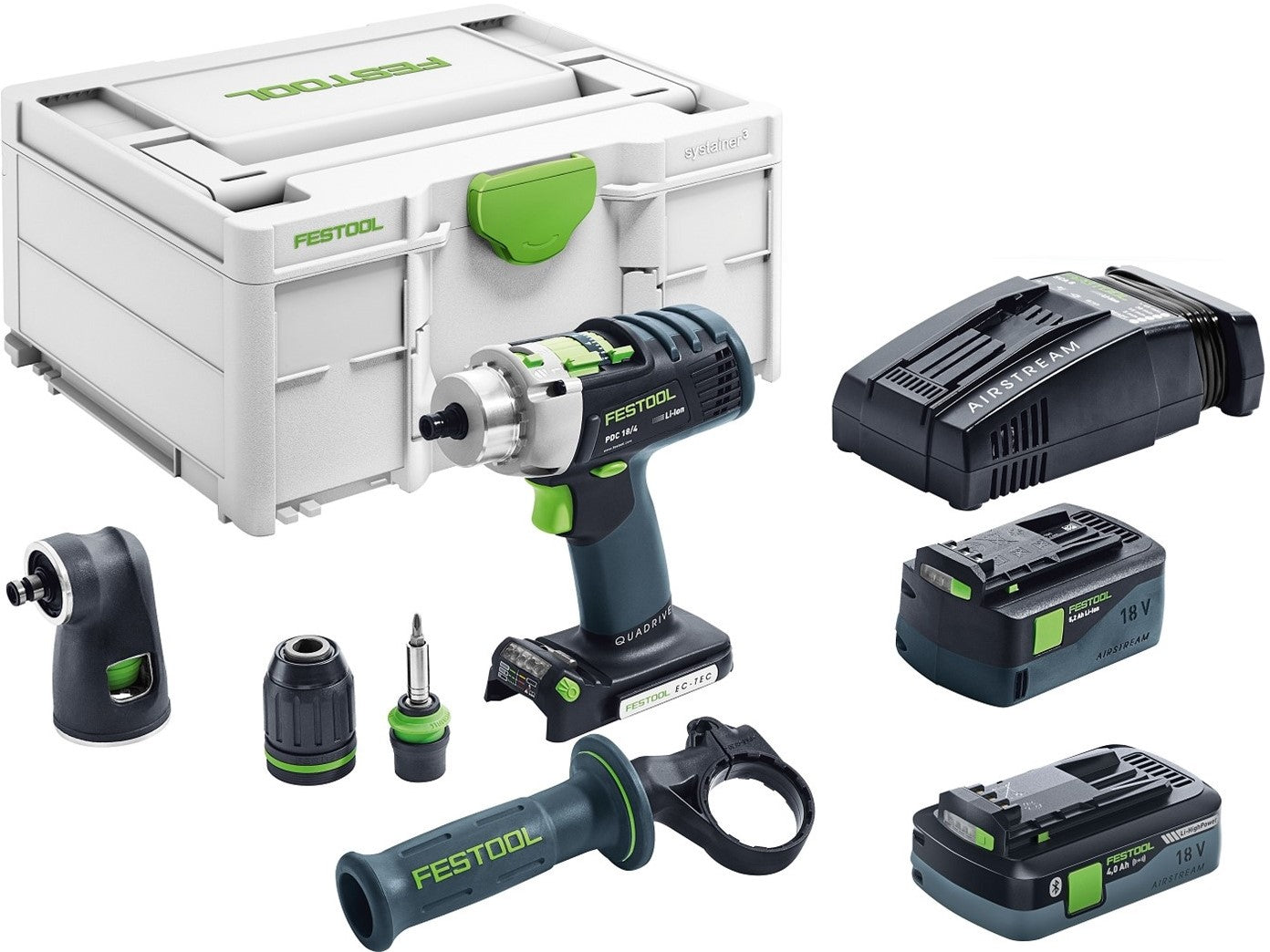

Scope of supply

• 1 piece Festool PDC 18/4 cordless impact drill
• 1 piece Festool battery pack BP 18 Li 4.0 HPC-ASI
• 1 piece Festool battery BP 18 Li 5.2 AS
• 1 piece Festool quick charger SCA 8
• 1 piece CENTROTEC tool holder
• 1 piece CENTROTEC magnetic bit holder BH 60 CE
• 1 pcs FastFix 13 mm keyless chuck
• 1 pcs bit PZ 2
• 1 piece handle
• 1 pcs corner attachment
• in Systainer SYS3 M187

Special characteristics

• Powerful for screwdriving and drilling work with large diameters.
• Maximum power: thanks to the extremely powerful, brushless and thus durable EC-TEC motor.
• Robust: indestructible metal gear with 4 gears.
• For even more application options: switchable impact function for drilling in masonry.
• With 4 gears for every work situation: from screwdriving with 60 Nm torque in 1st gear to precise drilling with 3800 rpm in 4th gear.
• Versatile: change quickly and without tools thanks to FastFix connection for drilling, screwdriving, angle drilling and angle screwdriving.
• Flexible battery system: For applications with high power requirements, the 4.0 Ah Li-HighPower Compact battery pack provides the ideal combination of power, compactness and convenience.
• For even more power, the 5.2 Ah battery pack is the right choice for particularly heavy drilling and screwdriving applications.
• Naturally, the extensive services of the Festool SERVICE also apply to the battery pack.
• Comfortable: optimum illumination of the work area through switchable LED lighting.
• Mobile: Packaged in the Systainer³, the QUADRIVE can be perfectly integrated into bott van racking for easy transport from the workshop to the construction site
• Systainers³ are mutually compatible and connectable with all previous Systainer generations, mobile dust extractors and many more system accessories such as the Systainer trolley or the mobile workshop

Centers of gravity for the applications

• Making wooden substructures, frame constructions.
• Installation of doors and windows.
• Drilling and screwdriving in wood, metal and plastic.
• Screwing into wood up to 10x300 mm.
• Drilling in wood up to 50 mm with brush drills

Technical data

• Battery voltage 18 V
• Gears 4
• Unb. speed 1st/2nd gear 0 - 400/0 - 850 min?¹
• Unbel. speed 3rd/4th gear 0 - 1850/0 - 3800 min?¹
• max. stroke frequency 76000 min?¹
• Drill diameter wood/steel 50/13 mm
• Drill diameter in masonry (brick) 10 mm
• Torque setting 1st / 2nd gear 1.2 - 11.5/0.8 - 7.2 Nm
• max. torque wood/steel 40/60 Nm
• Chuck width 1.5 - 13 mm
• Battery capacity Li-ion 4.0/5.2 Ah
• Weight with Li-ion 1.8/2 kg
