Makita DLX2274JX1 Combiset 2x18V Li-ion with AWS DSP601 Plunge saw in Mbox + DVC864L Vacuum cleaner + Guide rail in bag

Makita DLX2274JX1 Combi Set 2x18V Li-Ion with AWS DSP601 Plunge Saw in Mbox + DVC864L Vacuum Cleaner + Guide Rail in Bag

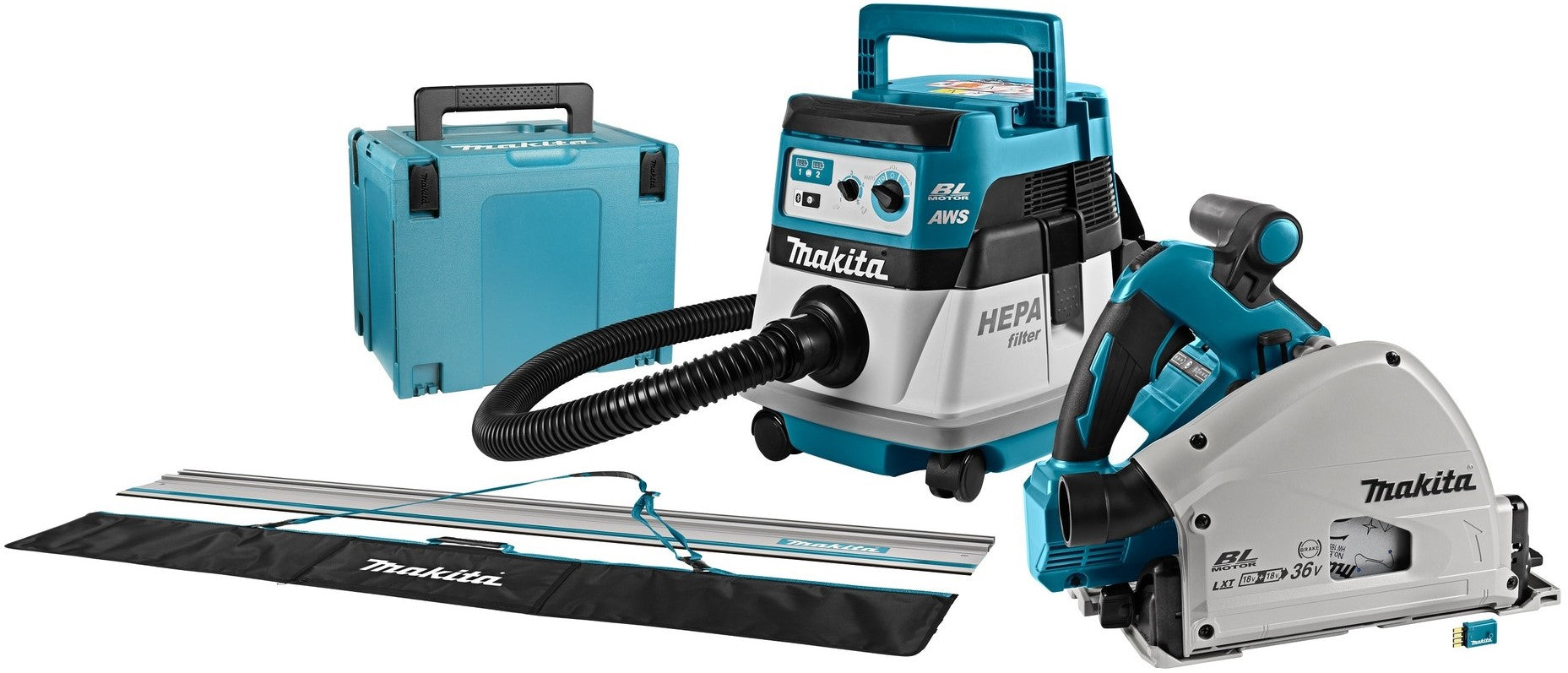

Scope of supply

• 1 piece Makita DSP601 plunge saw
• 1 piece Makita DVC864L vacuum cleaner
• 1 piece Guide rail 1400mm 194368-5
• 1 pcs Bag for guide rail B-57613
• 1 piece Mbox No.4 821552-6
• 1 piece Saw blade Efficut 165x20x1.45 56T 23g B-57364
• 1 pcs Allen key 5.0 mm 783203-8
• 1 pcs Suction hose 28x3500mm 195433-3
• 1 pcs Foil bag plastic" 195432-5
• 1 piece Hose adapter 22mm [Machine] 417765-1
• 1 piece Adapter 24 mm 424379-9
• 1 pcs Suction hose 38x2500mm 195434-1
• 1 piece Universal squeegee 122512-4

Note without batteries and charger.

Characteristics

• DSP601: Continuous fast and efficient plunge cuts thanks to automatic speed control.
• DVC864L: Good suction power and long working time thanks to brushless motor.
• Guide rail (194368-5): Enables parallel cutting over longer lengths: 1400 mm.
• Supplied as standard with carrying bag for easy transport guide rail.
• Interchangeable with all 18 V Makita LXT batteries, e.g. BL1850(B), BL1840(B), BL1830(B)

Specifications DSP601

• max. saw cap. (height) 0°: 56mm
• max. saw cap. (height) 45°: 40mm
• Volts (voltage): 36 V
• Engine type: BL engine
• Dim. LxWxH: 348x241x272 mm
• Saw blade diameter: 160 - 165 mm
• No-load speed: 2500 - 6300 min-1
• Shaft lock: yes
• Weight with BL1830 battery: 5.1 kg
• Sound pressure level (LpA): 92 dB(A)
• Sound pressure level (K): 3 dB(A)
• Vibration ah sawing wood: 2.5 m/s ²
• Vibration (K) sawing wood: 1.5 m/s ²
• Battery protection: yes
• Axle hole saw blade: 20 mm
• Constant speed: yes
• Electric brake: yes
• Tilt L/R: -1 / 48 °
• Protective cover material: Aluminium
• Sole material: Magnesium
• max. saw cap. 48°: 38mm
• Soft grip: yes
• Soft start: yes
• Var. speed control (rotary knob): yes
• Vibration (K) aluminum cutting: 1.5 m/s ²
• Vibration ah aluminum sawing: 2.5 m/s ²
• Cutting height: 56 mm

Specifications DVC864L

• Air displacement: 2100 l/min
• Air volume: 72 - 126 m³/h
• Vibration ah no load: 2.5 m/s²
• Vibration (K) no load: 1.5 m/s²
• Sound pressure level (LpA): 70 dB(A)
• Dim. lxwxh: 366x334x368 mm
• Cap. fabric: 8 l
• Sound pressure level (K): 2.5 dB(A)
• Weight with BL1850B battery: 8.4 kg
• Negative pressure: 98 mbar
• Tool life high (BL1850/B): 00 : 40 hours
• Dust class: L
• Engine type: BL engine
• Var. speed control (rotary knob): yes
• Volts (voltage): 36 V
