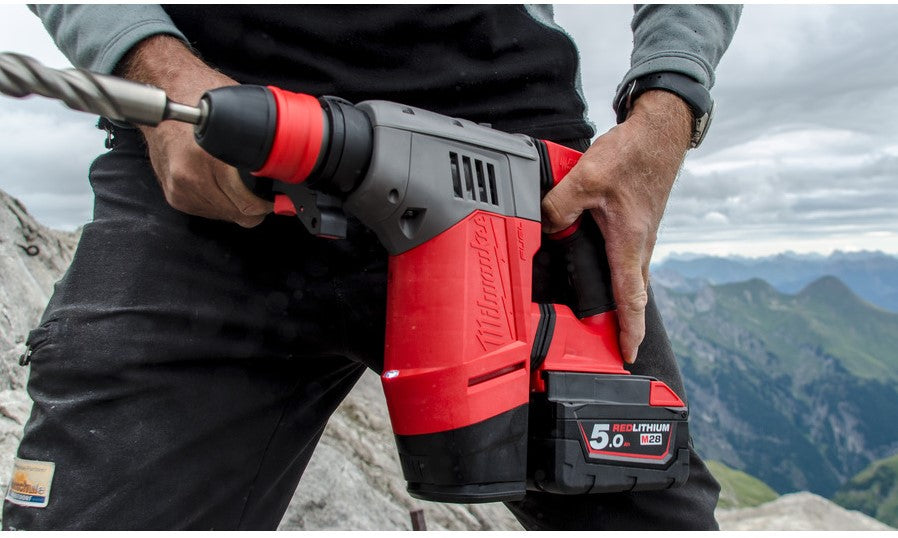

Milwaukee M28 CHPX-502X Cordless Hammer Drill SDS+ 28V 5.0Ah Li-Ion M28 FUEL™ in case- 4933448015

Milwaukee M28 CHPX-502X M28 FUEL™ Rotary Hammer SDS+ 28V 5.0Ah Li-Ion in Case- 4933448015

Scope of supply

• 1 pcs M28 CHPX-502X M28 FUEL™ Rotary Hammer SDS+
• 1 pcs Side handle
• 1 piece depth gauge
• 1 piece 13mm FIXTEC drill chuck
• 1 piece Drill Grease
• Supplied in transport case

Special characteristics

• MILWAUKEE® designed and manufactured brushless POWERSTATE™ motor
• REDLINK PLUS™ intelligence system delivers advanced digital overload protection for both tool and battery, maintaining tool performance (even under load)
• REDLITHIUM™-ION battery offers superior battery construction, electronics and fade-free performance for extended run time and more work per battery life
• High-performance motor - delivers the same performance as a corded hammer drill
• Hardest hitting cordless SDS-plus hammer in its class. Powerful hammer mechanism for 4.1 J impact energy at a low vibration level of only 8.1 m/s² thanks to new double anti-vibration system
• Full metal gear housing - optimum gear bearing for superior durability
• 4 modes: drilling, impact drilling, hammering and variolock for maximum versatility
• FIXTEC™ quick change system - quick and easy change of drill bits, without additional tools
• Individual battery cell monitoring to optimize run time and durability of both machine and battery
• Built-in fuel gauge - indicates remaining battery run time
• Suitable for M18-28 CPDEX dust extraction system
• *Patent application pending

Technical data

• Drilling capacity in concrete (mm): ø 7 - 24
• Weight, incl. battery (kg): 4.7
• Charger included: 90 minutes
• max. drill Ø in concrete (mm): 28
• max. drill Ø in wood (mm): 30
• max. drill Ø in steel (mm): 13
• max. drilling wood/steel/concrete (mm): 30/ 13/ 28
• max. stroke rate (per min): 0 - 5000
• No-load speed (rpm): 0 - 1350
• Impact energy (EPTA) (J): 4.1
• Voltage (V): 28
• Battery type: Li-ion
• Chiseling vibration level, estimate (m/s²): 1.5
• Vibration level during drilling (m/s²): 8.1
• Sound pressure level (dB(A)): 92.7
• Sound pressure level, estimate (dB(A)): 3.0
• Sound power level, measured (dB(A)): 103.7
• Sound power level, measured, estimated (dB(A)): 3.0
• Vibration level when drilling in concrete (m/s²): 8.1
• Vibration level when drilling in concrete, estimate (m/s²): 1.5
