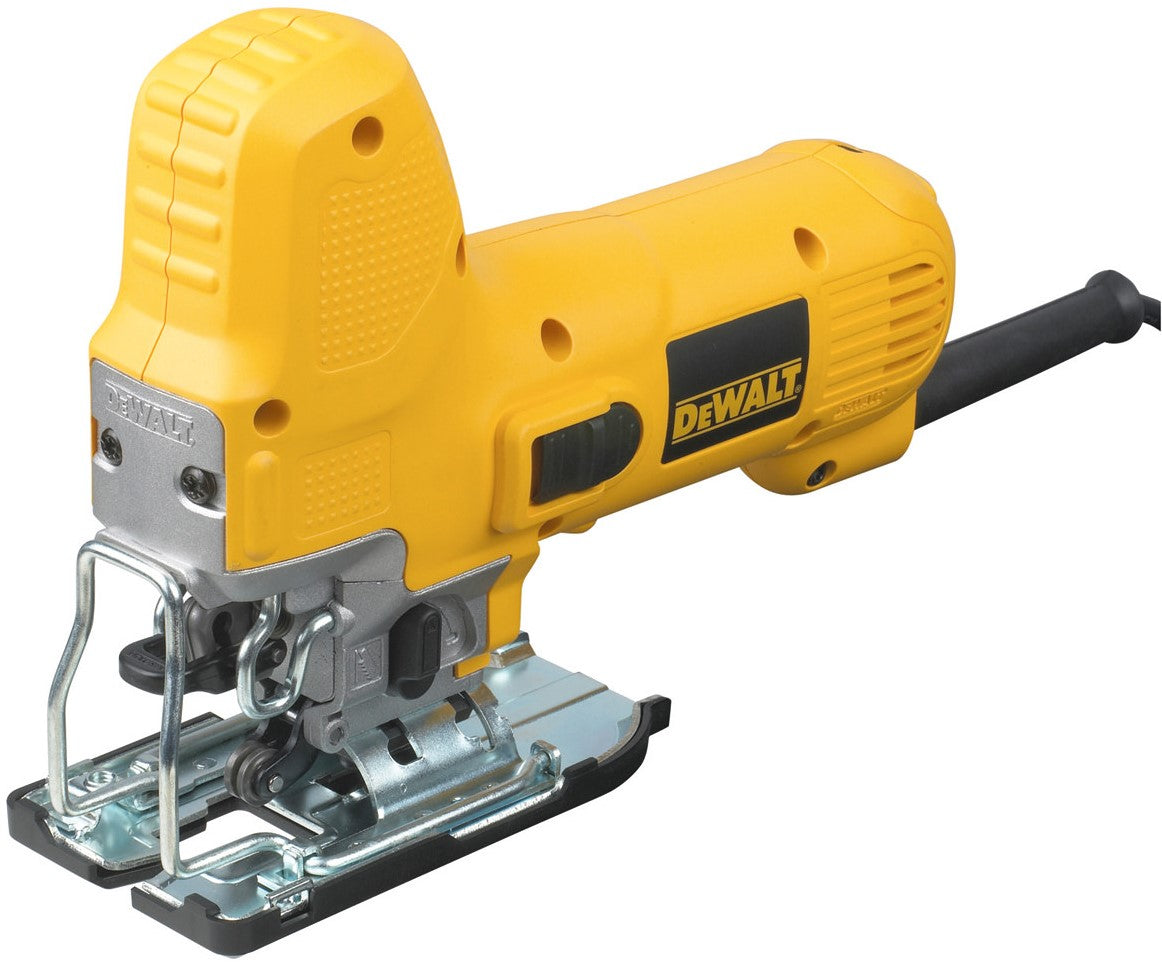

DW343K Jigsaw 550W

Scope of supply

• 1 pcs Saw blade
• 1 pcs Allen key
• 1 piece Anti-Scratch sole
• 1 pcs Dust extraction adapter
• 1 pcs Dust extraction shield
• 1 piece Sturdy Carrying Case

Special characteristics

• Very comfortable compact and handy ergonomic design for versatile use
• Powerful and durable 550 Watt motor with a lot of reserve power
• Keyless blade changing system with patented anti-deflection clamp design for ease of use and precision
• Variable speed, adjustable with an adjusting wheel and the switch, for controlled cutting in all materials
• Adjustable pendulum saw stroke for better cutting performance and longer saw blade life
• Integrated sawdust blower for a clear view of the cutting line
• Base can be tilted to both sides with fixed stops at 0 and 45° for precise chamfering
• Low profile dust extraction shield and two-way dust extraction adapter for clean and efficient cutting
• Sturdy steel sole with anti-scratch coating and removable anti-scratch sole
• Can be used in combination with a side guide and a circle guide
• To be used with special saw blade to cut up to the edges (ref. DT2074)

Technical data

• power consumption: 550 watts
• max. cutting capacity (wood): 85 millimeters
• saw stroke length: 20 millimetres
• bevel capacity: 45 degree angle
• length: 250 millimeters
• sound power: 87 decibels a-weighted.
• height: 185 millimeters
• sound pressure: 98 decibels a-weighted.
• weight: 2 kilograms
• number of strokes without load: 650-3100 per minute
• power output: 350 watts
• max. cutting capacity (steel): 10 millimeters
• hand/arm vibration - wood: 7.4 acceleration/deceleration
• max. cutting capacity (non-ferrous metals): 20 millimeters
• hand/arm vibration - steel: 7.8 acceleration/deceleration
