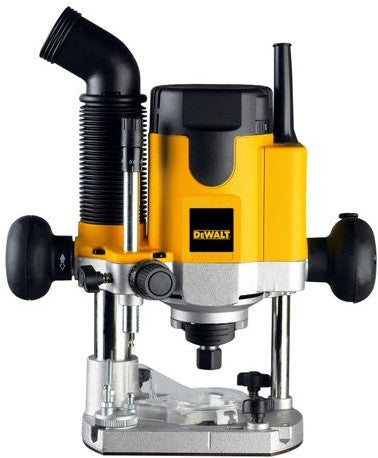

DW622K Electronic plunge cutter 1400W

Scope of supply

• 1 piece Parallel guide with fine adjustment
• 1 pcs dust extractor adapter
• 1 pcs 8mm and 12mm collet
• 1 pcs 22mm wrench
• 1 pcs 24mm guide ring
• 1 pcs sturdy carrying case

Special characteristics

• 1400W 6-12mm plunge cutter with all the features and benefits of DW621
• Precise cutting depth setting, down to 0.1mm, makes every cutting depth perfectly adjustable
• Unique dust extraction through the column which aids visibility as there is no hose or third column to obscure the view of the router bit
• For greater safety and comfort of use, the machine switch is located in the handle and has a lock and unlock function
• The electronic speed control ensures a consistently uniform fine finish in all types of wood, aluminum and plastic because the set speed remains constant under any load
• Soft start to avoid that little slip that ruins your cut
• Two precision guide columns. The extra wide main column provides superior stability for the highest possible precision in a cutter of this size.
• The rubberized handles provide comfortable handling and their low attachment point increases control over the device
• The three-stage turret stop for cutting depth adjustment allows grooves of different depths to be made at once without time-consuming adjustment operations
• Spindle locking mechanism for quick and easy tool change with just 1 wrench

Technical data

• hand/arm vibration: 3.3 acceleration/deceleration
• power consumption: 1400 watts
• length: 165 millimeters
• sound power: 95 decibels a-weighted.
• height: 325 millimeters
• sound pressure: 86 decibels a-weighted.
• weight: 3.1 kilograms
• idle speed: 8000-24000 rpm
• power output: 620 watts
• max. cutter diameter: 36 millimeters
• collet diameter: 6-12 millimeters
• milling depth up to: 55 millimeters
