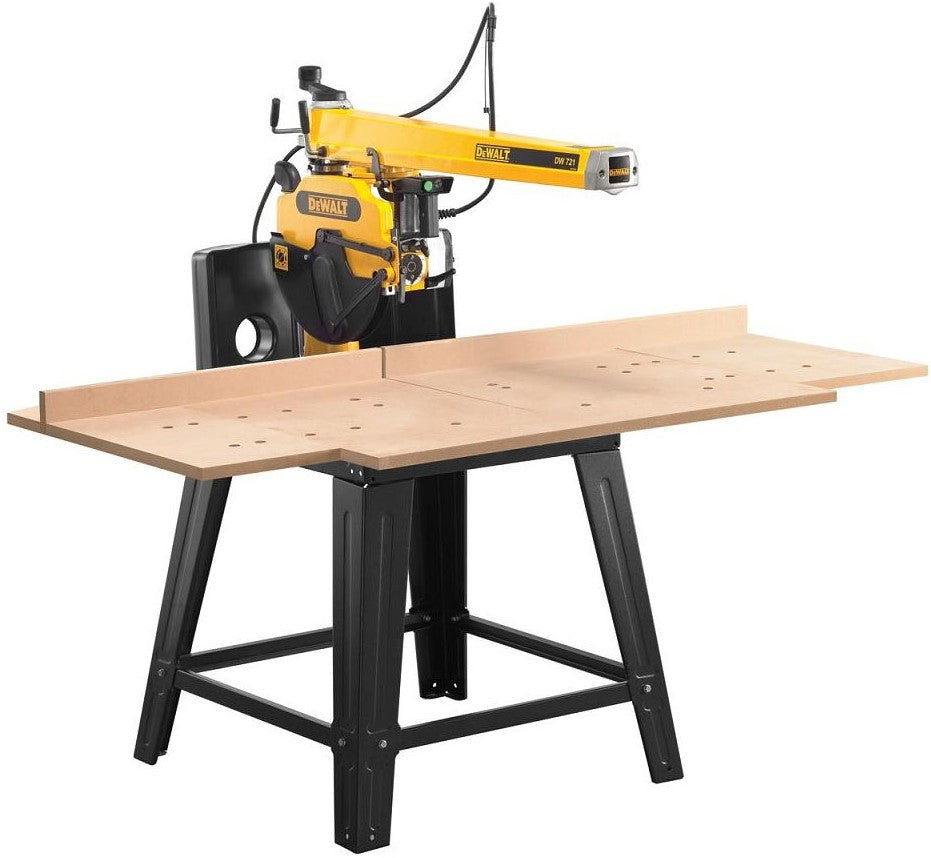

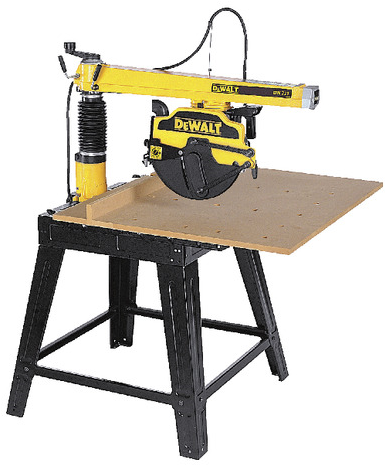

DW721KN Radial sawing machine

Scope of supply

• 1 pcs DeWALT DW721KN Radial saw
• 1 piece HM Saw Blade 300x30 32T
• 1 pcs Assembly wrench
• 1 pcs Automatic Return Device
• 1 pcs Saw blade brake
• 1 pcs Chassis

Special characteristics

• Partly assembled and adjusted from the factory and delivered in a wooden box for maximum protection during transport
• Heavier column and column base to support the extra arm length
• The solid cast iron arm and the saw head running on four roller bearings provide high precision throughout the life of the machine
• The quiet and maintenance-free induction motor has more than enough power, even at maximum cutting capacity. Also available with a three-phase motor, type DW722KN.
• Simple and clear controls and adjustment scales for the width, depth and cutting angle allow you to work quickly
• Supplied as standard with dust collector with 100 mm connection

Technical data

• power consumption: 2000 watts
• max. cutting depth 90°: 90 millimetres
• depth: 1200 millimeters
• length: 1490 millimeters
• max. cutting depth 45°: 60 millimetres
• height: 1470 millimeters
• arbor hole saw blade: 30 millimeters
• saw blade diameter: 300 millimeters
• weight: 115 kilograms
• power output: 1580 watts
• saw blade speed: 3000 per minute
• max. circumferential speed: 36 acceleration/deceleration
• max. cutting capacity at 90°: 507 millimetres
• max. cutting depth 90°/90°(max. height): 90 millimetres
• max. cutting capacity: 507 millimeters
• max. cutting capacity at 45°: 342 millimeters
