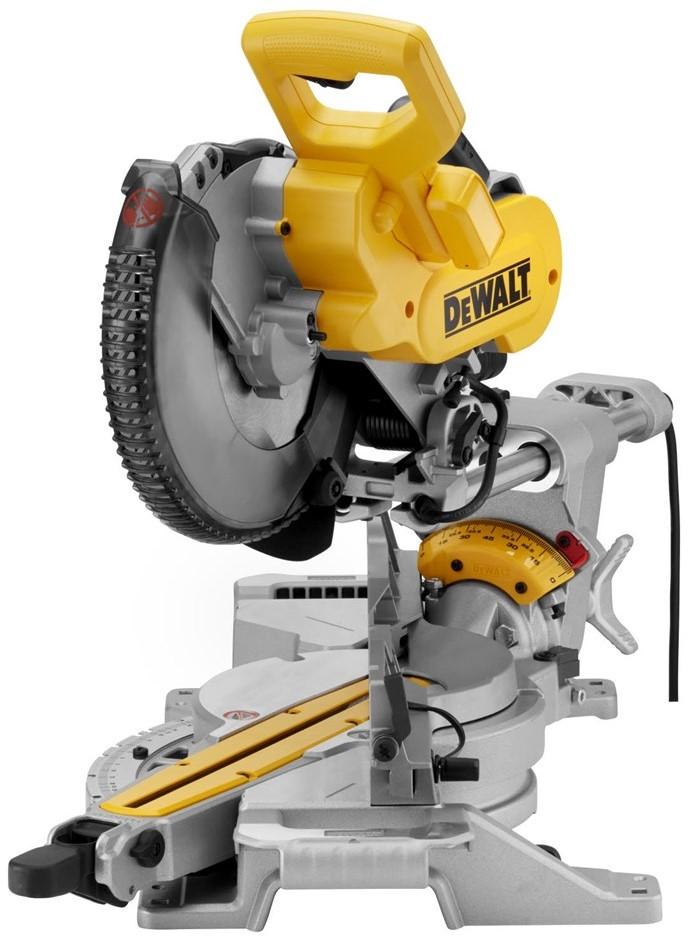

DWS727 Miter saw with XPS

• The cam lock system makes setting the miter angle easier and faster, allowing the user to select angles between 0-60° left and 0-50° right in an instant.
• The innovative groove cutting system allows the cutting depth to be precisely set for making grooves and rebates.
• The high, double stop with sliding stop parts provides maximum support and stability when processing large workpieces at any possible miter setting or combined angles.
• The linear bearing horizontal rails use bronze guides for maximum precision when cutting up to 320mm wide material.
• New bevel adjustment with quick-lock system allows quick and precise setting of 48° left and right bevel angles.
• The compact and lightweight design provides a machine with a huge cutting capacity that is easy to move around the job site.
• XPS shadow line cut indicator allows the workpiece to be placed in the correct position in relation to the saw blade very quickly.

Technical data

• power consumption: 1675 watts
• depth: 480 millimeters
• bevel capacity: 48/48 degree angle
• length: 770 millimeters
• height: 460 millimeters
• arbor hole saw blade: 30 millimeters
• saw blade diameter: 250 millimeters
• weight: 23 kilograms
• saw blade speed: 4000 per minute
• cap. at 90°/45°(max. width): 320x50 millimeters
• mitered angles (right/left): 50/60 degree angle
• cap. at 90°/90°(max. height): 302x88 millimeters
• max. cutting capacity 45°/45° double miter: 210x50 millimeters
• max. cutting depth 90°/90°(max. height): 90 millimetres
• cap. at 45°/90°(max. height): 210x77 millimeters
• cap. at 90°/90°(max. width): 305x77 millimeters
• cap. at 90°/45°(max. height): 305x50 millimeters
