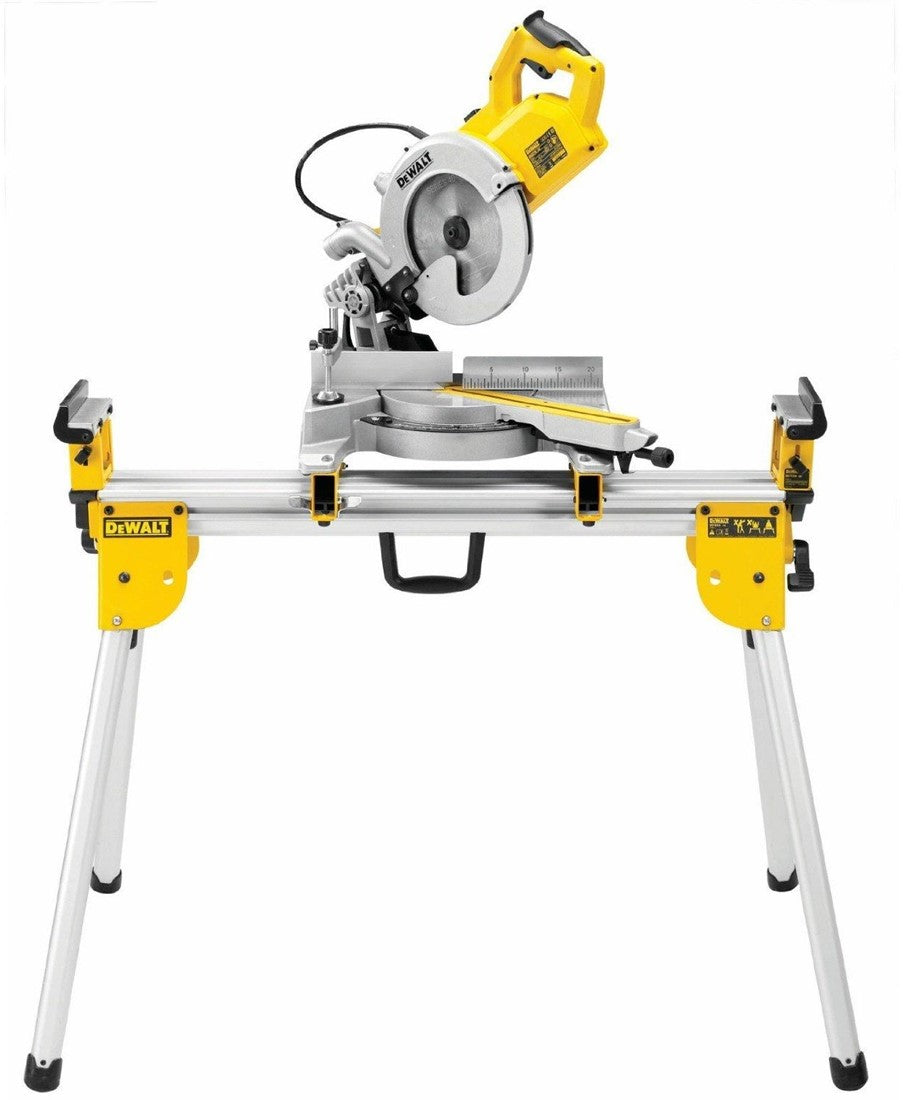

DWS777SET Miter Saw + DE7033 Undercarriage

• The classic design of the telescopic miter saw has been further improved and adapted to the requirements of today's user
• New 1800 Watt motor for excellent cutting performance in all materials
• The dust extraction is designed to function optimally during intensive use and to minimize the health risk from dust in the environment
• The outrigger table and stop are machined flat to meet the highest quality requirements in the most difficult applications
• The new saw head lock allows the traverse function to be blocked when sawing small workpieces and also for safe transport
• Preset fixed miter angles of 15°, 22.5°, 30°, 45°, 90° with a quick lock mechanism up to 50°
• Extendable stop section on the left, with scale, for maximum support and control when sawing larger workpiece parts
• Compact design with internal guide rails for high cutting capacity and easy transport

Technical data DeWALT DWS777

• power consumption: 1800 watts
• depth: 550 millimeters
• bevel capacity: 48 degree angle
• length: 490 millimeters
• height: 590 millimeters
• arbor hole saw blade: 30 millimeters
• saw blade diameter: 216 millimeters
• weight: 14 kilograms
• power output: 1100 watts
• cap. at 45°/90°(max. width): 190x60 millimeters
• saw blade speed: 6300 per minute
• cap. at 90°/45°(max. width): 270x48 millimeters
• mitered angles (right/left): 50/50 degree angle
• cap. at 90°/90°(max. height): 265x62 millimeters
• max. cutting capacity 45°/45° double miter: 190x48 millimeters
• max. cutting depth 90°/90°(max. height): 80 millimetres
• cap. at 45°/90°(max. height): 189x62 millimeters
• cap. at 90°/90°(max. width): 270x60 millimeters
• cap. at 90°/45°(max. height): 173x62 millimeters
