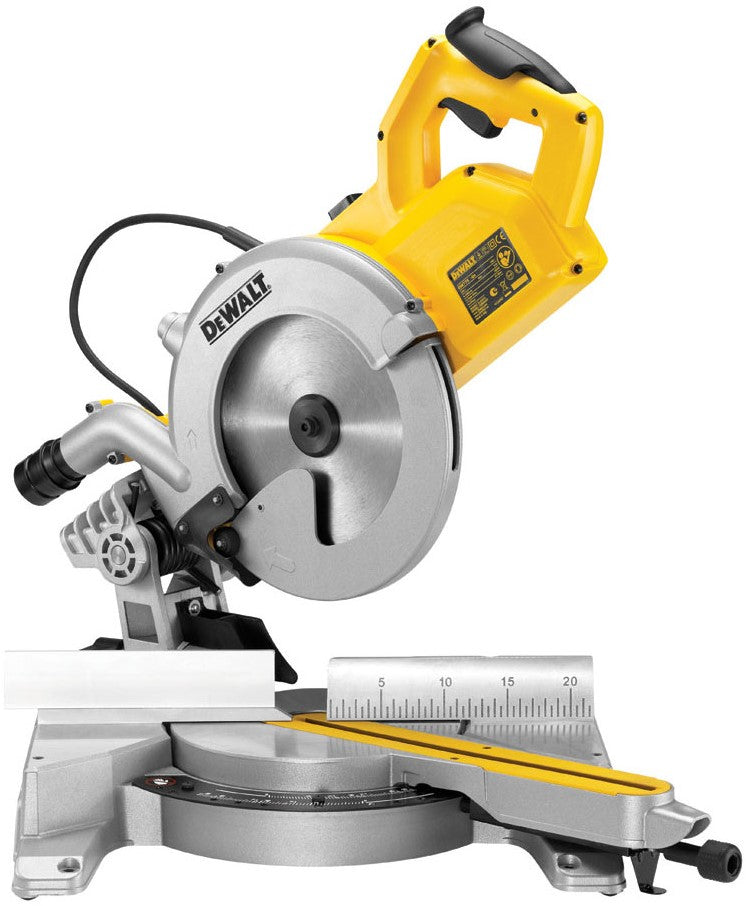

DWS778 Miter saw with XPS 1850W

• 1850 Watt motor for excellent cutting performance in all materials

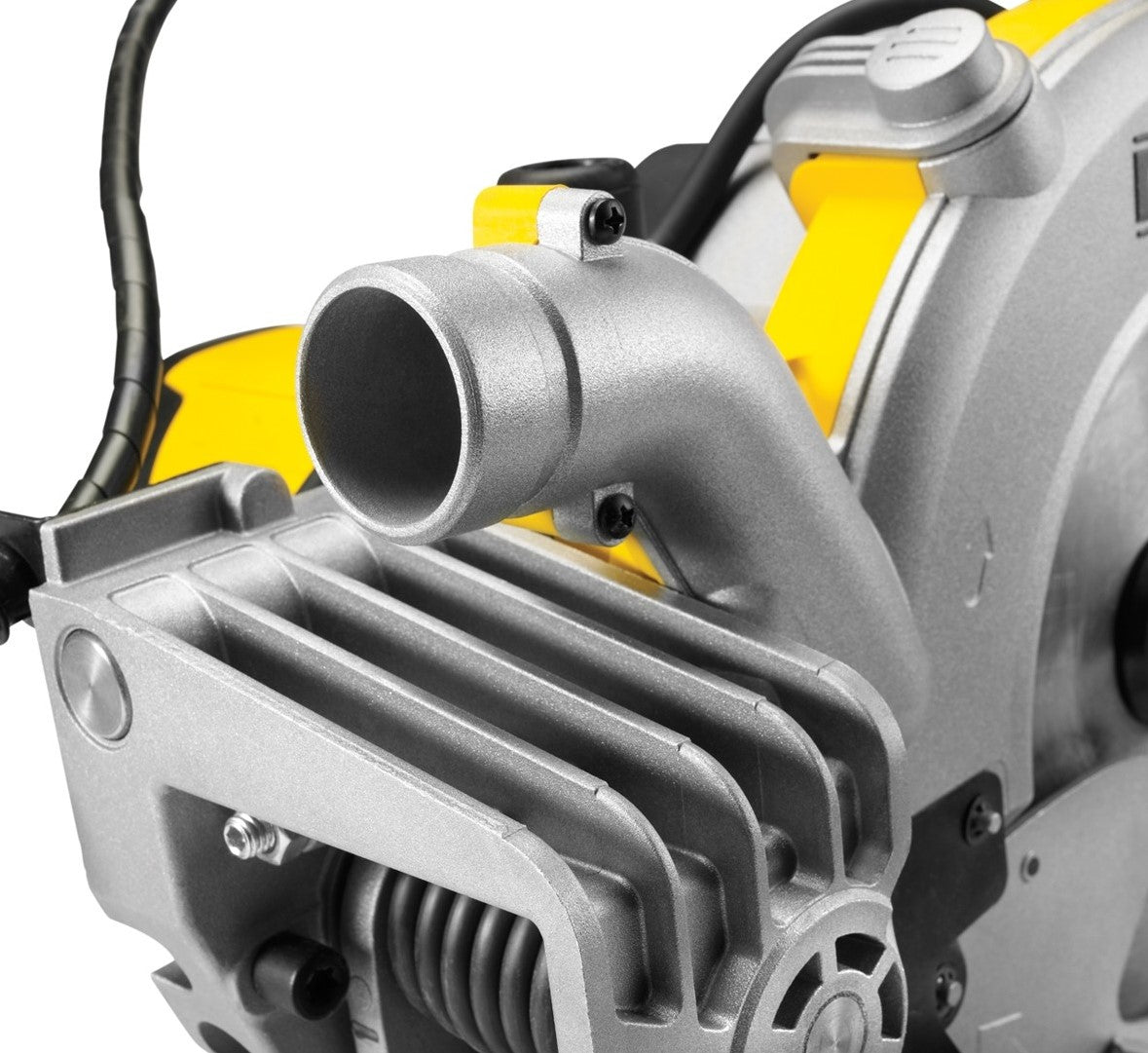

• The dust extraction is designed to function optimally during intensive use and to minimize the health risk from dust in the environment
• The outrigger table and stop are machined flat to meet the highest quality requirements in the most difficult applications
• The new saw head lock allows the traverse function to be blocked when sawing small workpieces and also for safe transport
• Preset fixed miter angles of 15°, 22.5°, 30°, 45°, 90° with a quick lock mechanism up to 50°
• Extendable stop section on the left, with scale, for maximum support and control when sawing larger workpiece parts
• Compact design with internal guide rails for high cutting capacity and easy transport
• XPS shadow line cut indicator allows the workpiece to be placed in the correct position in relation to the saw blade very quickly.

Technical data:

• power consumption: 1850 watts
• depth: 465 millimeters

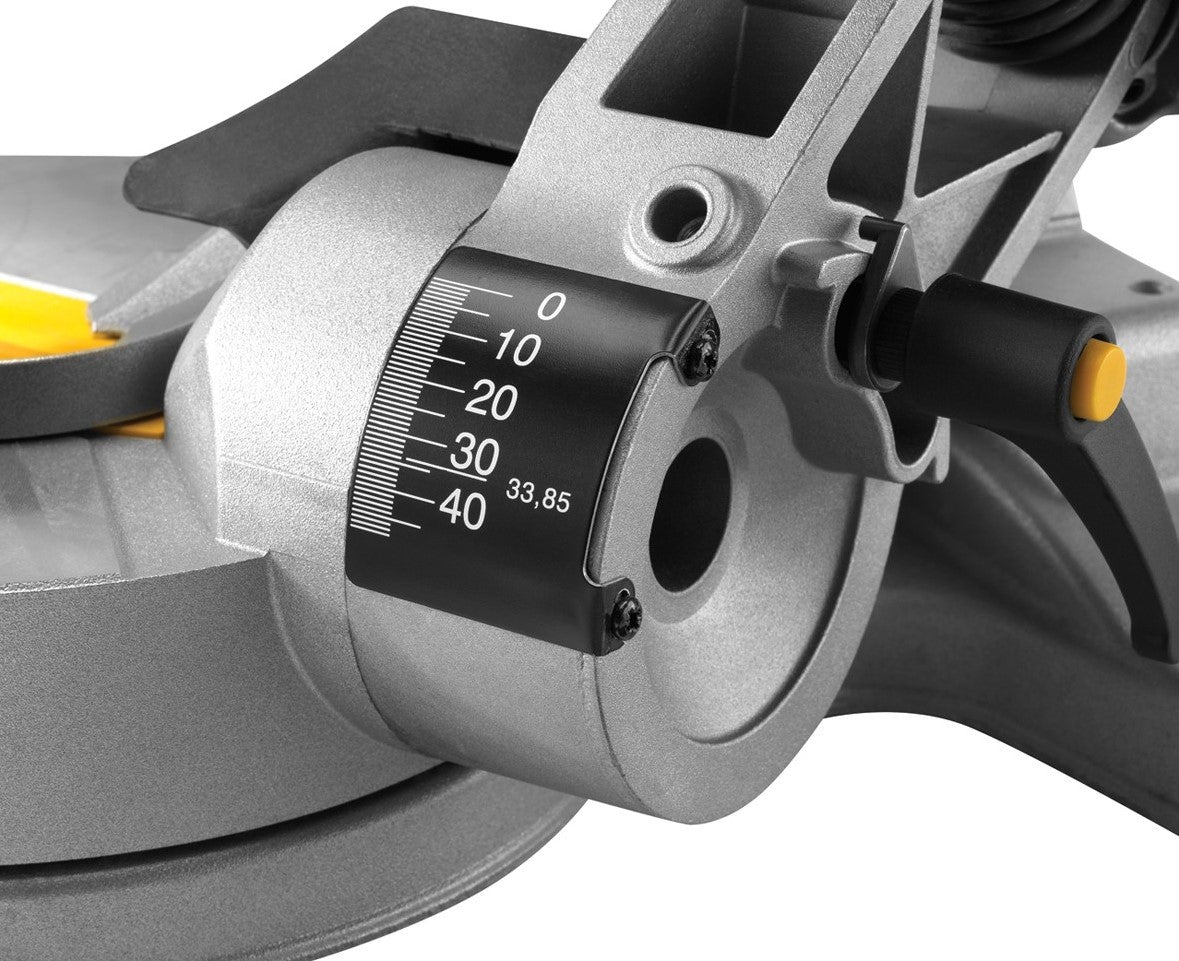

• bevel capacity: 48 degree angle
• length: 615 millimeters
• height: 390 millimeters
• arbor hole saw blade: 30 millimeters
• saw blade diameter: 250 millimeters
• weight: 17.2 kilograms
• power output: 1050 watts
• cap. at 45°/90°(max. width): 215x85 millimeters
• saw blade speed: 4300 per minute
• cap. at 90°/45°(max. width): 305x45 millimeters
• mitered angles (right/left): 50/50 degree angle
• cap. at 90°/90°(max. height): 305x85 millimeters
• max. cutting capacity 45°/45° double miter: 215x45 millimeters
• max. cutting depth 90°/90°(max. height): 85 millimetres
• cap. at 45°/90°(max. height): 215x85 millimeters
• cap. at 90°/90°(max. width): 305x85 millimeters
• cap. at 90°/45°(max. height): 305x45 millimeters
