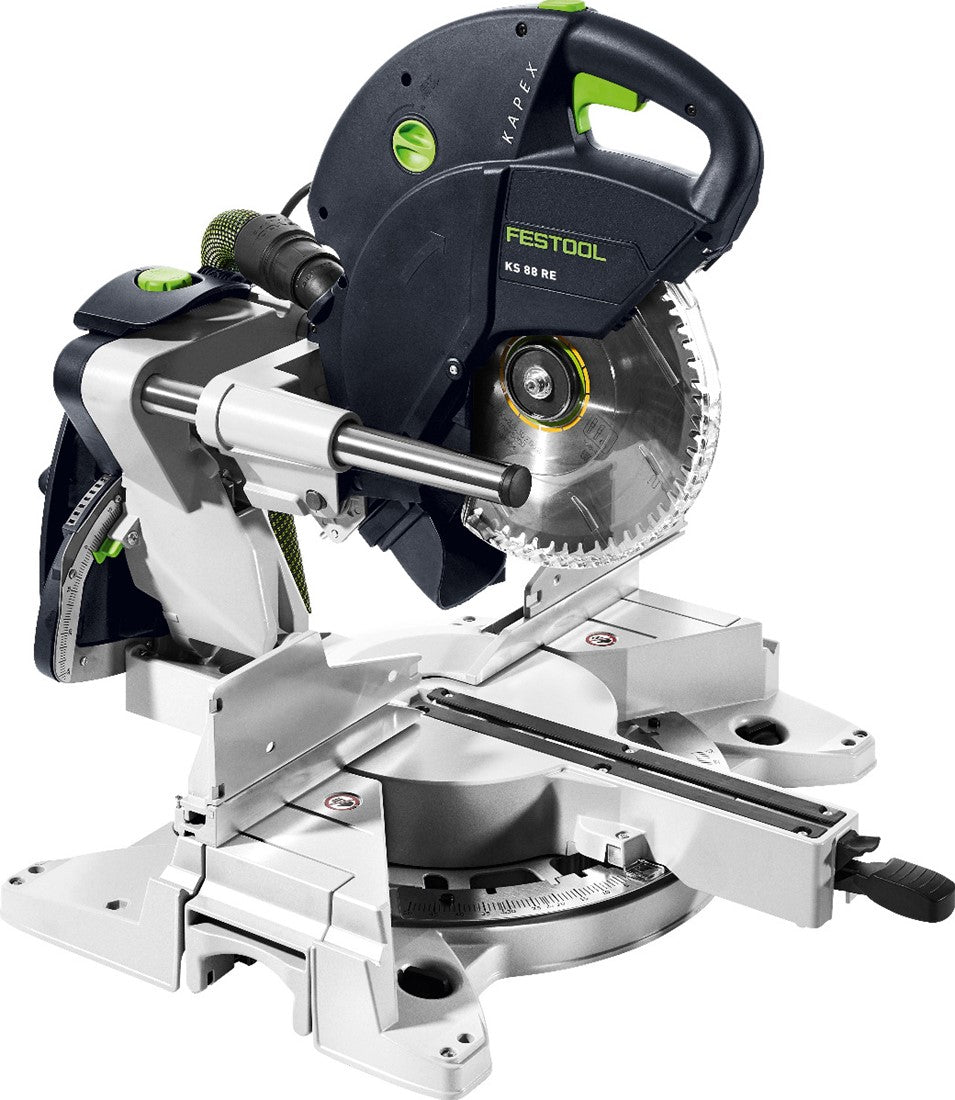

Festool Miter saw KS 88 RE KAPEX 575317

Festool Miter saw KS 88 RE KAPEX

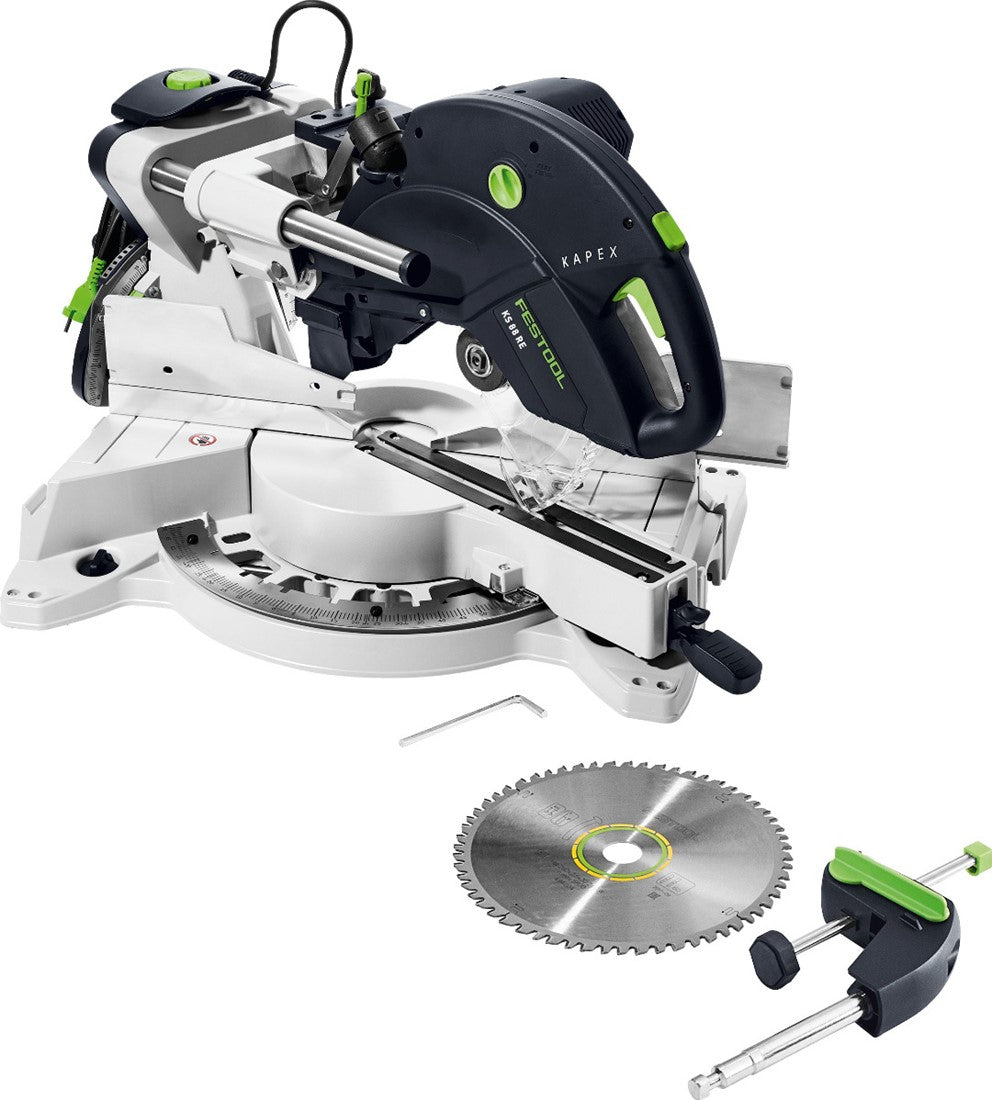

Scope of supply

• 1 piece Festool KS 88 RE KAPEX miter saw
• 1 piece HW universal saw blade W60
• 1 pcs workpiece clamp
• 1 piece Allen key SW 6
• in box

Characteristics

• The double ball bearing double guide column for precise work
• Compact and light construction for comfortable transport
• Intelligent details, such as an angle preset button and quick clamp for quickly fixing the angle of inclination
• FastFix saw blade change for material-specific work
• Precise cuts due to double guide column

Product highlights

• Compact, light, incredibly versatile: the KS 88 convinces with a max. cutting depth of 88 mm and a particularly light construction. For exact results in the workshop or on the go.
• Robust yet mobile: The ribs and high-quality magnesium die-cast plate provide more strength with a lower weight.
• MMC electronics: variable speed presetting, soft start and overload protection.

Center of gravity application

• Cut planks and panels to size up to 305 x 88 mm
• Fitting edge profiles up to 168 mm in any measured angle
• Shortening beams up to a thickness of 88 mm

Technical data

• No-load speed: 1 400 - 3 400 rpm
• Power consumption: 1 600 W
• Weight: 22.30 kg
• Saw blade diameter: 260.00 mm
• Cutting depth at 45°/90°: 215 x 88 mm
• Cutting depth 90°/90°: 305 x 88 mm
• Cutting depth 45°/45° (right): 215 x 35 mm
• Edge profile diagonal cut 45°/90°: 168.00 mm
• Inclination angle: 47/47°
• Dimensions (LxDxH): 713 x 500 x 470 mm
• Cutting depth 50°/90° (left): 196 x 88 mm
• Cutting depth 60°/90° (right): 152 x 88 mm
• Cutting depth 45°/45° (left): 215 x 55 mm
• Miter angle: 50/60°
• Working height: 900.00 mm
• Dust extraction connection Ø: 27/36 mm
• Sawing: Uncertainty (vibration) K: 1.50 m/s ²
• Sawing: A-rated sound pressure level LpA: 88.00 dB(A)
• Sawing: A-rated sound power level LWA: 101.00 dB(A)
• Saws: Overall avg. vibration value ah: 2.50 m/s ²
• Sawing: Uncertainty (noise) K: 3.00 dB
