Festool Corpus connector KV D8 VE=50 203166

Festool Corpus connector KV D8 VE=50

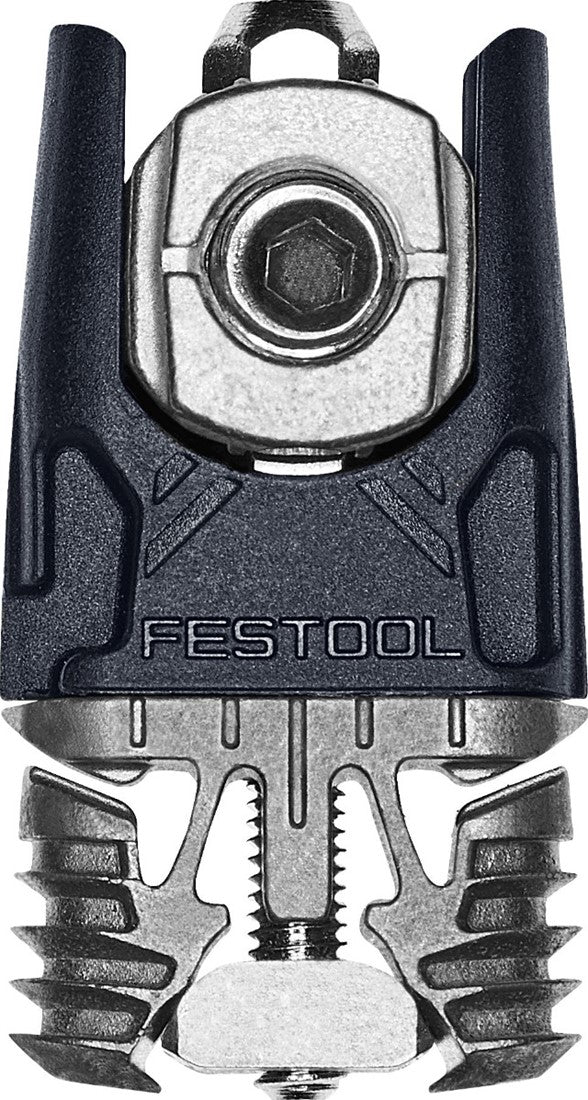

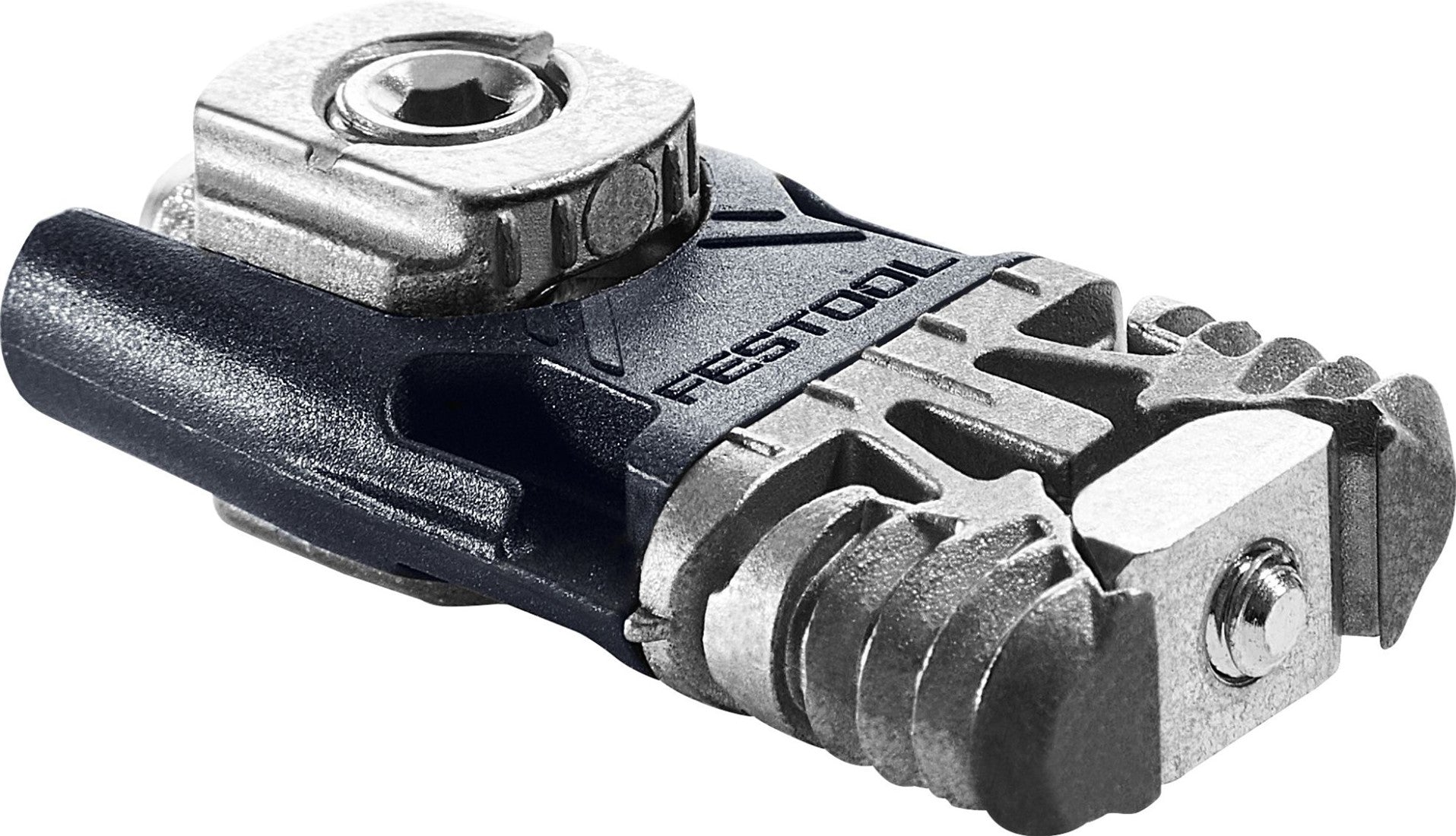

The new DOMINO furniture connectors ensure stable yet flexible and demountable furniture constructions. Due to their great versatility, they offer a very wide range of applications - from corner connections via center section connections to hole row connections. For unique flexibility, speed and efficiency.

Scope of supply

• 50 pcs expansion anchor
• 50 pieces Bolts with M4 thread
• 50 pieces Plastic trays
• 50 pcs Cross anchor with set screw
• without covers
• in box

Characteristics

• The clever DOMINO system ensures very simple and exact positioning of the connections, making additional stops and positioning aids superfluous. For efficient and fast work
• The deep holes and the long bolts of the connectors make furniture assembly extremely easy. This means that even if you are alone, building a cupboard is not a problem
• The integrated fittings protect the individual furniture components from scratching
• Milling and sawing tolerances of up to 1.4 mm are easily compensated by the hardware
• The new DOMINO furniture connectors, which can be dismantled again, are ideally suited for panel thicknesses of 18 to 28 mm
• For 50 corner connections with the DF 500

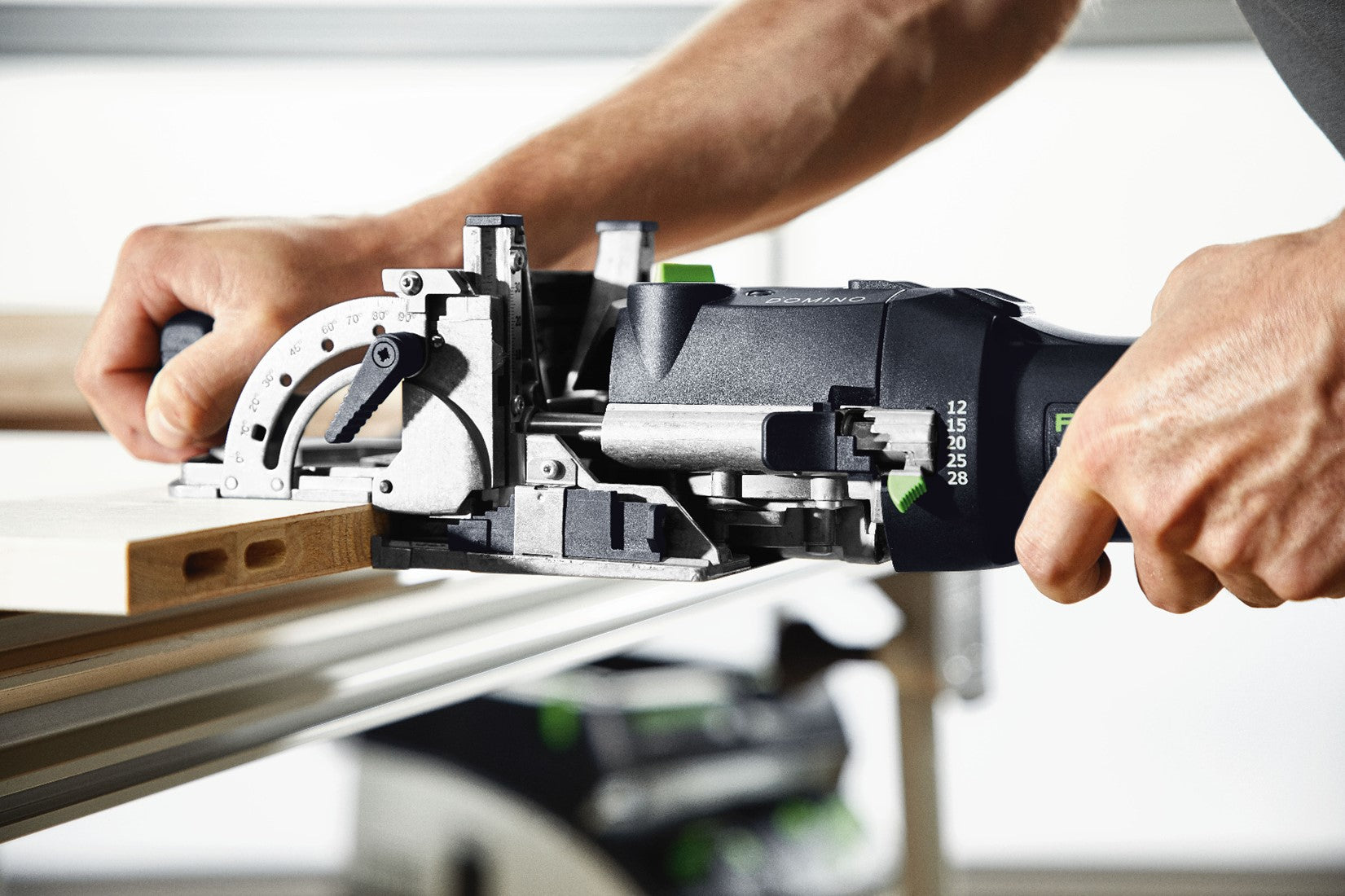

• The DOMINO / DOMINO connector KV D8/50 is positioned in the side wall and in the horizontal parts with the DOMINO milling machine DF 500

Technical data

• Connecting fittings (8 mm DOMINO cutters): D8
• DOMINO milling depth for the side part: 15.00 mm
• DOMINO milling depth for the floor section: 28.00 mm
• Drilling diameter in the floor area: 15.00 mm
• Plate thickness: 18 – 28 mm
• Packaging content: 50.00 pcs
