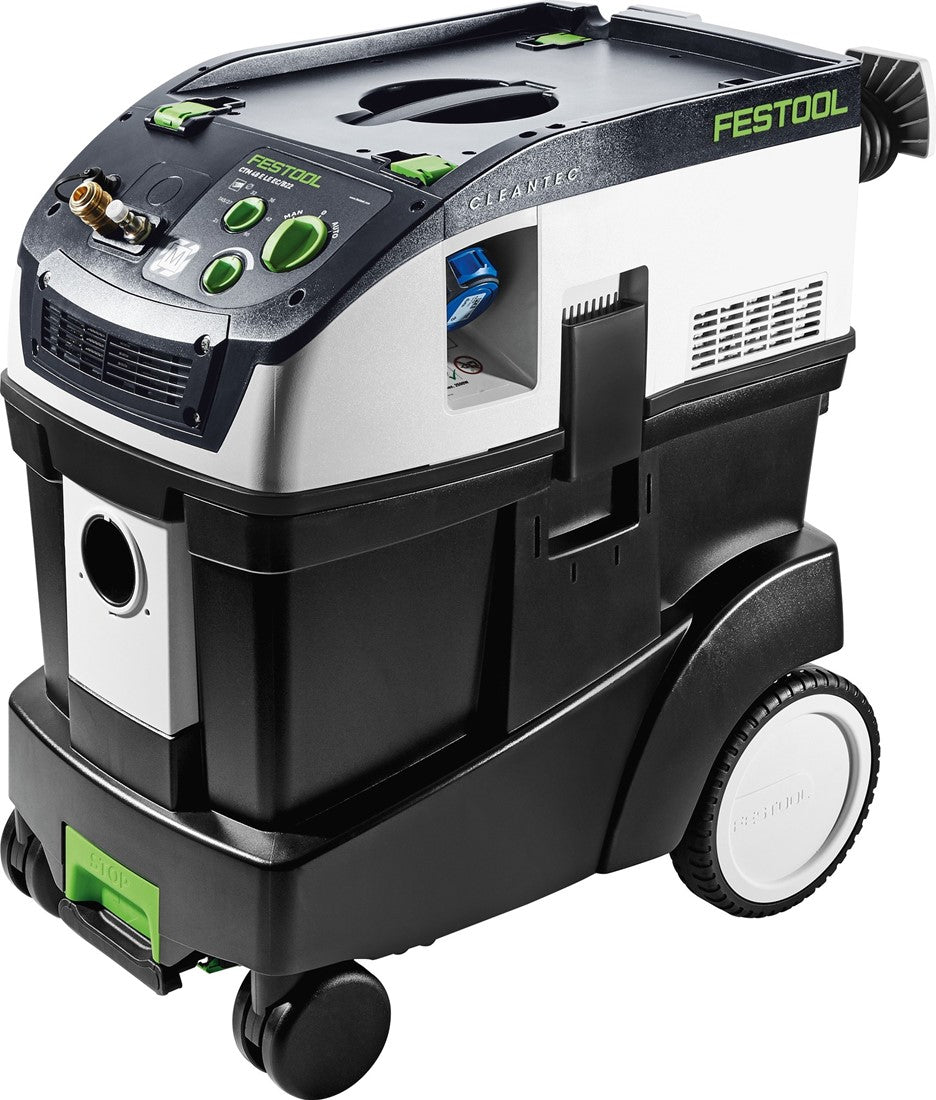

Festool CTL 48 E LE EC/B22 R1 Mobile dust extractor 1100W

Festool CTL 48 E LE EC/B22 R1 Mobile dust extractor 1100W

Description

The special vacuum cleaner CTL 48 EC/B22 with EC-TEC drive is designed for long-term use. The robust ABS container is equipped with additional flame protection and is therefore suitable for the safe extraction of aluminum, paper and powder coating dust, as well as soot and even glass fiber and carbon fiber reinforced plastics. The CLEANTEC CTL 48 LE EC/B22 is ideal for industrial use due to the powerful, durable and brushless EC-TEC motor and the enormous intake volume of 48 l. The generous reservoir geometry offers maximum volume. In addition, it is extremely mobile with the swivel wheels, rear wheels and push handle. The flat pleated filter, which is fully integrated into the piston head, ensures full use of volume: as a result, the gross volume and net volume of the reservoir are virtually identical. The extremely compact high-capacity turbine provides corresponding extraction capacity. 3900 l/min volume flow - nothing remains but pure air. Approved for dust of dust class L.

Scope of supply

• 1 piece Festool CTL 48 B22
• 1 piece SELFCLEAN filter bag
• 1 pcs suction hose smooth Ø 27/32 x 3.5 m-AS/CT
• 1 piece of cable winding
• 1 pcs compressed air module
• in box

Characteristics

• Complies with ATEX directive 94/9/EC for zone 22 – substances of explosion class ST1, ST2 and ST3 are disposed of safely
• Durable and strong due to EC-TEC drive, with a lifespan that exceeds a universal motor several times
• With new suction hose: smooth and flexible – with smooth exterior to glide perfectly over surfaces
• With integrated connection for EAA and compressed air tools
• Anti-static effect against static charging during work
• Smooth hose and optimized SYS-Dock with cable winding and T-LOC function for convenient coupling of the SYSTAINER with the mobile dust extractor
• Cable winding ensures order
• Approval for dust class L
• Fixation of Systainers using SYS-Dock
• High efficiency through optimal volume utilization with SELFCLEAN filter bag in the container
• Reservoir/filter bag volume 48/46 l
• Approval for dust class L
• Compressed air connection with automatic switch-on and switch-off
• EAA connection

Center of gravity application

• For substances with limit values ​​> 1 mg/m³
• Extraction of dry, combustible substances in zone 22
• Extraction at power tools thanks to integrated automatic switch-on/off
• Suitable for wet and dry vacuuming

Specifications

• Dimensions (L x W x H): 630 x 406 x 640mm
• Volume flow max.: 3400 l/min
• Negative pressure max.: 23000 Pa
• Filter area: 6318 cm²
• Mains connection cable, rubber insulated: 7.5 m
• Reservoir/filter bag volume: 48/46 l
• Connected power socket max.: 2400 W
• Power consumption: 150 – 1 100 W
• Weight: 18.6 kg
• Vacuuming: A-rated sound pressure level LpA 71 dB(A)
• Vacuuming: EN 60745 series of standards
• Vacuuming: Uncertainty (noise) K 3 dB
