Festool OF 1010 EBQ-Plus Router 576196

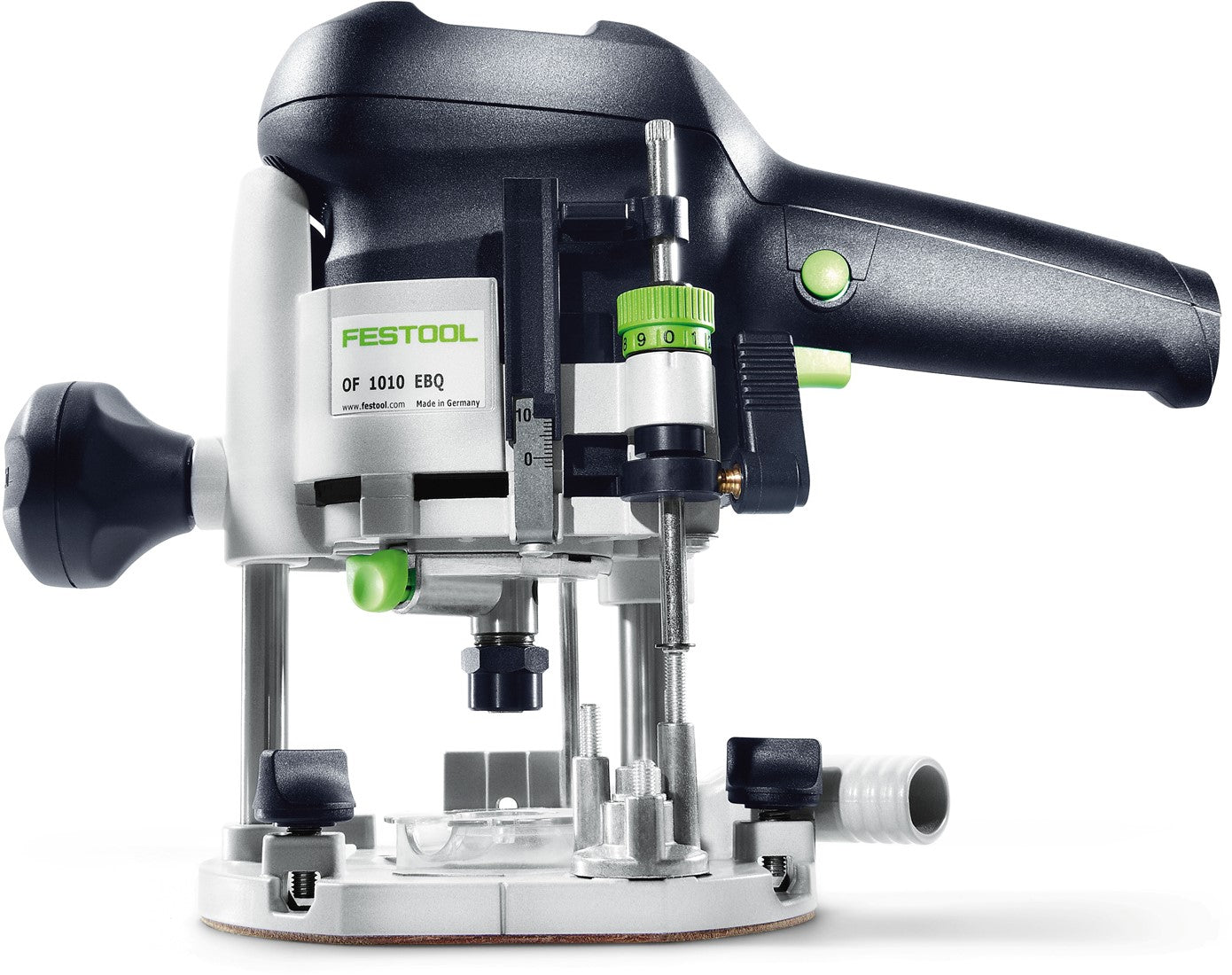

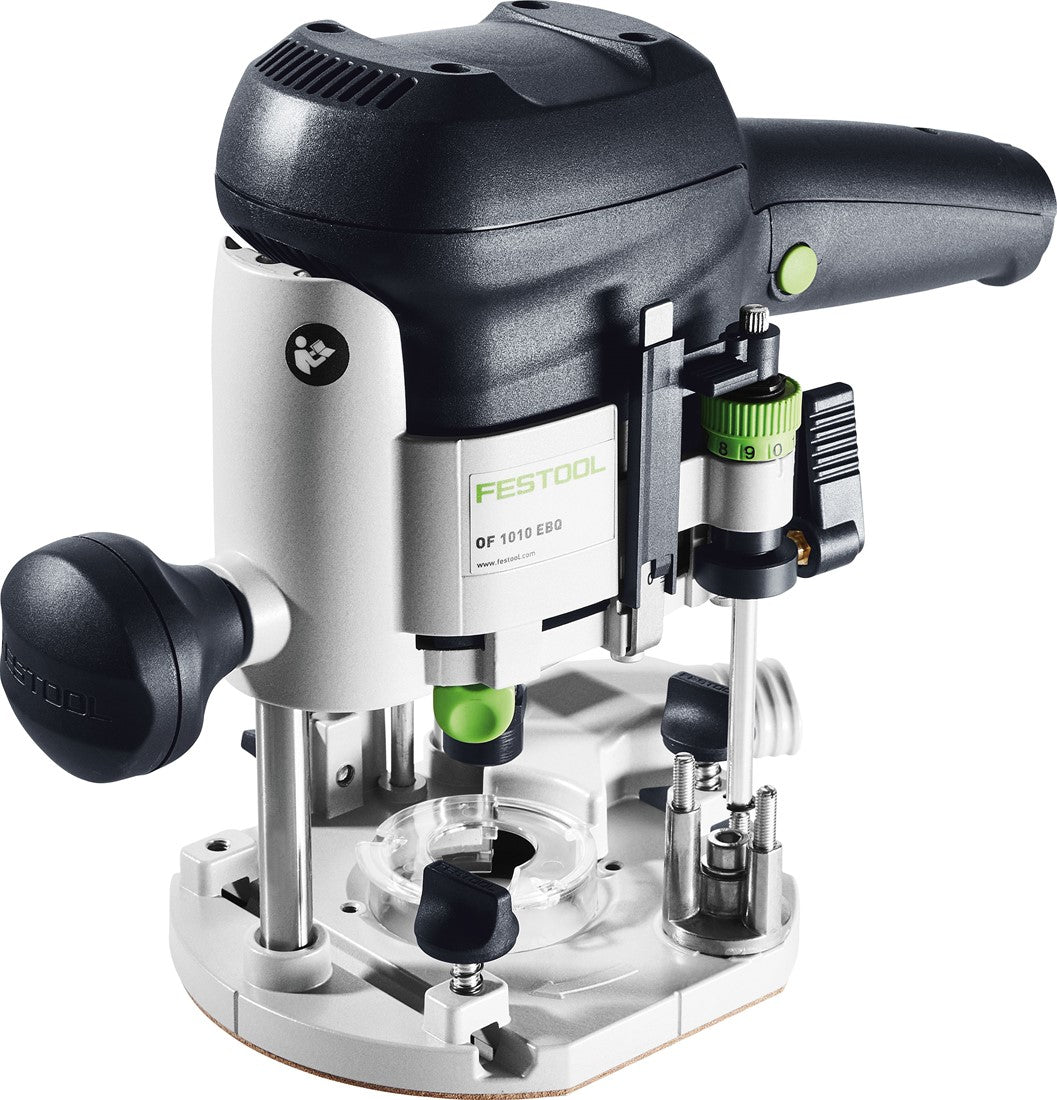

Festool OF 1010 EBQ-Plus Router

Extremely versatile. Extremely accurate. Extremely easy handling: whether working freehand or with the guide rails, the OF 1010 router is the ideal one-hand tool. Thanks to its size and low weight, you can work precisely along edges, lines or curves with one hand. Inserting profiles, milling grooves, rebates and lip joints - the OF 1010 convinces with numerous technical solutions.

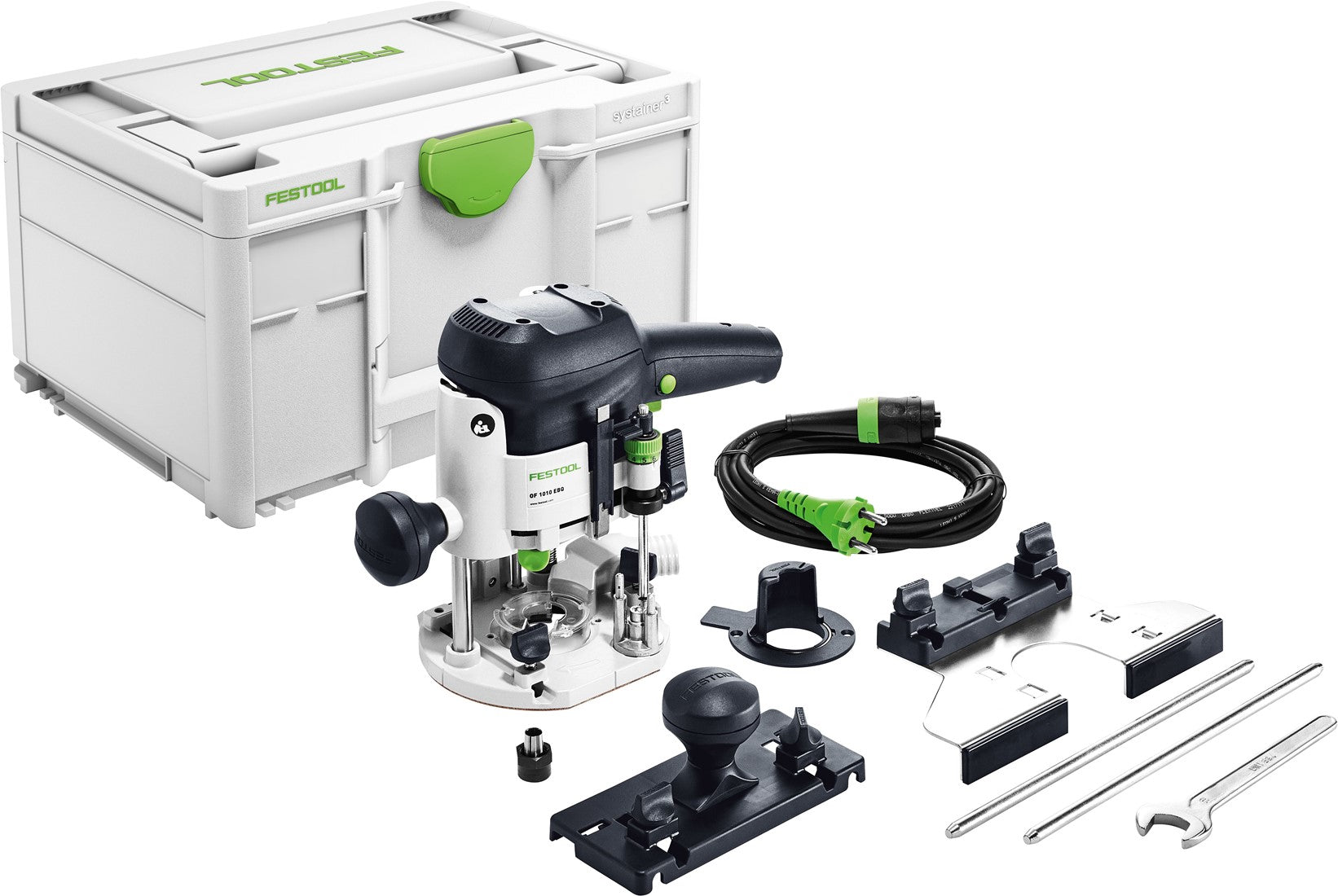

Scope of supply

• 1 piece Festool OF 1010 router
• 1 pcs guide rail adapter
• 1 piece chip catcher
• 1 piece collet Ø 8mm
• 1 piece wrench SW 19
• 1 piece side stop
• Festool SYS3 M 237 Systainer

Features and benefits

• Low weight and one-hand operation
• Simple cutter change thanks to spindle stop
• Simple and 1/10 mm accurate adjustment of the milling depth
• More safety thanks to the quick brake (OF 1010 EBQ)
• MMC electronics for material-specific working and temperature monitoring
• Chip extraction integrated in the router table

• Precise fine adjustment: The OF 1010 has an accurate depth adjustment. The cutter can be set up quickly and can be finely adjusted with the rotary wheel in the 1/10 mm range.
• Central column clamp: plunge in, clamp without having to take your hand off the machine. It couldn't be simpler.
• For copying: workpieces can be copied quickly with the angle arm. The arm scans the profile of the model and transfers it with the milling machine to the workpiece to be manufactured.
• Quick brake: The quick brake ensures optimum safety when milling and the OF 1010 comes to a standstill within seconds.

Center of gravity application

• Rounding edges, chamfering, grooves and milling profiles
• Milling fittings
• Use the guide system to create grooves in rear walls, apply frames or mill plasterboard (folding edge technique)
• Creating rows of holes in furniture construction with the hole row system LR 32
• Making wood joints with the VS 600

Technical data

• Power consumption 1010 W
• No-load speed 10 000 - 24 000 min?¹
• Collet diameter 6 - 8 mm
• Milling depth quick setting 55.00 mm
• Milling depth fine adjustment 8.00 mm
• Table opening 50.00 mm
• Dust extraction connection Ø 27 mm
• Weight 2.70 kg
• Drive type Mains power
