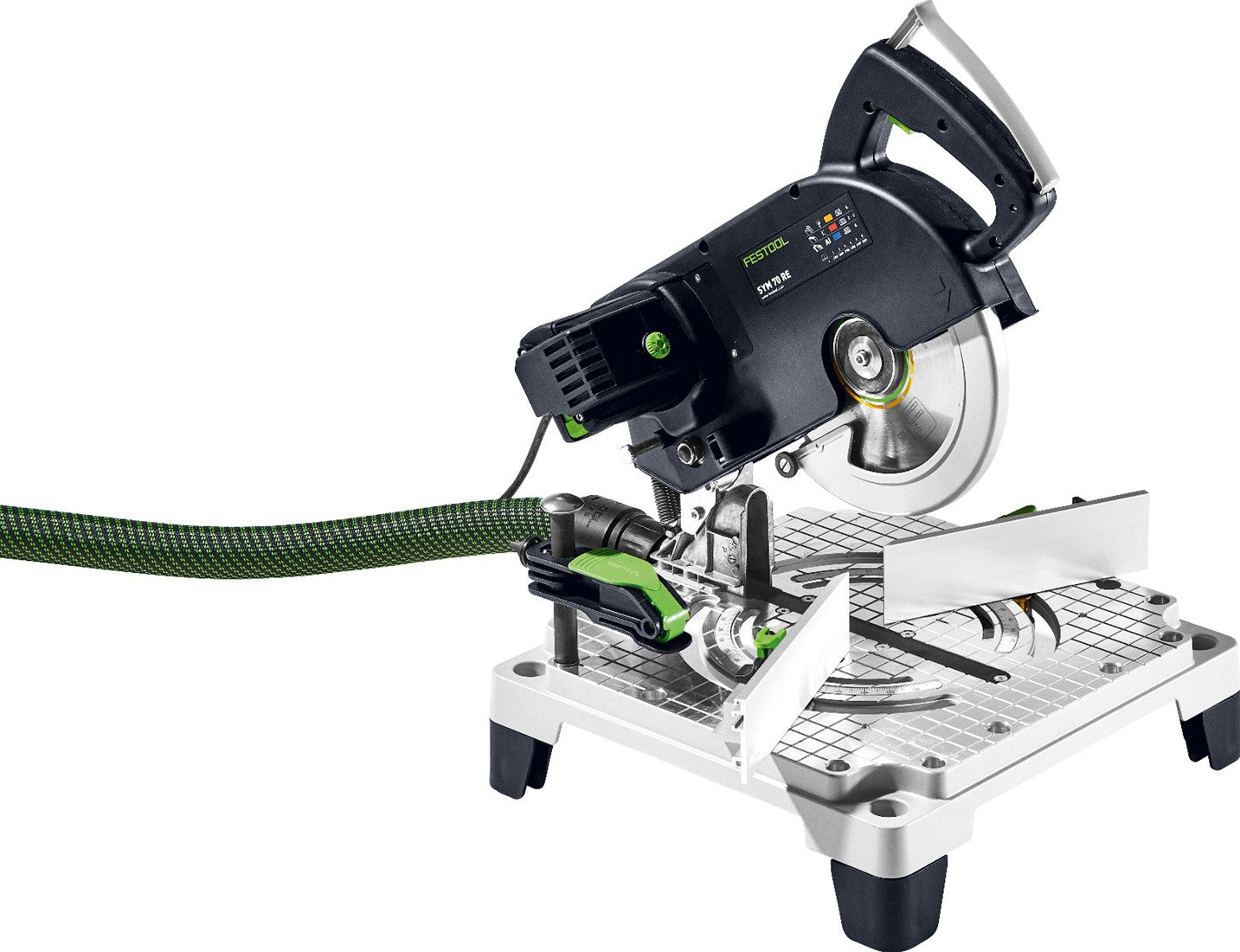

Festool miter saw SYM 70 RE SYMMETRIC

Festool miter saw SYM 70 RE SYMMETRIC

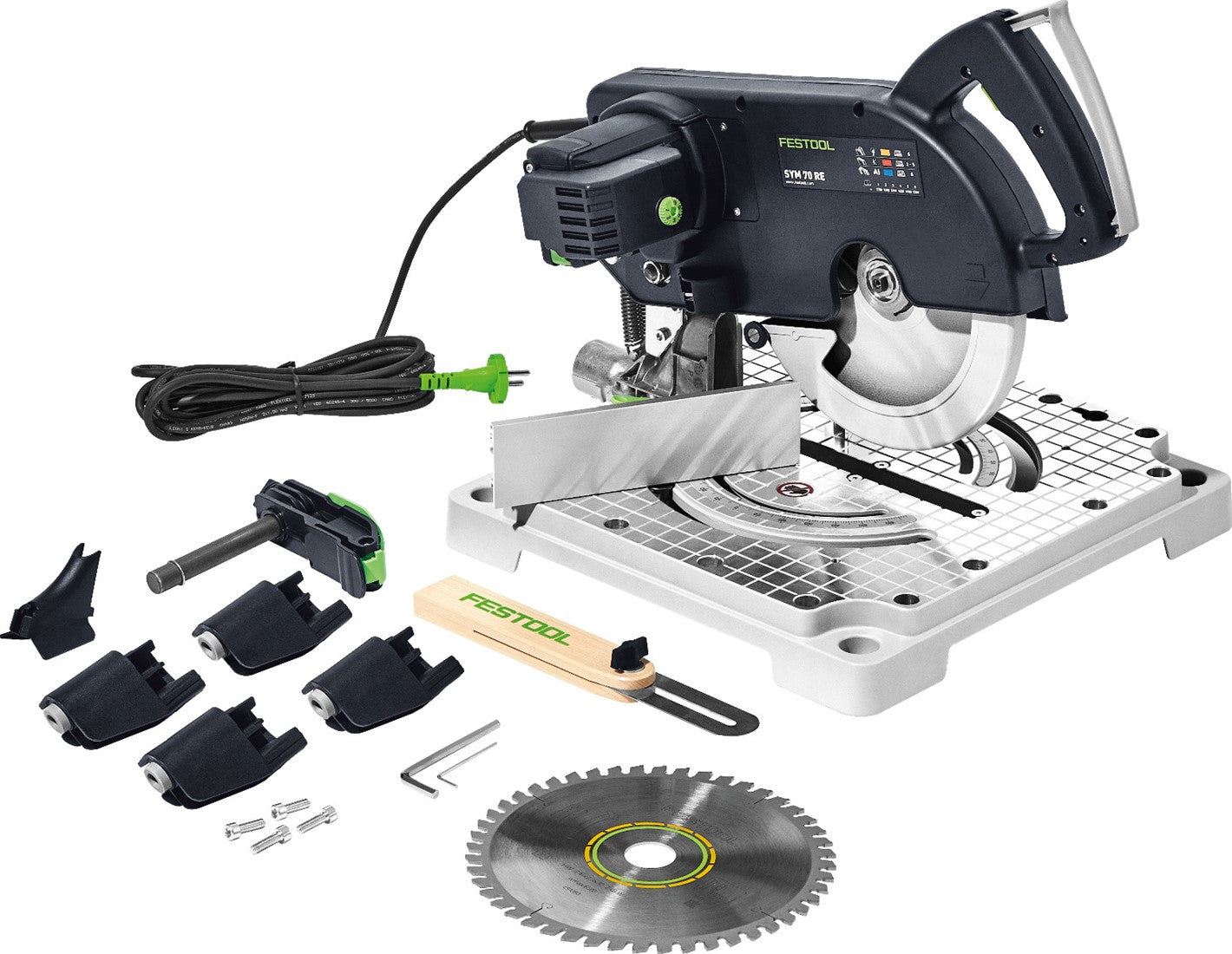

Scope of supply

• 1 piece Festool SYM 70 RE miter saw
• 1 piece HW fine-toothed saw blade W48
• 1 pcs precision swing hook
• 1 piece elevation EH-SYS-SYM 70
• 1 pcs workpiece clamp
• 1 piece Allen key SW 5
• in box

Characteristics

• Patented, symmetrical stop system
• Easy transfer of the angle with a bevel, always saw the right angle without calculations
• Simple stop clamp, without tools
• Intermediate feet to adjust the height of the SYM 70 to the height of a SYSTAINER SYS 1: long workpieces can be easily supported while working
• Working according to the material thanks to the MMC electronics
• Operation left and right thanks to the slim hood operation in the middle

Product highlights

• For perfect skirting boards: Pick up the angle with the hook from the wall, transfer it to the patented stop system, cut, done. External angles up to 60°, internal angles up to 68° possible.
• Left and right operation: The miter saw is symmetrically constructed, so that left and right-handed users can safely saw both the inside and outside corners.
• Angle adjustment: With the SYMMETRIC, outside angles up to 60° and inside angles up to 68° can be made.
• Clever accessories: The additional legs raise the work table of the SYM 70 exactly to the height of a SYSTAINER SYS 1. It can thus be used as a work table and long workpieces are safely supported.

Center of gravity application

• Fitting skirting boards into angle bisectors - without calculations
• Saw glazing bars, cover and end strips exactly at right angles without calculating
• Cut blunt and sharp corners without any problems

Technical data

• No-load speed: 2 700 - 5 200 min?¹
• Power consumption: 1 150 W
• Weight: 9.60 kg
• Saw blade diameter: 216.00 mm
• Inner angle: 0 - 68 °
• Outer angle: 0 - 60 °
• max. plinth height: 70.00 mm
• max. plinth width: 80.00 mm
• Dust extraction connection Ø: 27/36 mm
