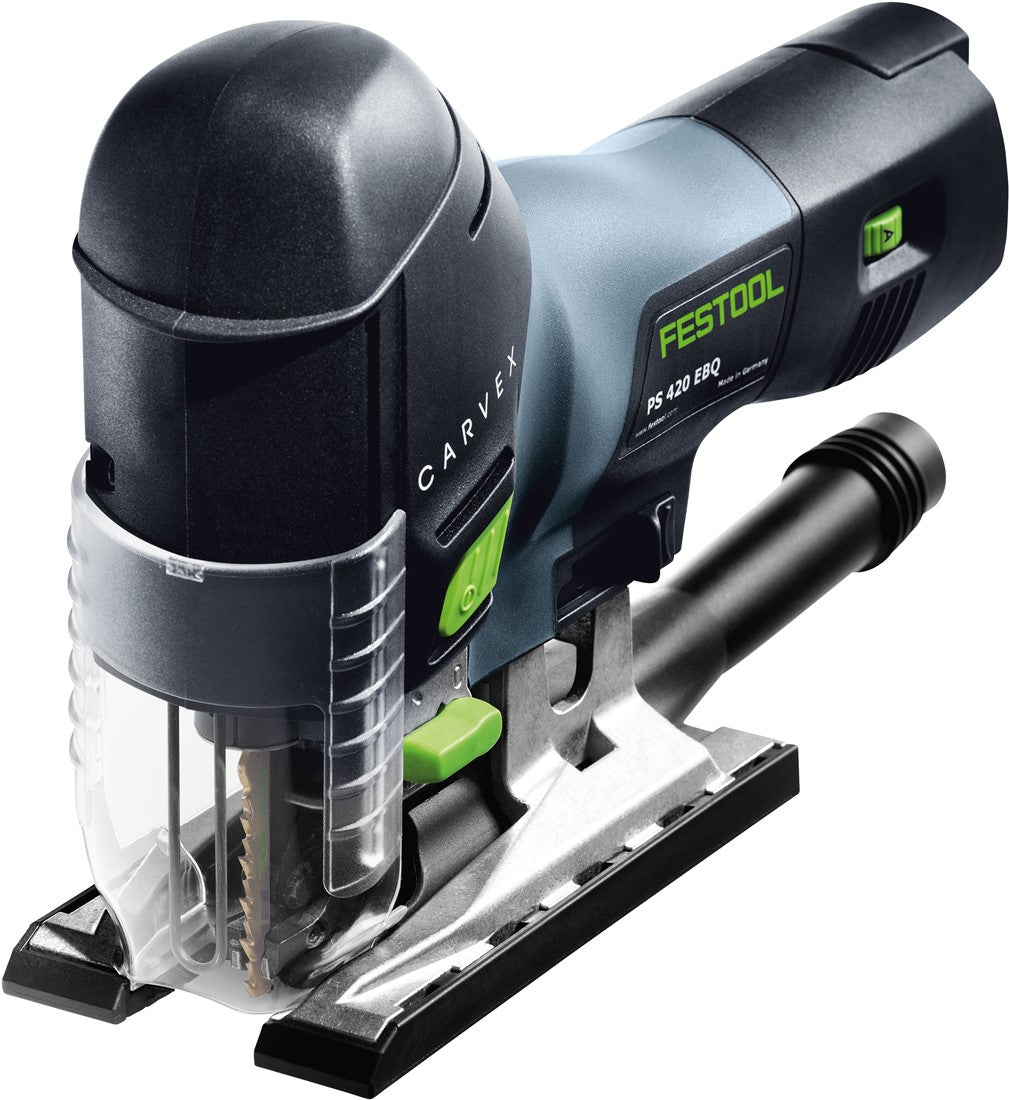

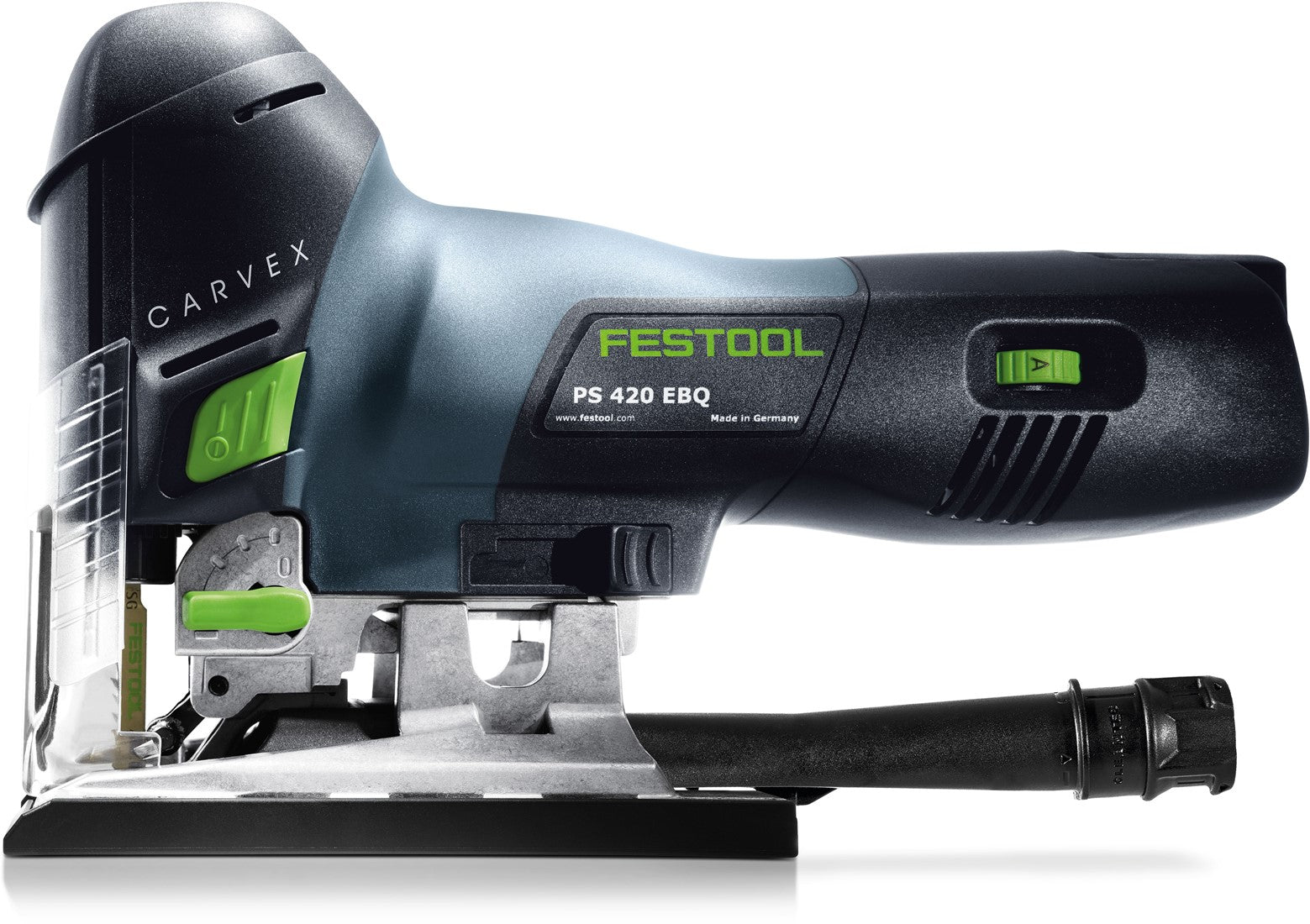

Festool PS 420 EBQ-Plus Jigsaw - 576175

Festool PS 420 EBQ-Plus Jigsaw

Ergonomic, light and handy – with the CARVEX you can work comfortably in any position. And fast at 3,800 strokes per minute for unprecedented power and unparalleled cornering. When it comes to power, the CARVEX has set the tone from the start. But everyone knows: Power only becomes valuable if it can be converted with extraordinary precision. And that is precisely what we have focused on. With a newly designed saw shaft and saw blade guide. For an accuracy never achieved before. The parallel adjustable guide clamps, which as a third guide consistently keep the saw blade in track, guarantee utmost precision. This means that it remains a typical CARVEX at its core – but the first test already makes it clear: it is the new generation CARVEX PS 420.

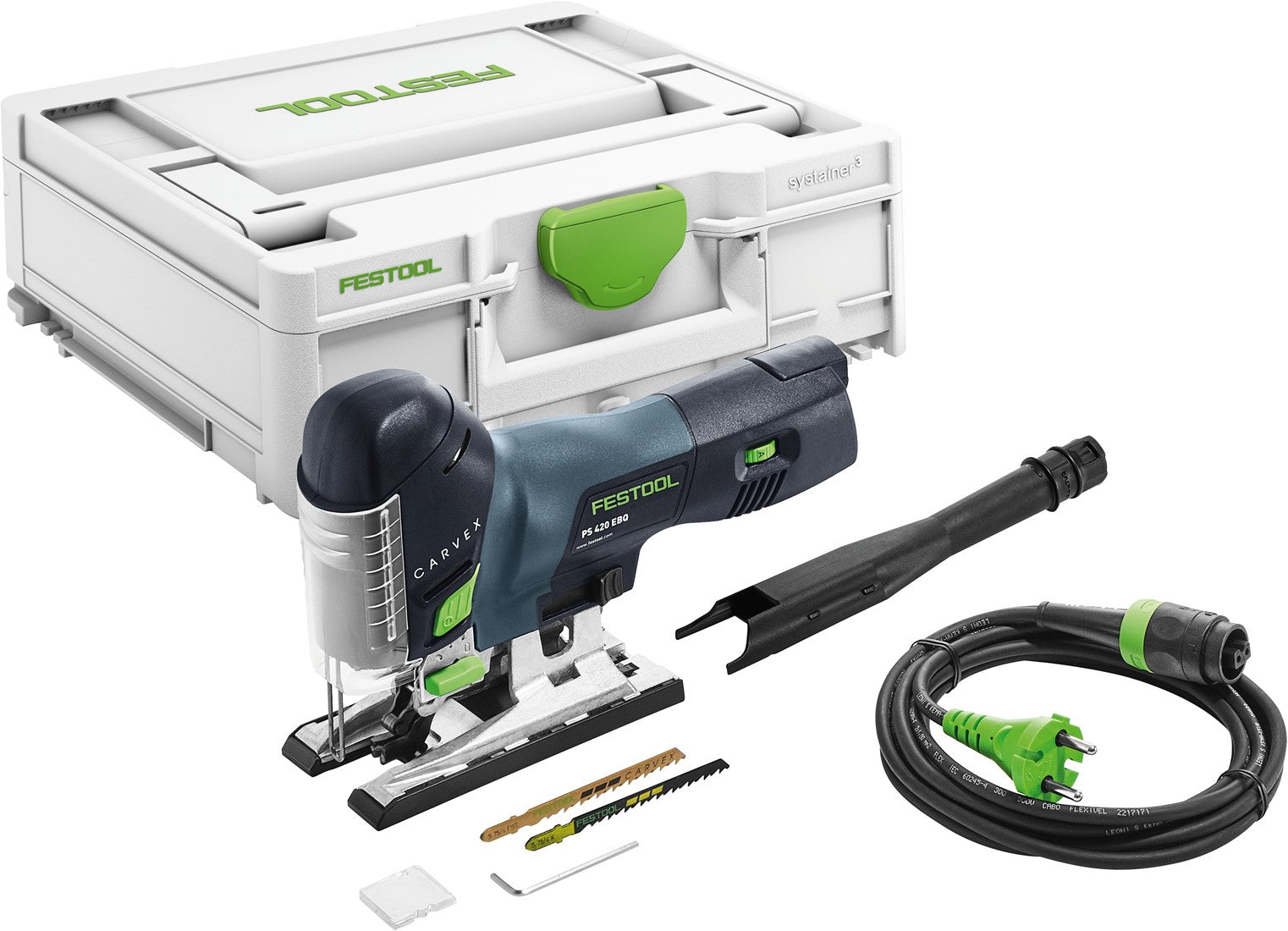

Scope of supply

• 1 piece Festool PS 420 EBQ jigsaw
• 1 piece splinter guard
• 1 pcs fine-toothed saw blade
• 1 piece universal saw blade
• Festool SYS3 M 137 Systainer³

• Excellent cornering behavior due to triple saw blade guide and torsion-free pendulum rod
• Easy operation due to soft grip and ergonomic design
• On and off switch on both sides, accessible from any grip position
• Change soles, bases and saw blades quickly and without tools
• Clearly visible marking line due to LED lighting and strong extraction
• Machine length can be shortened by swiveling plug it cable
• High pulling force for fast sawing progress
• Power-saving low weight: 1.9 kg

• Work without interruption: The plug it cable, which can be swiveled through 90°, shortens the machine length by 10 cm, making the CARVEX significantly more manoeuvrable.
• Powerful : 3,800 strokes per minute provide enormous power, supported by the EC-TEC motor – energy efficient, extremely powerful and very durable.
• Absolutely at the right angle and precisely : The new saw shaft and the parallel adjustable carbide plates as a third saw blade guide guarantee exact cuts at the right angle.
• Precise sawing on the marked line : The LED lighting visually stops the saw blade, the dust extraction and blowing function of the CARVEX keep a clear view of the marked line.
• Tool-free saw blade change : Working according to the material. This leads to faster and better results, more efficient use of the material and the saw blades last considerably longer. That is why the Festool system is designed for short set-up times: quick and easy saw blade changes with one hand.

Center of gravity application

• Cut-outs for sinks and hobs
• Fit-in work for furniture, kitchens and interior construction
• Saw circles and curves
• Shortening cover strips
• Cutting workpieces to size
• Shorten beams
• Saw cuts from below

Technical data

• Power consumption 550 W
• Number of strokes 1 500 - 3 800 min?¹
• Pendulum stroke adjustment in steps 4.00
• Cutting depth wood 120.00 mm
• Cutting depth NE metal 20.00 mm
• Cutting depth steel (soft) 10.00 mm
• Weight 1.90 kg
• Drive type Mains power
