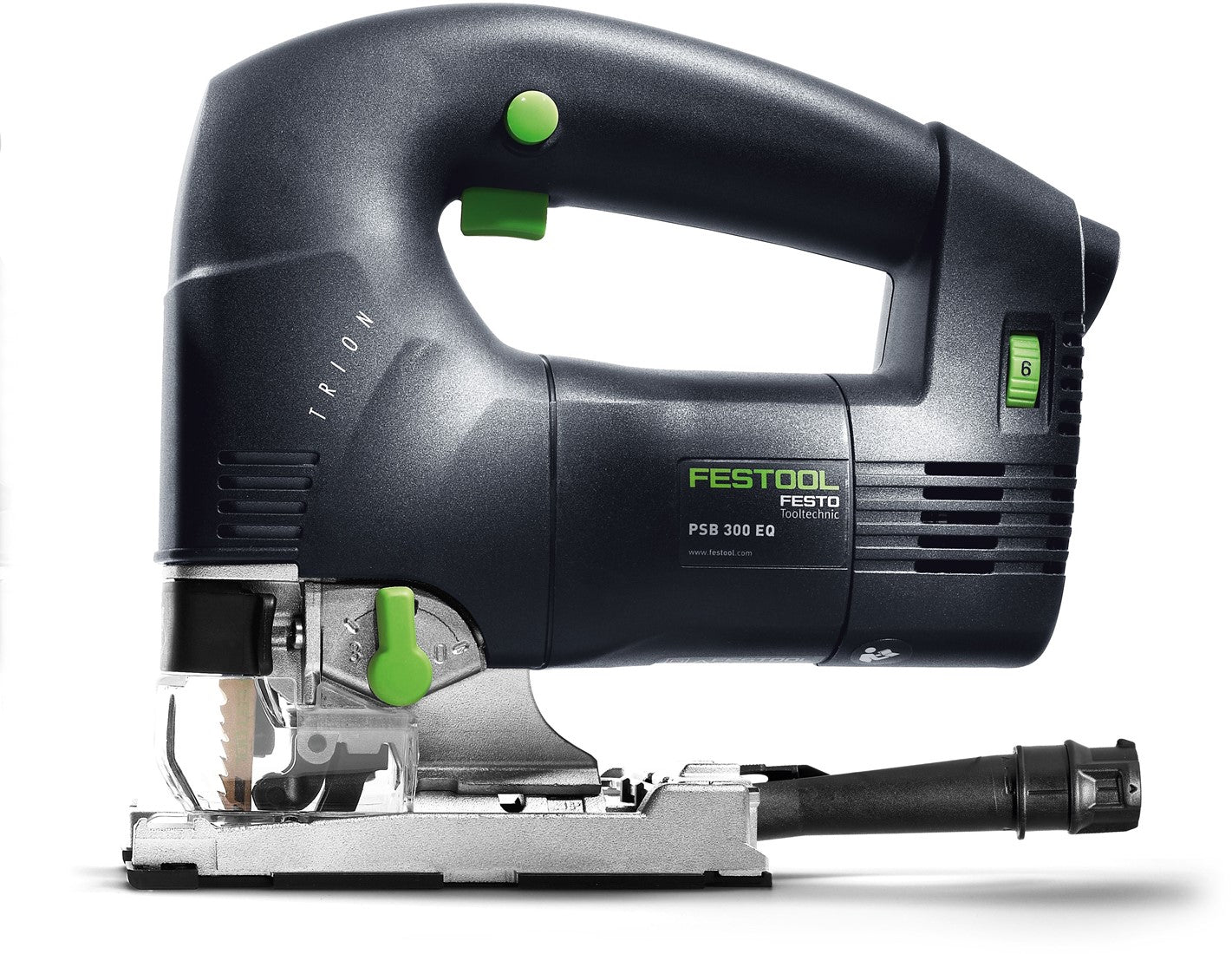

Festool PSB 300 EQ-Plus Jigsaw Machine - 576047

Festool PSB 300 EQ-Plus Jigsaw Machine

The TRION pendulum jigsaw – thoroughly robust, powerful and ergonomic. The patented triple saw blade guide with parallel adjustable carbide plates ensures absolute precision. The splinter protection saves after-treatment. And with perfect ergonomics and an ideal center of gravity, the TRION can also be guided easily and safely when operated with one hand.

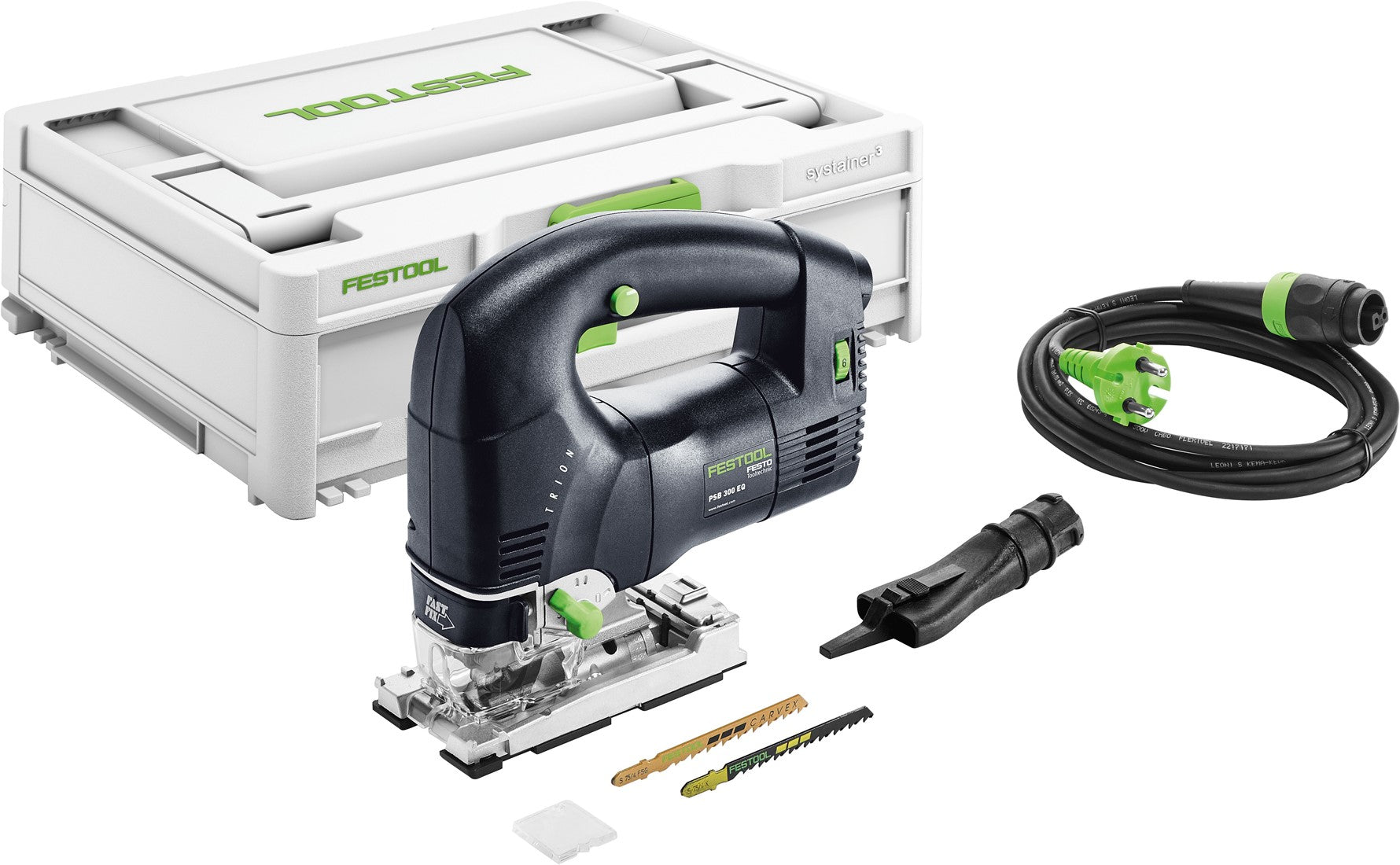

Scope of supply

• 1 piece Festool PSB 300 EQ-Plus Pendulum Jigsaw
• 2 pieces Festool saw blade (1x fine-toothed 1x universal)
• 1 piece Festool splinter guard
• Festool SYS3 M 137 Systainer³

Features and strengths

• Superior service life due to high-quality drive components
• One-handed operation without fatigue due to favorable center of gravity
• FastFix quick change system for easy saw blade changes
• High cutting capacity (MMC electronics)
• Precise right angle cuts thanks to the patented triple saw blade guide
• No after-treatment due to improved splinter protection for splinter-free cuts

Product details

• Powerful, always precise : The TRION PSB 300 convinces with its fast cutting progress and superior precision. The patented triple saw blade guide with parallel adjustable carbide plates ensures precise cuts at the right angle. And by simply rotating the table, miter cuts can be made with ease.
• Smoother running : The high-performance motor provides a high tractive force and at the same time has a smooth running and a long service life.
• Shaped in the hand: Thanks to the flat motor and the compact handle, the tool fits perfectly in the hand – and can be guided optimally.
• Splinter-free cuts : No time-consuming reworking thanks to the simple but effective splinter protection for splinter-free cuts. And this even with veneered surfaces. Typical Festool: Precision down to the last detail.

Center of gravity application

• Cut-outs for sinks and hobs
• Fit-in work for furniture, kitchens and interior construction
• Saw circles and curves
• Shortening cover strips
• Cutting workpieces to size
• Shorten beams

Technical data

• Power consumption: 720W
• Number of strokes: 1 000 - 2 900 min?¹
• Pendulum stroke adjustment in steps: 4.00
• Miter: 0 - 45 °
• Cutting depth wood: 120.00 mm
• Cutting depth NE metal: 20.00 mm
• Cutting depth steel (soft): 10.00 mm
• Weight: 2.40 kg
• Sawing chipboard: Uncertainty (vibration) K: 2.00 m/s²
• Sawing chipboard: A-rated sound power level LWA: 94.00 dB(A)
• A-rated sound pressure level LpA: 83.00 dB(A)
• Sawing chipboard: Total avg. vibration value ah: 5.50 m/s²
• Sawing chipboard: Uncertainty (noise) K: 3.00 dB
