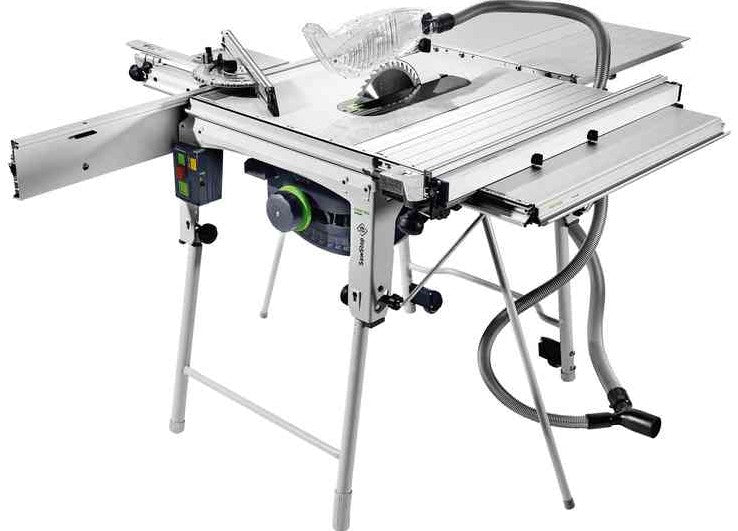

Festool TKS 80 EBS-Set Saw table 575828

Festool TKS 80 EBS-Set Saw table

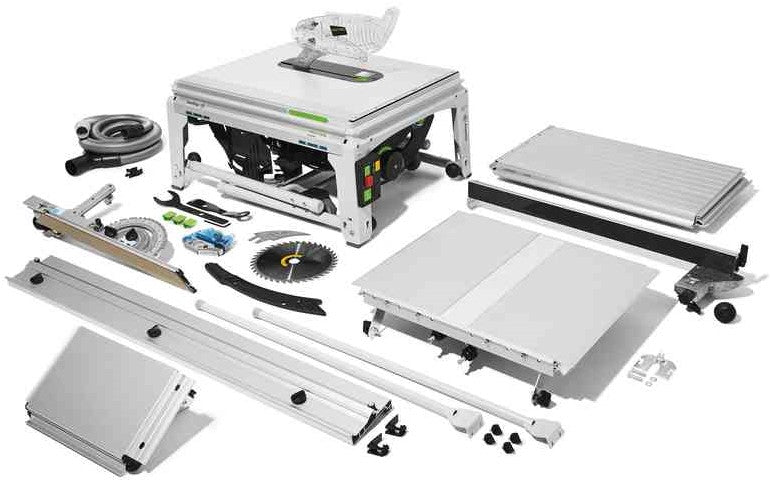

Scope of supply

• 1 piece Festool TKS 80 saw table
• 1 pcs suction set
• 1 pcs angle stop
• 1 length stop LA TKS 80
• 1 piece sliding table ST TKS 80
• 1 piece widening VB TKS 80
• 1 piece desire VL TKS 80
• 1 piece Festool HW universal saw blade W40
• 1 piece Allen key SW 5
• 1 pcs pattern
• 3 pieces of splinter guard
• 1 piece wrench SW 23
• 1 piece wrench SW 50
• 1 pcs safety push stick
• Supplied in box

Characteristics

• More safety: The sensitive sensors of the integrated SawStop technology guarantee safe cutting in non-conductive materials. If necessary, the SawStop technology can also be switched off
• Flexible: 80 mm cutting height, extendable work surface, length and angle stop guarantee effortless work, even with large workpieces
• Splinter-free cuts: fewer splinters at the top of the material for miter longitudinal cuts by turning the saw blade to the left
• Better health: extractor hood with CLEANTEC extraction sleeve guarantees low-dust working and a clear view of the workpiece
• Space-saving: tool compartment on the side provides optimal storage space for saw blade, cartridge and push stick

Product highlights

• Integrated SawStop technology : the risk of severe cuts is reduced.
• Smart cartridge : A cartridge relaxes a tensioned spring and shoots an aluminum block into the saw blade. After relaxing, the cartridge can be replaced in no time at all.
• Sensitive sensors : upon contact with the skin, the saw blade stops within 5 milliseconds and disappears into the blade.
• Cuts accurate to the millimeter and degree : to be used with locking points and fine adjustment for trimming and longitudinal cuts.

Center of gravity application

• Trimming cuts up to a width of 820 mm with sliding table, at 20 mm cutting depth
• Longitudinal cutting up to a cutting height of 80 mm and a width of 600 mm with extension
• Angle cuts from -2° to 47° thanks to the swiveling saw blade

Technical data

• Power consumption: 2 200 W
• No-load speed: 1700 - 3500 min?¹
• Saw blade diameter: 254.00 mm
• Cutting height 90°/45°: 80/56 mm
• Miter: -2 / 47 °
• Table dimensions: 720 x 850 mm
• Folded table height: 385.00 mm
• Table height unfolded: 900.00 mm
• Dust extraction connection Ø: 27/36 mm
• Weight: 48.00 kg
