Festool TS 55 RQ-Plus Plunge Circular Saw Machine 576006

Festool TS 55 RQ-Plus Plunge circular saw

One of the best features is the ultra-flat and completely smooth housing due to the inwardly placed suction struts. This design enables sawing close to the edges with a minimum wall clearance of 12 mm. Optionally equipped with viewing window or splinter guard. The TS 55 R guarantees even more control and perfect results. Another special detail: the newly developed riving knife. This already runs ahead of the saw blade, guarantees safety and also allows you to accurately start in existing cuts. Other special features are the extensive angle adjustment options and the double display for the cutting depth adjustment. A guarantee for even more precision and easy handling. In short, the best plunge-cut saw we've ever built.

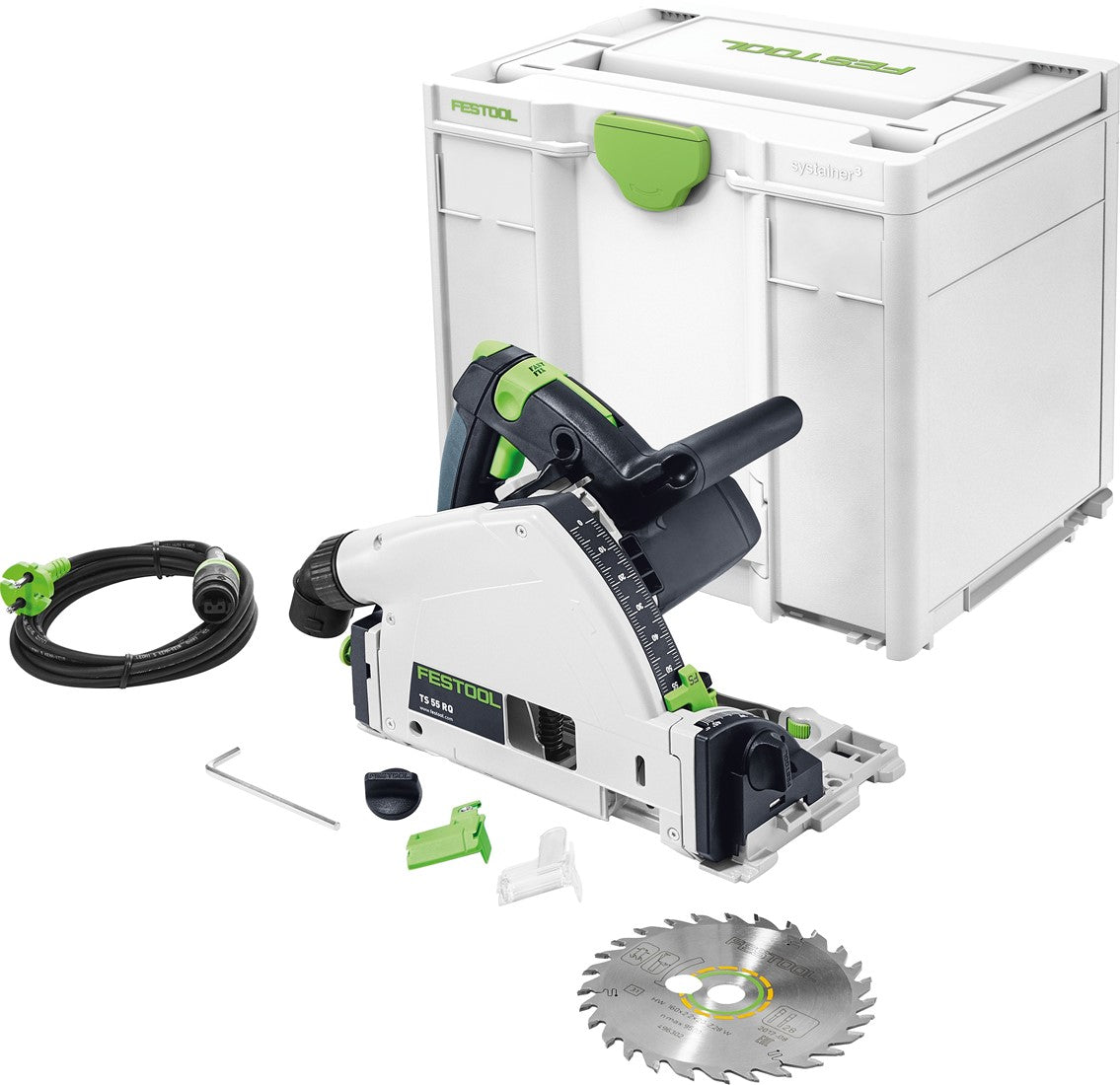

Scope of delivery

• 1 piece Festool TS 55 RQ Plunge circular saw
• 1 piece Festool HW universal saw blade W28
• 1 piece Allen key SW 5
• 1 piece viewing window
• 1 piece Festool splinter guard
• 1 piece Festool Systainer SYS3 M 337

Characteristics

• Extremely flexible due to flat housing for minimum distance to the wall (12 mm)
• Angle adjustment with undercut function from -1° to 47°
• Good view of the marking line and saw blade through the transparent and sliding viewing window
• Spring-loaded riving knife for safe working and easy insertion into an existing joint
• The Festool TS 55 RQ-Plus does not have variable speed, the Festool TS 55 REBQ-Plus does

Product highlights

• Highest cutting quality: for high-quality work results : If you want clean, splinter-free cuts, work with the guide rail. Fixed with the screw terminals, the TS 55 R runs on the guide rail absolutely without play.
• Sawing splinter-free on both sides: With the insertable splinter guard in combination with the guide rail, you can even ensure splinter-free cutting on both sides. Advantage: no reworking and significantly less residual material of the workpiece.
• Robust lightweight : Due to the segments and the ribs, the magnesium die-cast plate is not only tear-resistant, but also stable and robust. And that with a low total weight.

Center of gravity application

• Precise plunge cuts up to a material thickness of 55 mm
• Perfect fit of interior doors - guide rail with plunge-cut saw
• Making expansion joints in parquet floors and creating shadow joints
• Sawing sheet material
• Sawing and processing gypsum fibreboards

Technical data

• Power consumption: 1,050W
• No-load speed: 6,500 rpm¹
• Saw blade diameter: 160.00 mm
• Angle range: -1 - 47°
• Cutting depth: 0 - 55mm
• Cutting depth at 45°: 43mm
• Dust extraction connection Ø: 27/36mm
• Weight: 4.40kg
• Angle range up to: 47.00°
• Angle range of: -1.00°
• Dust extraction connection Ø min.: 27.00 mm
• Dust extraction connection Ø max.: 36.00 mm
• Min. cutting depth: 0.00 mm
• Cutting depth max.: 55.00 mm
• Cutting depth 45° max.: 43.00 mm
• Sawing wood: Total avg. vibration value ah: 2.50 m/s²
• Sawing wood: A-rated sound pressure level LpA: 90.00 dB(A)
• Sawing wood: Uncertainty (noise) K: 3.00 dB
• Sawing wood: A-rated sound power level LWA: 101.00 dB(A)
• Sawing wood: Uncertainty (vibration) K: 1.50 m/s²
• Sawing metal: A-rated sound pressure level LpA: 90.00 dB(A)
• Cutting metal: Overall average. vibration value ah: 2.50 m/s²
• Sawing metal: Uncertainty (vibration) K: 1.50 m/s²
• Sawing metal: A-rated sound power level LWA: 101.00 dB(A)
• Sawing metal: Uncertainty (noise) K: 3.00 dB
