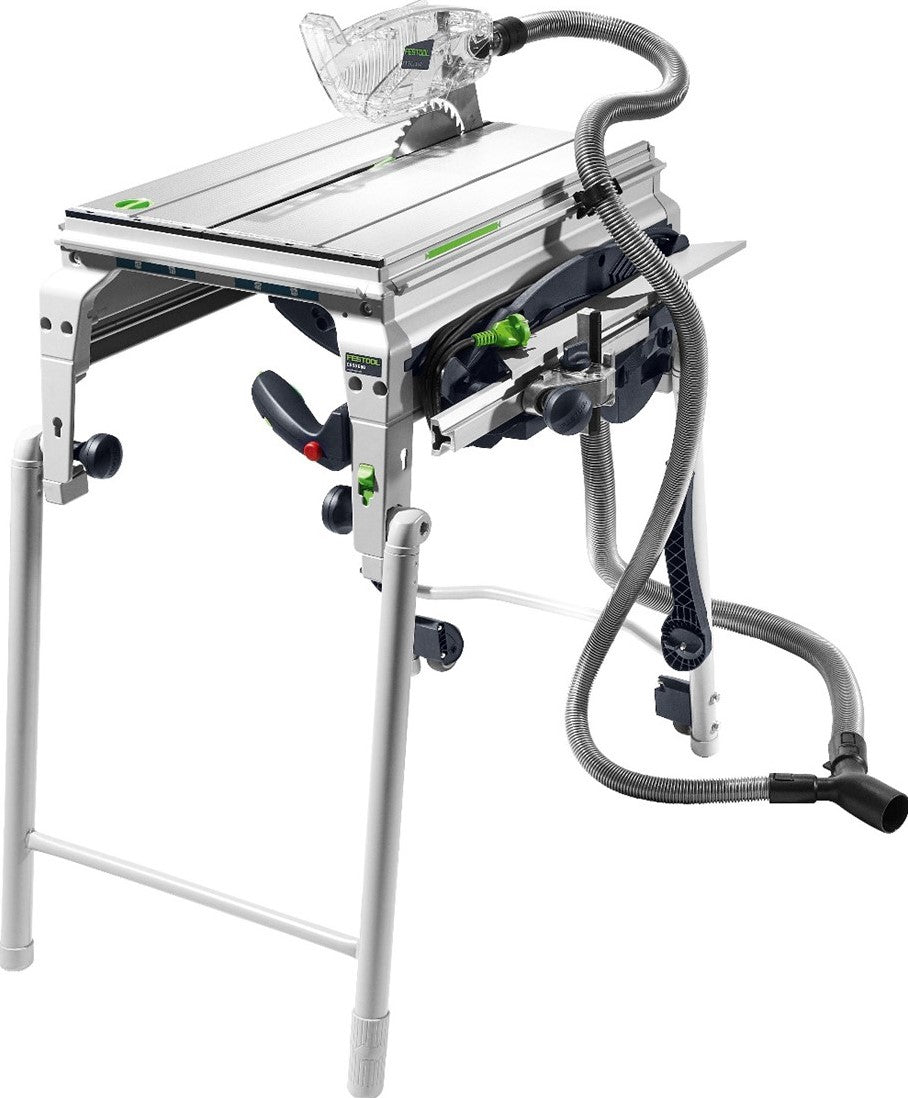

Festool Pull-/Cut Saw CS 50 EBG PRECISIO 574765

Festool Pull/Cut Saw CS 50 EBG PRECISIO

Scope of supply

• 1 piece Festool CS 50 EBG saw table
• 1 piece HW universal saw blade W32
• 1 pcs angle stop
• 1 pcs folding legs
• 3 pieces of splinter guard
• 1 pcs suction set
• 1 pcs safety push stick
• 1 pcs accessory storage compartment
• 1 piece support with transport wheels
• 1 piece Allen key SW 6
• Supplied in box

Characteristics

• FastFix saw blade change without tools
• Multifunctional pull handle: one handle, all functions in one hand
• Quick changeover from longitudinal to transverse cut with the angle stop
• Splinter-resistant on both sides thanks to the running splinter guard
• Circumferential V-groove for inserting the angle stop
• Can be expanded as a saw station with extensive accessories
• Saw blade box (sold separately): Saw blades and splinter guard always within reach

Product highlights

• Both sides with splinter-free cuts: The moving splinter guard ensures the highest quality in the result: This means that you can also achieve splinter-free cuts on both sides.
• Tool-free saw blade change: Replacing the saw blade with FastFix makes it easier to use the right blade for the right material. Because the right blade is installed very quickly.
• Easy to transport: low weight and integrated folding legs: The CS 50 is easy to transport and can be set up in no time. Including easy change of working height.
• Always work precisely, even in miter cuts: angle cuts from -2° to 47° can be set quickly and easily with the CS 50 - thanks to the convenient operating elements.
• Groove in saw table: to secure workpieces using quick-release clamps and to prevent them from slipping.
• MMC Electronic Digital: Processor-controlled power electronics „Multi Material Control with adjustable and constant speed and temperature monitoring for material-specific work.
• FastFix: facilitates tool changes when routing, sawing, planing, sanding, drilling and screwdriving.
• CLEANTEC: Standard connection (27/36/50 mm) for dust extraction protects people and the environment.
• Quick brake: For safe working when sawing.
• Splinter guard: the patented splinter guard for low-splinter sawing on both sides.

Center of gravity application

• Trimming cuts up to 830 mm wide thanks to the sliding table
• For 45° trimming cuts up to 830 mm width
• Sawing in the longitudinal direction up to a cutting height of 52 mm
• Angle cuts from -2° to 47° thanks to the swiveling saw blade
• Concealed cuts thanks to the retractable riving knife - without extension

Technical data

• No-load speed: 1 600 4 200 min?¹
• Power consumption: 1 200 W
• Weight: 21.90 kg
• Miter: 0 (-2) ° - 45 (+47) °
• Saw blade diameter: 190.00 mm
• Cutting height 90°/45°: 0 - 52/0 - 37 mm
• Table dimensions: 585 x 400 mm
• Folded table height: 316.00 mm
• Table height unfolded: 900.00 mm
• Cutting height: 52 mm
• Dust extraction connection Ø: 27/36 mm

Sound and vibration values

• Freewheel: Overall Avg. vibration value ah: 2.50 m/s ²
• Freewheel: Uncertainty (noise) K: 3.00 dB
• Freewheel: Uncertainty (vibration) K: 1.50 m/s ²
• Coasting: A-rated sound pressure level LpA: 84.00 dB(A)
• Coasting: A-rated sound power level LWA: 97.00 dB(A)
• Sawing: Uncertainty (vibration) K: 1.50 m/s ²
• Sawing: A-rated sound pressure level LpA: 90.00 dB(A)
• Sawing: A-rated sound power level LWA: 103.00 dB(A)
• Saws: Overall avg. vibration value ah: 2.50 m/s ²
• Sawing: Uncertainty (noise) K: 3.00 dB
