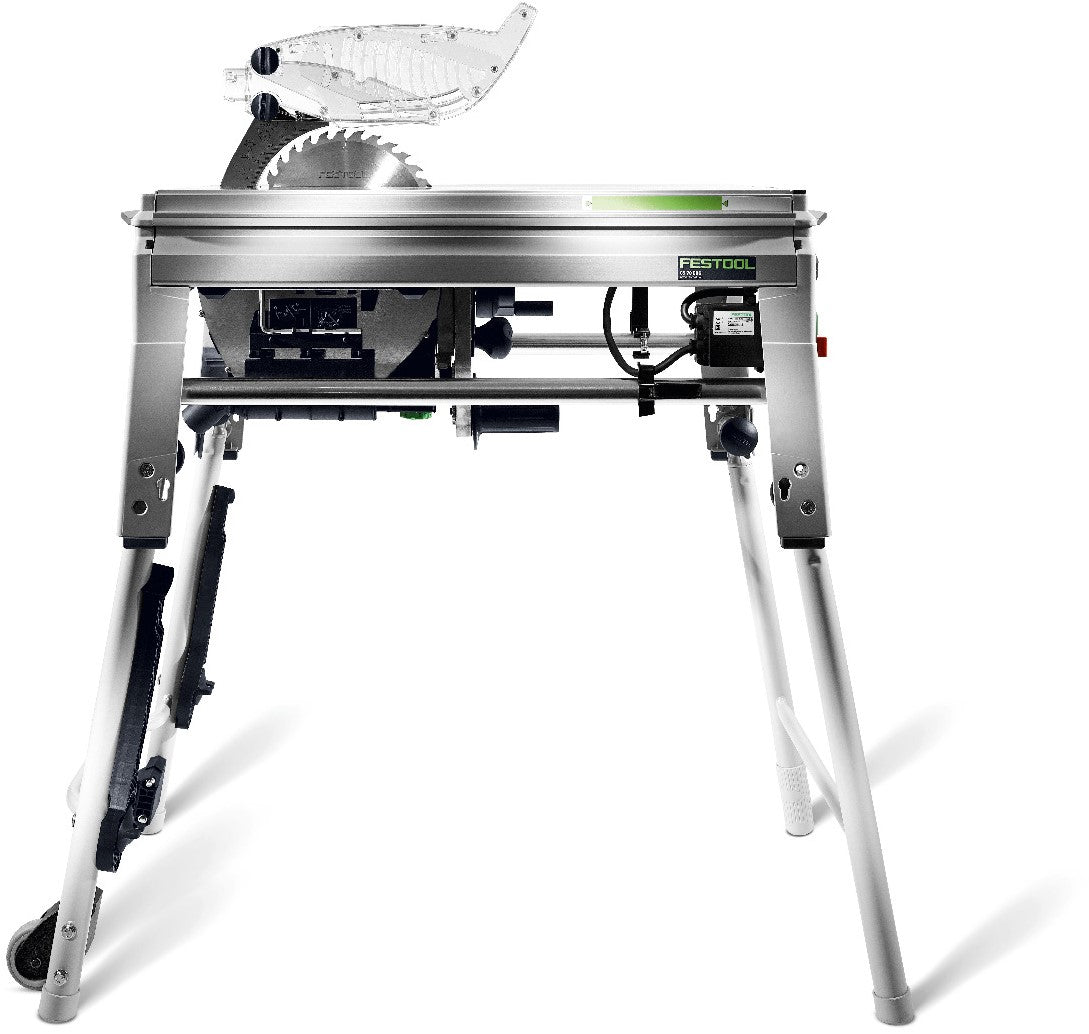

Festool CS 70 EBG Pull/Cut Saw PRECISIO 574776

Festool CS 70 EBG Pull/Cut Saw PRECISIO

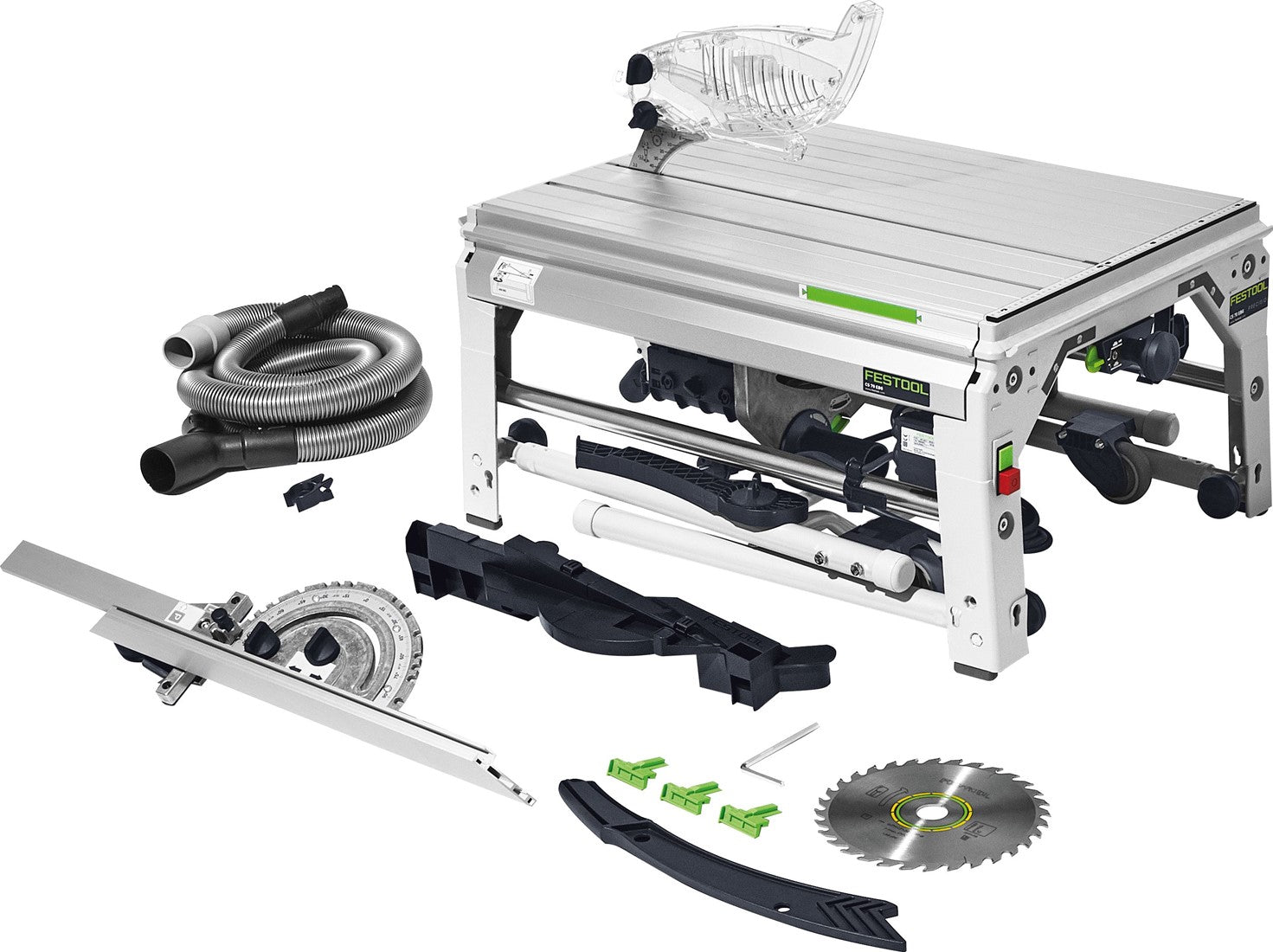

Scope of supply

• 1 piece Festool CS 70 sawing table
• 1 piece HW universal saw blade W32
• 3 pieces of splinter guard
• 1 pcs angle stop
• 1 pcs suction set
• 1 pcs safety push stick
• 1 pcs accessory storage compartment
• 1 piece support with transport wheels
• 1 piece Allen key SW 6
• Supplied in box

Characteristics

• Powerful work thanks to the 2200 Watt motor
• 70 mm cutting depth for even more application options
• quick changeover from longitudinal to transverse cut with the angle stop
• Splinter-resistant on both sides thanks to the running splinter guard
• Clear and optimally arranged operating elements
• Circumferential V-groove for inserting the angle stop
• Can be expanded as a saw station with extensive accessories

Product highlights

• Mobile and stationary: With its extensive system accessories, the CS 70 can be expanded into a fully-fledged sawing station without much effort. In this way, even larger trimming cuts above the normal dimensions can be carried out.
• Both sides with splinter-free cuts: The movable splinter guard ensures the highest quality in the result: This means that you can also achieve splinter-free cuts on both sides.
• Extremely robust: Thanks to the dust-free encapsulated motor, the CS 70 is protected against dust and dirt on the construction site or workshop. And the air filter prevents, for example, aluminum chips from entering the engine and damaging it.
• Easy to transport: Despite its size, the CS 70 can be easily transported and set up in an instant. The folding legs and the low weight make it possible. Including easy change of working height.
• For particularly wide cuts: The CS 70 has a draw distance of 320 mm. With the right accessories, cross cuts up to a width of 650 mm and longitudinal cuts up to 680 mm are even possible.

Center of gravity application

• Trimming cuts up to 320 mm wide precisely and quickly by pulling the saw blade
• For 45° trimming cuts up to 226 mm width
• Sawing in the longitudinal direction up to a cutting height of 70 mm
• Angle cuts from -2° to 47° thanks to the swiveling saw blade
• Concealed cuts thanks to the retractable riving knife - without extension

Technical data

• No-load speed: 2 000 - 4 200 min?¹
• Power consumption: 2 100 W
• Weight: 37.00 kg
• Miter: 0 (-2) ° - 45 (+47) °
• Saw blade diameter: 225.00 mm
• Cutting height 90°/45°: 0 - 70/0 - 48 mm
• Table dimensions: 690 x 500 mm
• Folded table height: 375.00 mm
• Table height unfolded: 900.00 mm
• Dust extraction connection Ø:27/36 mm

Sound and vibration values

• Freewheel: Overall Avg. vibration value ah: 2.50 m/s ²
• Freewheel: Uncertainty (noise) K: 3.00 dB
• Freewheel: Uncertainty (vibration) K: 1.50 m/s ²
• Coasting: A-rated sound pressure level LpA: 78.00 dB(A)
• Coasting: A-rated sound power level LWA: 91.00 dB(A)
• Sawing: Uncertainty (vibration) K: 1.50 m/s ²
• Sawing: A-rated sound pressure level LpA: 90.00 dB(A)
• Sawing: A-rated sound power level LWA: 103.00 dB(A)
• Saws: Overall avg. vibration value ah: 2.50 m/s ²
• Sawing: Uncertainty (noise) K: 3.00 dB
