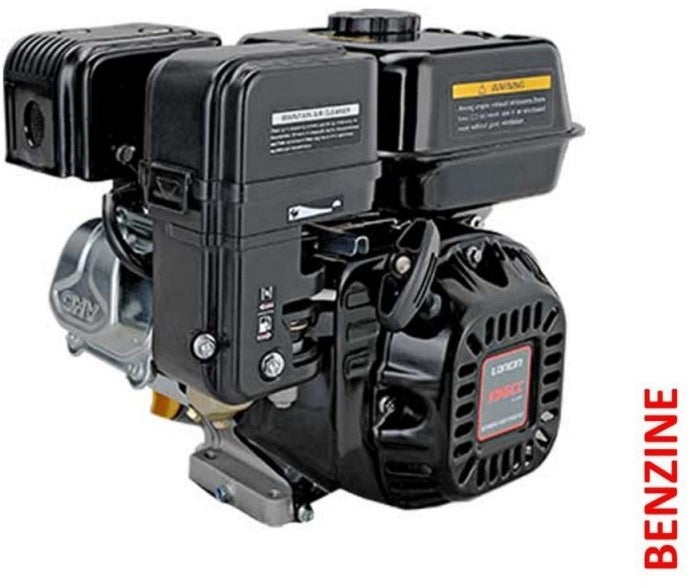

Loncin engine G200FA 5.5HP

Loncin engine G200FA 5.5 HP

The G200FA is a 5.5 hp Loncin motor with an axle size of 20 mm. The engine is suitable for intensive use. Loncin motors are strong and reliable. Loncin motors are suitable for intensive use. Loncin engines are strong and reliable due to, among other things, the following important ones

Characteristics:

• Reinforced crankshaft
• Connecting rod, intake and exhaust valve
• Ball bearings
• Hand start mechanism and tight valve springs
• High quality cylinder bush
• Valve guides
• Heat resistant barriers
• head gaskets
• Air filter system and aluminum castings
• Emissions according to Euro 2 Norm

Also available for this engine is an electric starter (this means electronic starting) or an oil bath clutch.

Technical data:

• Engine type: Air-cooled 1-cyl. 4-
• stroke OHV petrol engine
• max. power: 5.5 hp
• Cylinder capacity: 196 cm3
• Motor manufacturer: Loncin (3 year warranty!)
• Tank capacity: 3.6 litres
• Fuel type: Euro unleaded petrol
• Crankshaft diameter: Ø 19.05mm
• M8 x 1.25 internal thread (with keyway)
• Starting system: pull starter
• Electric start: No
• Speed: 3600rpm
• Compression ratio: 8:5:1 Bore x Stroke: 68 x 54mm
• Ignition: TCI Net.

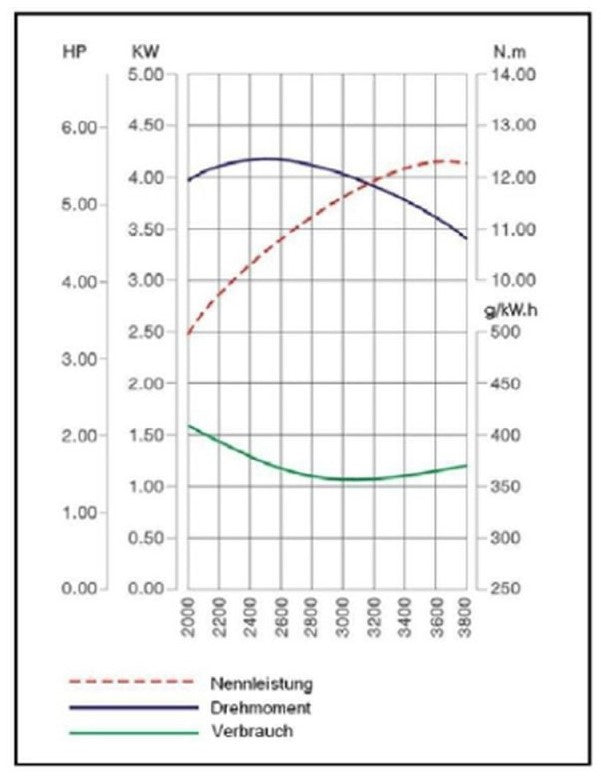

• Torque: 12.4 Nm / 2500 rpm
• Direct Injection: No
• Sound level LWA: 70 dB
• (A)Engine oil capacity: 0.6 liters
• Direction of rotation: Counterclockwise
• Weight 16 Kg
• Dimensions (LxWxH): 376 x 312 x 325mm

Motor suitable for Lumag RP75, RP700PRO, RP110HP, RP1100PRO, RPi11, RPi13
