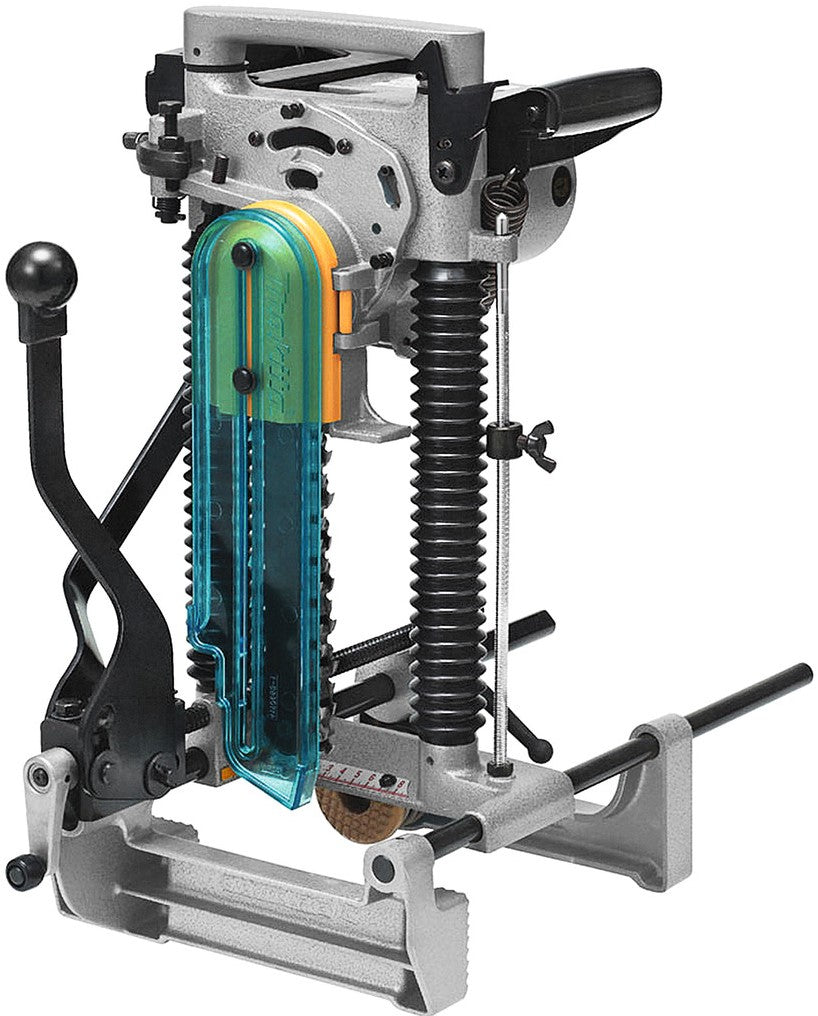

Makita 7104L Chain Cutter 1140W 230V

Makita 7104L Chain Cutter 1140W 230V

Scope of supply

• 1 piece Makita 7104L Chain Cutter
• 1 piece Milling chain 16.5 mm A-16570
• 1 piece Spanner 13-17 mm 781204-0
• 1 pcs Chain oil 100 ml 182229-1
• 1 pcs Pour Spout 242012-9

Special characteristics

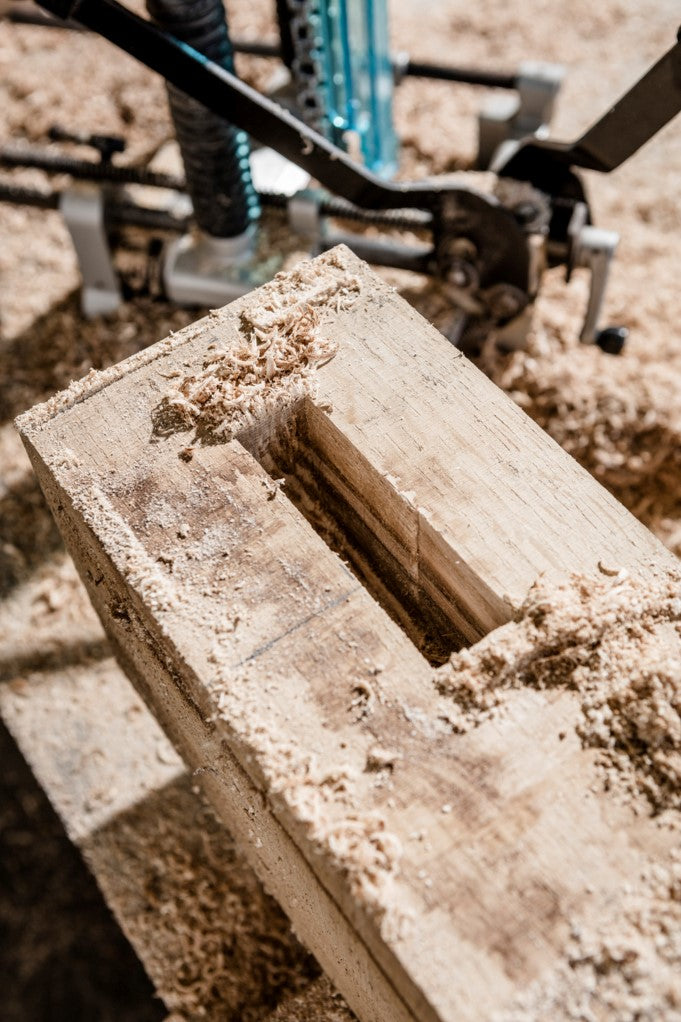

• Ideal for mortise and tenon joints in heavy wood constructions, such as trusses, chalets and carports.
• For fast and precise milling of 155 mm deep mortise holes.
• Integrated tension clamp suitable for beams up to 308 mm.
• Can mill 130 mm in the longitudinal direction without moving the machine, thanks to adjustable sword blade.
• Easy to move due to its relative light weight (17 kg).
• Machine must be connected to a grounded socket.

Technical data

• Nominal power consumption (P1)1140 Watt
• No-load speed max. 3200 rpm
• Chain speed no load50 m/s
• Maximum immersion depth155 mm
• Hole width17-30 mm
• Hole length54-130mm
• Dimensions (L x W x H) 512 x 298 x 513 mm
• Weight without cable (EPTA 01/2003) 17.3 kg
• Sound pressure level (K) 3 dB(A)
• Chain speed 5 m/sec
• max. cap. milling depth 155 mm
• max. hole length (longitudinal direction) 130 mm
• Volts (voltage) 230 V
• Workpiece width 80 - 308 mm
