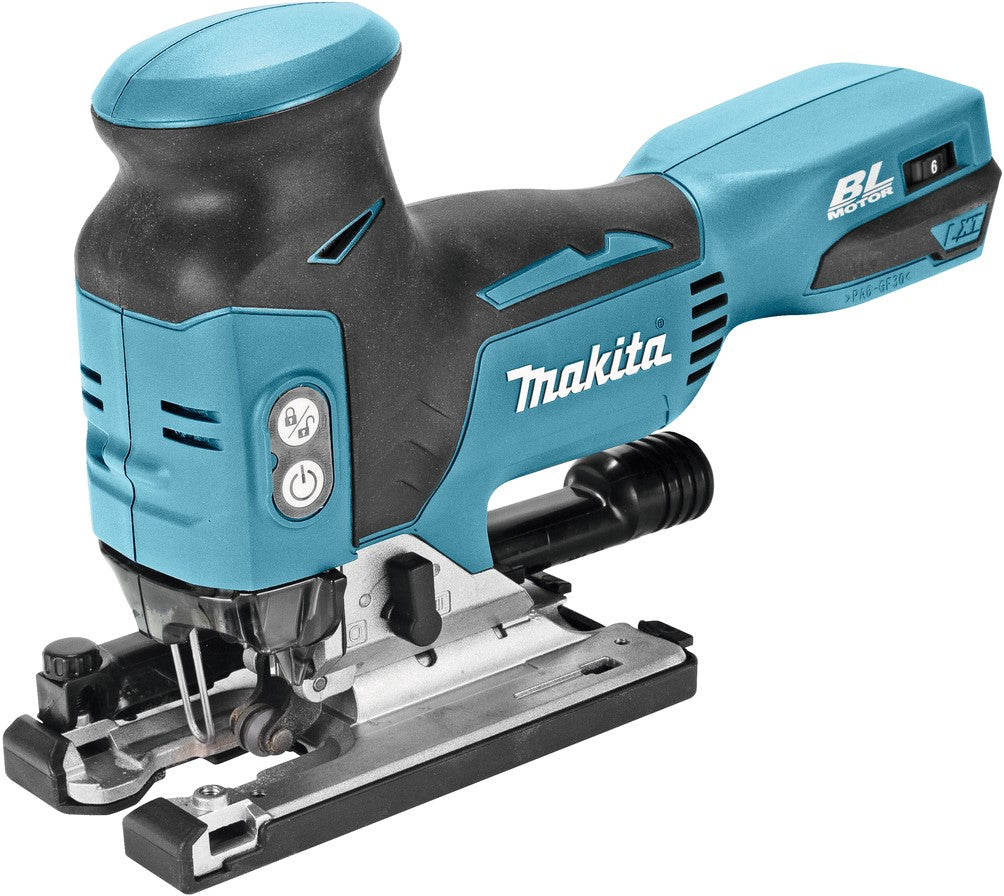

Makita DJV181Z Cordless Jigsaw 18V Basic Body

Makita DJV181Z Jigsaw 18V Basic Body

Scope of supply

• 1 pieceExtraction adapter 22x19mm
• 1 piece Jigsaw M+A 52mm T118A
• 1 piece Jigsaw wood 76mm B10
• 1 piece Jigsaw wood 70mm BR13
• 1 pcs Allen key 4.0mm
• 1 pcs. Slide plate

Special characteristics

• efficient work in wood, metal, plastic and rubber thanks to variable speed control (rotary knob).
• Complete with constant electronics: cuts easier and gives a nicer cut.
• Due to its design very manoeuvrable, finer finishing and extremely suitable for working upside down.
• Improved, durable dust extraction directly connected to all Makita vacuum cleaners.
• Equipped with an energy-efficient brushless motor.
• Precise sawing result due to unique square saw shaft so that the saw does not rotate.
• Equipped with soft start for more accurate starting at the cutting line.
• Equipped with soft no load: the speeds increase as soon as the saw comes into contact with the material.
• High working comfort thanks to excellent machine balance, light weight and ergonomic handle.
• Easy one-handed saw change: via click system and without tools.
• Optimal visibility and clean cutting line due to cooling air ducts that blow away sawdust.
• Equipped with pendulum positions for fine to coarse finishing.
• Equipped with a Lock On / Lock Off button for continuous and extra safe working.

Technical data

• max. saw cap. wood 0 °: 135 mm
• max. saw cap. metal 0°: 10mm
• max. saw cap. aluminum 0°: 20mm
• Volts (voltage): 18 V
• Engine type: BL engine
• Dim. lxwxh: 298x77x189 mm
• Stroke length: 26mm
• Pendulum positions: 3
• Var. speed control (rotary knob): yes
• Built-in lighting: yes
• Soft grip: yes
• Saw blade change without tools: yes
• Vibration ah sawing wood: 6.5 m/s ²
• Vibration (K) sawing wood: 1.5 m/s ²
• Vibration ah metal cutting: 5.0 m/s ²
• Vibration (K) metal cutting: 1.5 m/s ²
• Sound pressure level (LpA): 78 dB(A)
• Sound pressure level (K): 3 dB(A)
• Number of strokes: 800 - 3500 min-1
• Battery protection: yes
• Weight with BL1830 battery: 2.5 kg
• Tilt L/R: 45 - 45 º
• Saw blade length: 76 - 180 mm
• Sole material: Aluminium
• Soft start: yes
