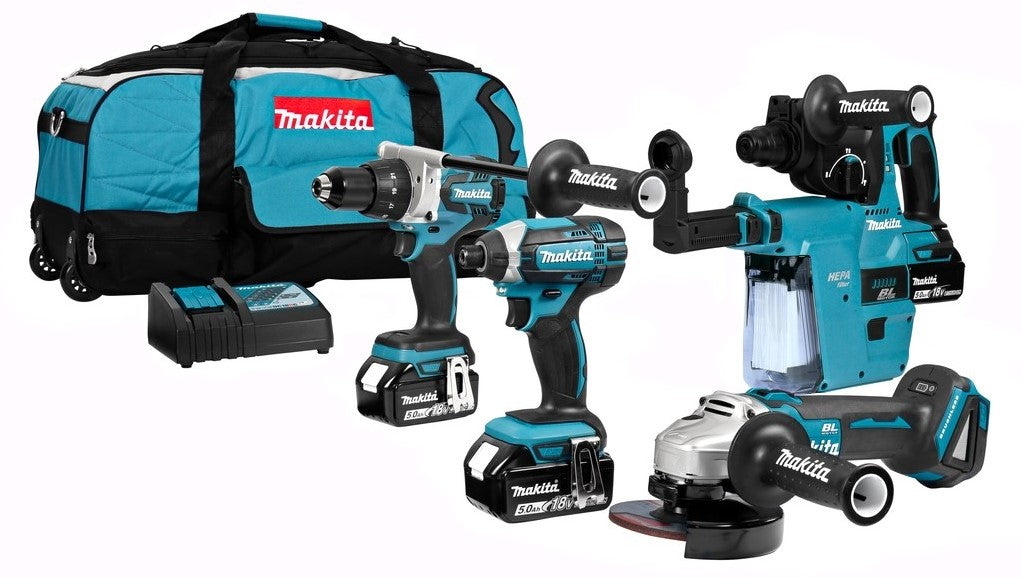

Makita DLX4079TV1 Battery Combi Set 18V 5.0Ah Li-ion

Scope of supply:

• 1 piece Drill/screwdriver 18V DDF481Z - brushless
• 1 piece SDS-plus Combi hammer 18V DHR242Z - brushless
• 1 pcs. Impact screwdriver 18V DTD152Z
• 1 piece Angle grinder 18V 125mm DGA504Z - brushless
• 1 pcs Charger DC18RC
• 3 pieces Battery BL1850B 18V 5.0Ah
• 1 piece Dust extractor unit
• 1 piece Filter element 242/243-DX01/02
• 1 pcs Trolley bag

Special features DDF481Z:

• Higher productivity due to new battery motor and increased speed (2,000 min-1) compared to its predecessor
• 2 functions, 2 gears, gentle tightening torque 60Nm, 2.6 kilograms
• Compact and lightweight due to brushless motor.
• Now 6 mm shorter than its predecessor
• Adjustable slip clutch is set higher, allowing larger screws to sink better into wood
• Equipped with the best possible ergonomic handle for more comfortable working
• Equipped with two LEDs for screwdriving and drilling without shading the drill head
• The improved dust and splash water protection ensures reliable operation, even in bad weather
• Standard equipped with fast charger DC18RC, so full Lithium-Ion batteries in just 22 minutes
• Additional available!
• Battery protector for even higher protection against bad weather and harsh conditions

Technical data DDF481Z:

• Drill head 1.5 - 13 mm
• Cap. drilling in wood 76 mm
• Cap. drilling in metal 13 mm
• Machine voltage 18V
• Motor type BL brushless
• Battery type Li-Ion
• Amp Hour 5.0 Ah
• Dim. lxwxh 225x79x259 mm
• Soft grip yes
• Overload protection yes
• Deep discharge protection yes
• Shaft lock yes
• Var. speed control (switch) yes
• Built-in lighting yes
• Engine brake yes
• Tightening torque soft 60 Nm
• Tightening torque hard 115 Nm
• Number of adjustable tightening torques 21
• Number of mechanical revolutions 2
• No-load speed L 0 - 550 min-1
• No-load speed H 0 - 2100 min-1
• Sound pressure level 70 dB(A) K
• Sound pressure level 3 dB(A)
• Vibration ah 2.5 m/s² K
• Vibration ah 1.5 m/s²
• Vibration ah drilling 2.5 m/s²
• K Vibration ah drilling 1.5 m/s²
• Battery charge indicator yes
• Aluminum gear housing yes

Special features DHR242Z:

• Light and compact machine with three functions: drilling, hammer drilling and breaking (light).
• Ideal combination hammer for holes up to 14 mm, but can be used up to 24 mm in concrete.
• High productivity through the use of an energy efficient brushless motor.
• The fit of the machine makes it easy and pleasant to drill in the ceiling, floor and wall.
• Durable machine due to protection against overload, overheating and deep discharge of the battery.
• The drill head suitable for SDS-PLUS drills has been extended for less play.
• Rubber vibration-absorbing suspension for unimpeded power supply in all conditions.
• To be used with Dust extraction system DX01 (195898-9) with HEPA filter. Supplied as standard.

Technical data DHR242Z:

• Cap. drilling in concrete 4 - 24 mm
• Ideal drilling range (concrete) 4 - 16 mm
• Striking force (EPTA) 2.0 joules
• Machine voltage 18V
• Motor type BL motor
• Dim. lxwxh 460x90x294 mm
• Suitable for SDS-PLUS drills and chisels yes
• Var. speed control (switch) yes
• (Safety) slip clutch yes
• Soft grip yes
• Number of adjustable chisel positions 40
• Cap. drilling in wood 26 mm
• Cap. drilling in metal 13 mm
• Sound pressure level (LpA) 90 dB(A)
• Sound pressure level (K) 3 dB(A)
• Vibration ah hammer drilling in concrete 13.5 m/s²
• Vibration (K) hammer drilling in concrete 1.5 m/s²
• Vibration ah chiseling with side handle 10.5 m/s²
• Vibration (K) chiseling with side handle 1.5 m/s²
• Connection/recording SDS-PLUS
• Number of mechanical revolutions 1
• Number of strokes (level 1) 0 - 4700 min-1
• Battery protection yes
• Cap. core drills 32 - 65 mm
• Cap. crown drill 35 - 54 mm
• Electric brake yes
• Weight with battery 3.3 kg
• Turning left, right, yes
• Smart Impact Technology yes
• No-load speed (speed 1) 0 - 950 min-1
• Vibration (K) drilling in metal 1.5 m/s²
• Vibration ah drilling in metal 3.5 m/s²

Special features DTD152Z:

• Specialist in heavy duty connections (M10 - M16).
• Compact, fast machine.
• Maximum 165 Nm strong.
• Durable machine due to protection against overload, overheating and deep discharge of the battery.
• Well protected against dust and moisture due to unique construction.
• With built-in double lighting, which remains lit for 10-15 seconds after releasing the switch.
• This is useful for finding the next confirmation in poorly lit areas.

Technical data DTD152Z:

• Machine voltage 18V
• Motor type 4 pole
• Connection/recording 1/4" hexagon
• Var. speed control (switch) yes
• Turning left, right, yes
• Built-in lighting yes
• No-load speed (level 1) 0 - 2900 min-1
• Number of strokes (level 1) 0 - 3500 min-1
• max. torque (position 1) 165 Nm
• Screws metric thread (M) 4 - 8 mm
• Screws with wood thread (length) 22 - 125 mm
• Type electric motor FD31-10
• Soft grip yes
• Dim. lxwxh 137x79x238 mm
• Sound pressure level (LpA) 93 dB(A)
• Sound pressure level (K) 3 dB(A)
• Weight with battery 1.5 kg
• Confirm vibration ah up to max. 10.5 m/s²
• Confirm vibration (K) up to max. 1.5 m/s²
• Battery protection yes
• High tensile strength bolt (M) 5 - 12 mm
• Electric brake yes
• Weight with battery: ± 1500 grams
• Standard bolt (M) 5 - 16 mm

Special features DGA504Z:

• The machine automatically adjusts its speed under heavy load to maintain power.
• Light, but strong 125 mm cordless sharpener with very pleasant overload protection.
• Equipped with energy-efficient brushless motor for more work volume.
• Equipped with soft start and restart protection.
• Better protected against dust and moisture due to unique design on the inside and outside of the housing.
• Narrow and ergonomic handle for good grip and optimal control.
• Thanks to the increased efficiency of the brushless motor with electronic control, this 18 V machine offers almost the same performance as a corded model.
• Continuous efficient grinding thanks to automatic speed control.

Technical data DGA504Z:

• Soft grip: yes
• Soft start: yes
• Engine type: BL engine
• Restart protection: yes
• Connection/recording: M14
• Dim. lxwxh: 362x140x145 mm
• Grinding wheel diameter (max.): 125 mm
• Vibration ah sanding: 2.5 m/s²
• Machine voltage: 18V
• Shaft lock: yes
• Battery charge indicator: yes
• Sound pressure level (LpA): 79 dB(A)
• Sound pressure level (K): 3 dB(A)
• Vibration (K) surface grinding with AV handle: 1.5 m/s²
• Vibration (K) surface grinding: 1.5 m/s²
• Vibration ah surface grinding: 6.5 m/s²
• Vibration (K) sanding: 1.5 m/s²
• Vibration ah surface grinding with AV handle: 6.0 m/s²
• Vibration (K) sanding with AV handle: 1.5 m/s²
• Vibration ah sanding with AV handle: 2.5 m/s²
• No-load speed (position 1): 8500 rpm
• Pieces per package: 1 pc
• Battery protection: yes
• Weight with battery: 2.5 kg
