Makita DLX6078TJ1 Battery Combi Set LXT 18V 5.0Ah Li-Ion in Mbox

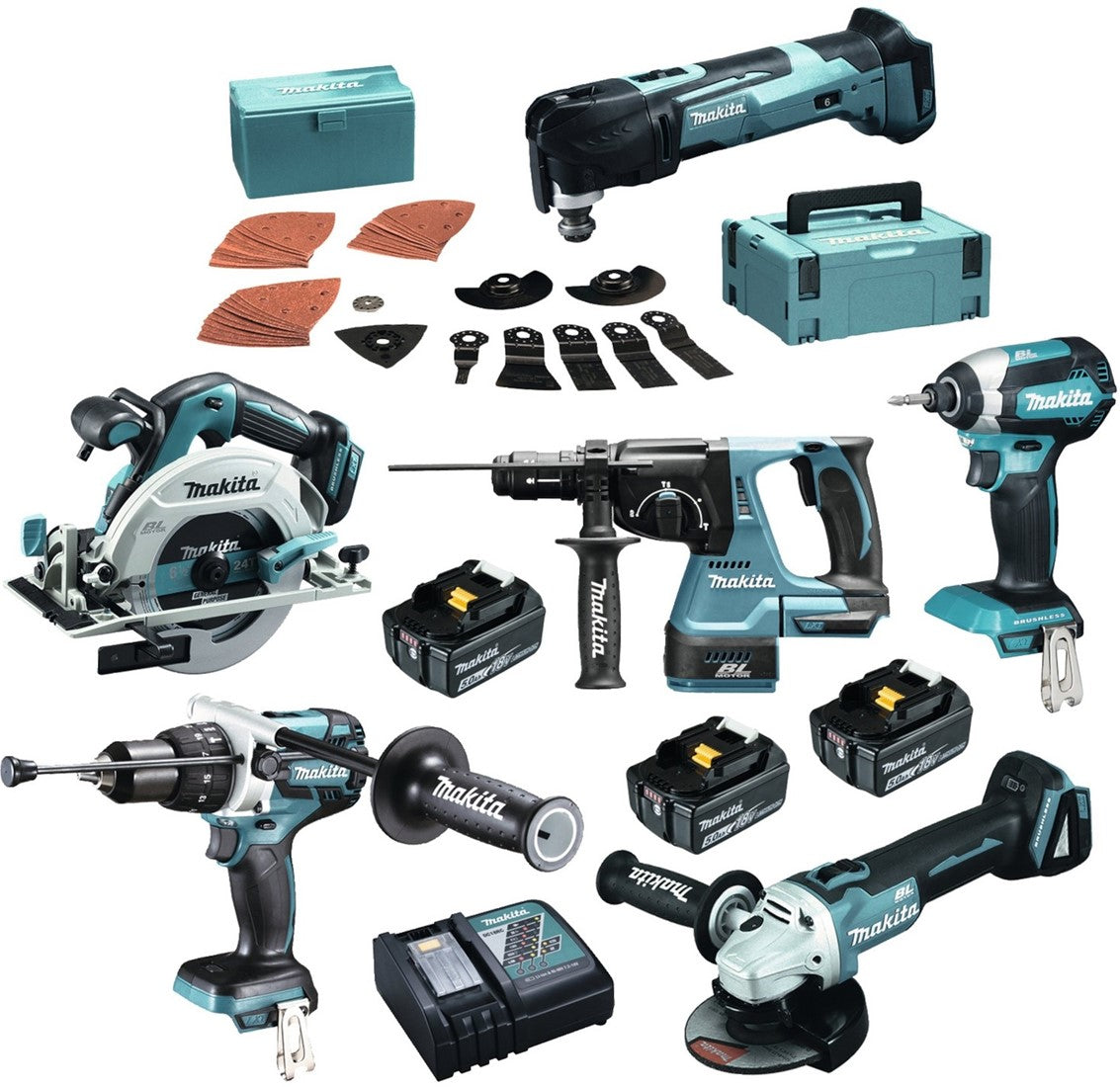

Scope of supply
- 1 piece Makita DHP481 impact drill/screwdriver
- 1 piece Makita DHR243 combi hammer
- 1 piece Makita DTM51 multi-tool
- 1 piece Makita DTD153 impact screwdriver
- 1 piece Makita DGA506 angle grinder
- 1 piece Makita DHS680 circular saw
- 3 pieces Makita BL1850B 18V 5.0Ah battery
- 1 piece Makita DC18RC fast charger
- 4 pieces Makita Mbox
Characteristics
- Very complete combi package with six powerful tools with 3 18V Li-Ion batteries and battery charger.
- DHP481: extremely powerful two-speed hammer drill and screw driver for the toughest drilling and screwdriving applications.
- DHR243: compact SDS+ combination hammer with three functions usable as a drill, rotary hammer, demolition hammer.
- DTM51: battery multi-tool LXT 18V, ideal as a problem solver for various construction and installation work where great mobility is required.
- DTD153: extremely compact and powerful impact screwdriver for various screwdriving and assembly work.
- DGA506: light, strong 125mm 18V cordless angle grinder for grinding work in various materials.
- Model DHS680 is a handy and precise circular saw with a cutting depth of 57mm.
- Supplied with three powerful 5.0Ah Li-Ion slide batteries, with electronic overload, overheating and deep discharge protection and self-cleaning contacts that guarantee optimal power transfer.
- The powerful battery charger determines an individual charging path depending on the battery condition and ensures a fully charged battery (5.0Ah) in just 45 minutes.
- Supplied in an Mbox, a sturdy stackable storage case in ABS with a locking system to connect several cases together.
Specifications DHP481 impact drill/screwdriver
- Cap. drilling in stone: 16 mm
- Cap. drilling in wood: 76 mm
- Cap. drilling in metal: 13 mm
- Drill Chuck: 1.5-13mm
- Tightening torques: 21
- Volts (voltage): 18 V
- Engine type: BL engine
- Var. speed control (switch): Yes
- Rotating left, right: Yes
- Number of mechanical revolutions: 2
- No-load speed (position 1): 0 - 550 min-1
- Number of strokes (level 1): 0 - 8250 min-1
- No-load speed (level 2): 0 - 2100 min-1
- Number of strokes (position 2): 0 - 31500 min-1
- Battery charge indicator: Yes
- Built-in lighting: Yes
- Soft Grip: Yes
- Aluminum gear housing: Yes
- Dim. lxwxh: 205x79x266 mm
- Sound pressure level (LpA): 85 dB(A)
- Sound pressure level (K): 3 dB(A)
- Vibration ah drilling in metal: 2.5 m/s ²
- Vibration (K) drilling in metal: 1.5 m/s ²
- Vibration ah impact drilling in stone: 6.5 m/s ²
- Vibration (K) impact drilling in stone: 1.5 m/s ²
- Weight with BL1815N battery: 2.4 kg
- Weight with BL1830 battery: 2.7 kg
- Weight with BL1840 battery: 2.7 kg
- Tightening torque soft / hard: 60 / 115 Nm
- Connection/mounting: 13 mm keyless chuck with spindle lock
- Battery protection: Yes
Specifications DHR243 combi hammer
- Ideal drilling range (concrete) 4 - 16 mm
- Striking force (EPTA) 2.0 joules
- Volts (voltage): 18 V
- Engine type: BL engine
- Dim. lxwxh: 482x88x288 mm
- Suitable for SDS-PLUS drills and chisels: yes
- Var. speed control (switch): yes
- (Safety) slip clutch: yes
- Soft grip: yes
- Interchangeable chuck: yes
- Chuck: 1.5 - 13.0mm
- Number of adjustable chisel positions: 40
- Cap. drilling in wood: 26 mm
- Cap. drilling in metal: 13 mm
- Weight with BL1830 battery: 3.4 kg
- Sound pressure level (LpA): 89 dB(A)
- Sound pressure level (K): 3 dB(A)
- Vibration ah hammer drilling in concrete: 13.0 m/s ²
- Vibration (K) hammer drilling in concrete: 1.5 m/s ²
- Vibration ah chiseling with side handle: 11.0 m/s ²
- Vibration (K) chiseling with side handle: 1.5 m/s ²
- Number of mechanical revolutions: 1
- Number of strokes (level 1): 0 - 4700 min-1
- Battery protection: yes
- Cap. core drills: 32 - 65 mm
- Cap. crown drill: 35 - 54 mm
- Concrete drill diameter: 4 - 24 mm
- Electric brake: yes
- Rotating left, right: yes
- No-load speed (position 1): 0 - 950 min-1
- Vibration (K) drilling in metal: 1.5 m/s ²
- Vibration ah drilling in metal: 2.5 m/s ²
Specifications DTM51 multi-tool
- Voltage: 18V
- Battery protection: Yes
- Dim. (LxWxH): 324x80x122mm
- Sound pressure level (K): 3 dB(A)
- Sound pressure level (LpA): 81 dB(A)
- Weight with BL1815 battery: 1.8 kg
- Weight with BL1815N battery: 1.8 kg
- Weight with BL1830 battery: 2.0 kg
- Weight with BL1840 battery: 2.0 kg
- Restart Protection: Yes
- Left/Right Oscillation Angle: 1.6°
- Oscillating movements: 6000 - 20000 rpm
- Soft Grip: Yes
- Soft start: Yes
- Motor type: 2 pole
- Var. speed control (rotary knob): Yes
- Vibration (K) sawing wood: 1.5 m/s ²
- Vibration (K) sanding metal: 1.5 m/s ²
- Vibration ah wood cutting: 7.0 m/s ²
- Vibration ah metal sanding: 3.0 m/s ²
- Saw blade change without tools: Yes
Specifications DTD153 impact driver
- Volts (voltage): 18 V
- Engine type: BL engine
- Connection/recording: 1/4 hex
- Var. speed control (switch): yes
- Rotating left, right: yes
- Built-in lighting: yes
- No-load speed (position 1): 0 - 3400 min-1
- Number of strokes (level 1): 0 - 3600 min-1
- max. torque (position 1): 170 Nm
- Screw metric thread (M): 4 - 8 mm
- Screw wood thread (length): 22 - 125 mm
- Soft grip: yes
- Dim. lxwxh: 126x79x238 mm
- Sound pressure level (LpA): 96 dB(A)
- Sound pressure level (K): 3 dB(A)
- Weight with BL1830 battery: 1.5 kg
- Vibration ah confirm to max.: 13 m/s ²
- Confirm vibration (K) to max.: 1.5 m/s ²
- Battery protection: yes
- High tensile strength bolt (M): 5 - 14 mm
- Electric brake: yes
- Standard bolt (M): 5 - 16 mm
Specifications DGA506 angle grinder
- Volts (voltage): 18 V
- Engine type: BL engine
- Grinding Wheel Diameter: 125mm
- No-load speed: 8500 min-1
- Connection/recording: M14
- Shaft lock: yes
- Soft grip: yes
- Restart protection: yes
- Dim. lxwxh: 362x140x151 mm
- Sound pressure level (LpA): 79 dB(A)
- Sound pressure level (K): 3 dB(A)
- Vibration ah surface grinding: 6.5 m/s ²
- Vibration (K) surface grinding: 1.5 m/s ²
- Vibration ah sanding: 2.5 m/s ²
- Vibration (K) sanding: 1.5 m/s ²
- Battery protection: yes
- Battery charge indicator: yes
- Electric brake: yes
- Soft start: yes
- Vibration (K) sanding with AV handle: 1.5 m/s ²
- Vibration (K) surface grinding with AV handle: 1.5 m/s ²
- Vibration ah sanding with AV handle: 2.5 m/s ²
- Vibration ah surface grinding with AV handle: 6.0 m/s ²
Specifications DHS680 circular saw
- max. saw cap. (height) 0 ° 57 mm
- max. saw cap. (height) 45° 41mm
- max. saw cap. 50° 37mm
- Volts (voltage) 18 V
- Motor type BL motor
- Dim. lxwxh 350x170x238 mm
- Saw blade diameter 165 mm
- No-load speed 5000 min-1
- Built-in lighting yes
- Shaft lock yes
- Sound pressure level (LpA) 83 dB(A)
- Sound pressure level (K) 3 dB(A)
- Vibration ah wood sawing 2.5 m/s ²
- Vibration (K) sawing wood 1.5 m/s ²
- Battery protection yes
- Battery charge indicator yes
- Axle hole saw blade 20 mm
- Automatic speed control yes
- Electric brake yes
- Tilt L/R 0 - 50 º
- Protective cap material Magnesium
- Sole material Magnesium
- Soft grip yes
- Soft start yes
- Cutting height 57 mm
