Makita DTW700ZJ Cordless Impact Wrench 18V Loose Body in Mbox

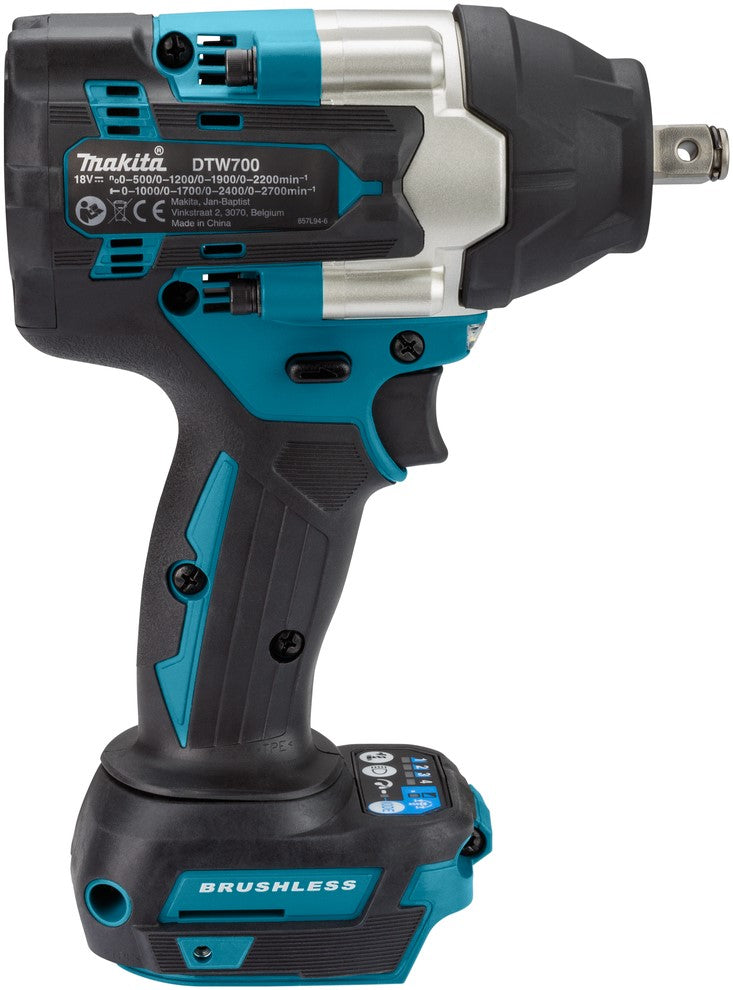

Makita DTW700ZJ Cordless Impact Wrench

Extensively adjustable impact wrenches for heavier connections. The DTW700 and DTW701 are the direct successor of the DTW450. With a maximum torque of 700 Nm, they are a lot more powerful, but the brushless motor also makes them much more compact and well-balanced, making them easy to handle. The new DTW700 is therefore also a clear next step in addition to the recently introduced DTW300. All these machines are extensively adjustable and are equipped with, among other things, 4 adjustable speeds to properly adjust the tightening torque to the work. With a maximum torque of 700 Nm, the DTW700 & DTW701 are strong enough for nuts and bolts from M14 to M24 (8.8). The DTW700 is equipped with ½” square connection with friction ring and hole for locking pin. The DTW701 is identical, only this machine is equipped with a ½” square connection with a spring-loaded locking pin.

Scope of supply

• 1 piece Makita DTW700 cordless impact wrench
• 1 pcs Screw M4X12 251314-2
• 1 piece Carrying hook 347723-2
• delivered in mbox

Features and strengths

• Impact wrench with 4 adjustable speeds for adjusting the torque to the workpiece.
• Equipped with ½” square connection with friction ring and hole for locking pin.
• 3 bolt positions: Prevents bolts from being overtightened and Auto stop mode when running in reverse.
• Auto stop mode when reversing. Machine stops automatically as soon as the bolt or nut has been loosened sufficiently or can continue to run at low speed.
• Equipped with variable speed control in the switch.
• Equipped with maximum speed function, when the switch is partially pressed, speed goes to maximum.
• Digitally adjustable: all-round machine for heavier connections, with wide range (M14-M24).
• Maximum 700 Nm strong.
• Relatively compact and well balanced, making it extremely easy to handle in difficult places.
• Durable, energy-efficient and maintenance-free brushless motor with electronic control.
• Durable thanks to protection against overload, overheating and deep discharge of the battery.
• With LED lighting for a better view of the work.

Technical data

• Platform: LXT 18V
• Connection/recording: 1/2 square
• Bolt/screw 4.6 metric: 10 - 30 mm
• Bolt/screw 8.8 metric: 8 - 24 mm
• Bolt/screw 10.9 metric: 6 - 22 mm
• Bolt/screw 12.9 metric: 6 - 20 mm
• max. torque (position 1): 150 Nm
• max. torque (position 2): 200 Nm
• max. torque (position 3): 320 Nm
• max. torque (position 4): 700 Nm
• max. disassembly torque: 1000 Nm
• Var. speed control (switch): yes
• Var. speed control (digital): yes
• Rotating left, right: yes
• Counterclockwise auto stop mode: yes
• Number of electric revolutions: 4
• No-load speed (position 1): 0 - 500
• No-load speed (position 2): 0 - 1200
• No-load speed (position 3): 0 - 1900
• No-load speed (position 4): 0 - 1900 min-1
• Number of strokes (position 1): 0 - 1000
• Number of strokes (position 2): 0 - 1700
• Number of strokes (position 3): 0 - 2400
• Number of strokes (position 4): 0 - 2700 min-1
• Volts (voltage): 18 V
• Engine type: BL engine
• Built-in lighting: yes
• Soft grip: yes
• Electric brake: yes
• Battery protection: yes
• Dim. LxWxH: 170x81x276 mm
• Confirm vibration ah to max.: 19.0 m/s²
• Confirm vibration (K) to max.: 2.0 m/s²
• Sound pressure level (LpA): 94 dB(A)
• Uncertainty (K) (LpA): 3 dB(A)
• Sound power level (LWA): 105 dB(A)
• Uncertainty (K) (LwA): 3 dB(A)
• Weight (EPTA): 1.98 kg
• Weight with low LXT 18 V battery: 2.3 kg
• Weight with high LXT 18 V battery: 2.7 kg
