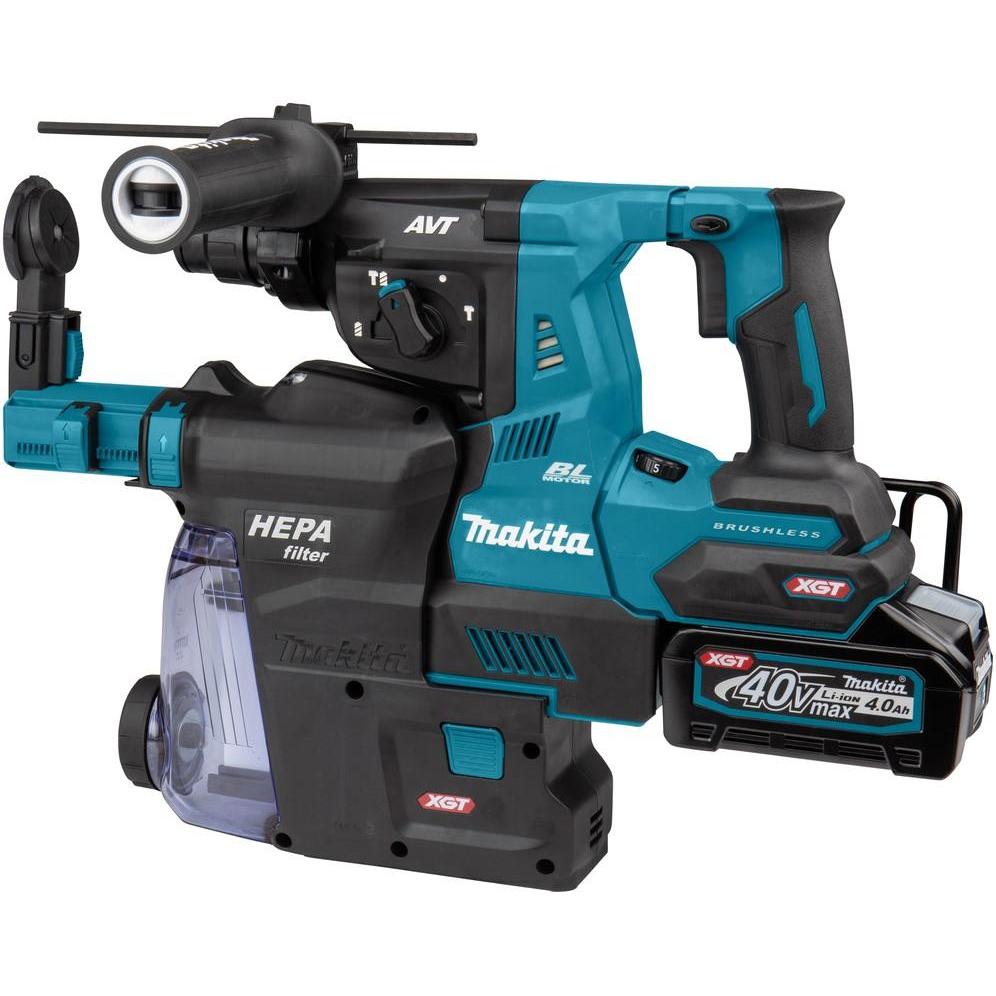

HR003GM202 Cordless Combi Hammer 40V Max 4.0Ah incl. Dust extraction in Mbox

The HR003G is an XGT 40V Max Combi Hammer equipped with a brushless motor, offering the same power and performance as its corded equivalent the HR2811FT. The HR003G is equipped with electronics for constant speed and variable speed control. The combi hammer is suitable for drilling, hammer drilling and light demolition work. Due to the Anti Vibration Technology (AVT), the HR003G has a low vibration level. This combi hammer is also suitable for outdoor use due to the eXtreme Protection Technology, which better protects the machine against the penetration of dust and moisture.

Features and strengths

• Equipped with efficient BL motor that offers the power and performance of corded equivalent HR2811FT.
• Equipped with electronics for constant speed and variable speed control.
• Ideal combination hammer for holes up to 16 mm, but can be used up to 28 mm in concrete.
• In combination with the dust extraction, the maximum drill length including SDS-PLUS connection is 260 mm.
• Very low vibration level due to Anti Vibration Technology (AVT), 7.0 m/s² when drilling in concrete (45% of HR2811FT).
• Combi hammer with three functions: drilling, hammer drilling and light demolition work.
• Striking power (2.9 Joules) is equivalent to the corded equivalent HR2811FT.
• With double LED lighting for better visibility at work.
• Suitable for outdoor use, better protected against the penetration of dust and moisture thanks to eXtreme Protection Technology (XPT).
• Communication between machine and battery maximizes machine operation and battery protection.
• Durable, energy-efficient and maintenance-free brushless motor with electronic control.

Technical data

• Platform: XGT 40V Max
• Connection/recording: SDS-PLUS
• Ideal drilling range (concrete): 4 - 16 mm
• Concrete drill diameter: 4 - 28 mm
• Cap. Crown drill: 35 - 54 mm
• Cap. diamond core drill: 32 - 65 mm
• Cap. drilling in metal: 13 mm
• Cap. drilling in wood: 32 mm
• Striking force (EPTA): 2.8 joules
• Number of adjustable chisel positions: 40
• Var. speed control (rotary knob): yes
• Var. speed control (switch): yes
• No-load speed (position 1): 0 - 980
• Number of strokes (level 1): 0 - 5000 min-1
• Volts (voltage): 36 V
• Engine type: BL engine
• Dim. LxWxH: 358x102x232 mm
• Constant speed: yes
• Number of mechanical revolutions: 1
• Rotating left, right: yes
• Battery protection: yes
• (Safety) slip clutch: yes
• Built-in lighting: yes
• Soft start: yes
• Electric brake: yes
• Soft grip: yes
• Sound pressure level (LpA): 93 dB(A)
• Uncertainty (K) (LpA): 3 dB(A)
• Sound power level (LWA): 104 dB(A)
• Uncertainty (K) (LwA): 3 dB(A)
• Vibration ah hammer drilling in concrete: 7.0 m/s²
• Vibration (K) hammer drilling in concrete: 1.5 m/s²
• Vibration ah drilling in metal: 2.5 m/s²
• Vibration (K) drilling in metal: 1.5 m/s²
• Vibration ah chiseling with side handle: 7.0 m/s²
• Vibration (K) chiseling with side handle: 1.5 m/s²
• Weight with XGT BL4025 battery: 6.3 kg
• Weight with XGT BL4040 battery: 6.6 kg
